WARRANTY
This instrument is warranted to be free from defects in material and workmanship. Any instrument
found defective within two years from the delivery date and returned to the factory with transportation
charges prepaid, will be repaired, adjusted, or replaced at no Charge to the original purchaser. This
warranty does not cover expandable items such as batteries or fuses. If the defect has been caused
by a misuse or abnormal Operation conditions, the guarantee does not apply.
SAFETY INFORMATION
The multimeter has been designed according to IEC-61010 concerning electronic measuring
instruments with a measurement category (CATII 250V) .
ELECTRICAL SYMBOLS
Alternating Current
Direct Current
Caution, risk of danger, refer to
the operating manual before use.
Caution, risk of electric shock.
Earth (ground) Terminal
Fuse
Conforms to European Union directives
The equipment is protected throughout by double insulation or reinforced insulation.
SW-Stahl und Werkzeugvertriebs GmbH
L
e
v
e
k r
u
s
r e
t S
a r
s
s
e
6
5
D
4 -
2
8
9
7
R
e
m
s
c
h
e
d i

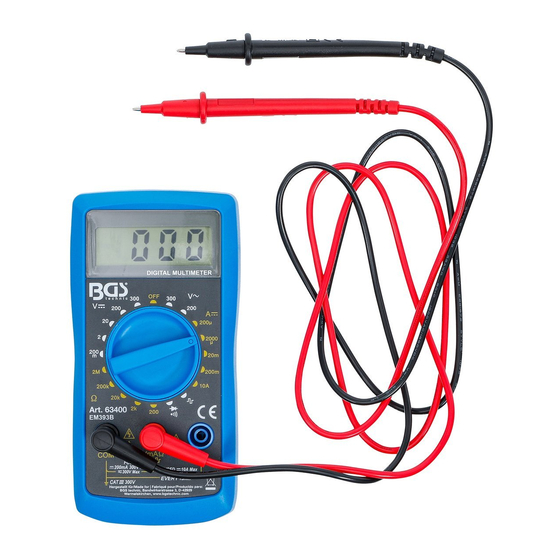

Digital Multimeter
Tel. +49 (0) 2191 / 46438-0
F
ax +49 (0) 2191 / 46438-40
- E
M
a
: l i
n i
o f
@
s
w
s
a t
l h
d .
e
Art. 63400
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BGS technic 63400
Summary of Contents for BGS technic 63400
- Page 1 Art. 63400 Digital Multimeter WARRANTY This instrument is warranted to be free from defects in material and workmanship. Any instrument found defective within two years from the delivery date and returned to the factory with transportation charges prepaid, will be repaired, adjusted, or replaced at no Charge to the original purchaser. This warranty does not cover expandable items such as batteries or fuses.
- Page 2 WARNING To avoid possible electric shock or personal injury, follow these guidelines: 1. Do not use the meter if it is damaged. Before you use the meter, inspect the case. Pay particular attention to the insulation surrounding the connectors, 2. Inspect the test leads for damaged insulation or exposed metal. Check the test leads for continuity.
- Page 3 GENERAL DESCRIPTION This series instruments are compact 3 1/2 digit digital multimeters for measuring DC and AC Voltage, DC Current, Resistance and testing Diode & Audible Continuity. Some of them also provide Temperature measurement or Battery test function, or can be used as a Signal generator (see the following table).
- Page 4 DC VOLTAGE RANGE RESOLUTION ACCURACY 200mV 100µV ±(0.5%+5) 2000mV ±(0.8%+5) 10mV 200V 100mV 250V ±(1.0%+5) AC VOLTAGE RANGE RESOLUTION ACCURACY 200V 100mV ±(1.2%+10) 250V Response: Average responding, calibrated in rms of a sine wave. Frequency Range: 45Hz~450Hz DC CURRENT RANGE RESOLUTION ACCURACY 200uA...
- Page 5 OPERATING INSTRUCTIONS DC VOLTAGE MEASUREMENT 1. Connect the red test lead to "VmAQ" jack and the black test lead to "COM" jack. 2. Set the Function/Range switch to desired V “ “ range. If the voltage to be measured is not known beforehand, set the range switch to the highest range and then turn it down range by range until satisfactory reading is obtained.
- Page 6 CONTINUITY TEST 1. Connect the red test lead to "VmAΩ" jack and the black test lead to "COM" jack. 2. Set the Function/Range switch to " •)))" range. 3. Connect the test leads to the two terminals of the circuit to be tested. If the resistance is lower than about 50Q, the built-in buzzer will sound.
- Page 7 Verification No.: 160500256SHA-V1 / EM393B Test Report No.: 160500256SHA-001 07.11.2016 Wermelskirchen, den ppa. Frank Schottke, Prokurist BGS technic KG, Bandwirkerstrasse 3, D-42929 Wermelskirchen SW-Stahl und Werkzeugvertriebs GmbH Tel. +49 (0) 2191 / 46438-0 ax +49 (0) 2191 / 46438-40 : l i...
