INTRODUCTION

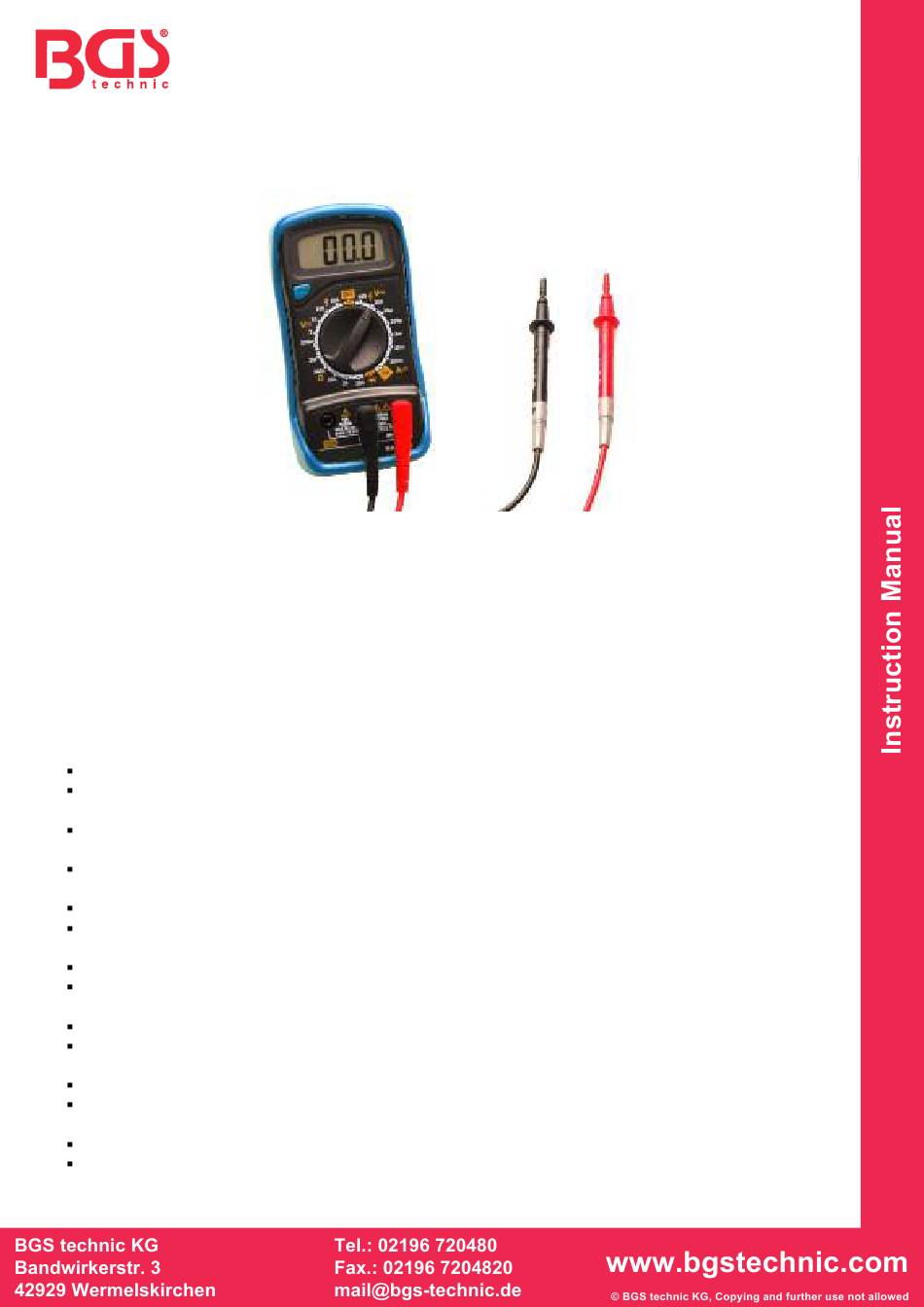

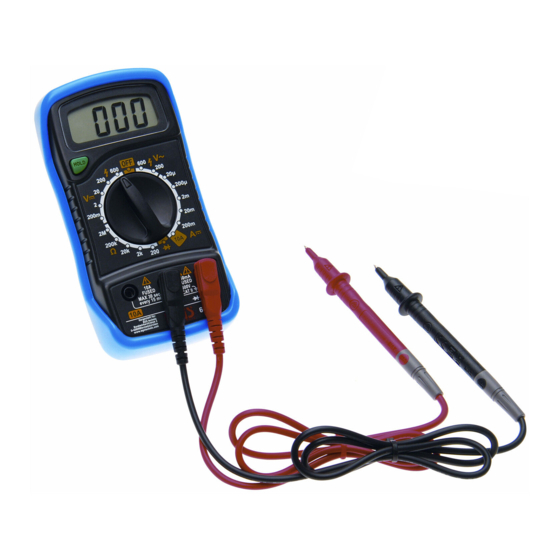

The instrument of this series is a small hand-held 3 1/2 digital multimeter feature stable, highly reliable
and anti-drop performance. It is provided with a LCD display of 15 mm height for clear reading.
The circuit design takes LSI double integral A/D converter as its core under the protection of an
overload protection circuit, making it a superior and handy instrument.
It can be used to measure DC and AC voltage, DC current, resistance and diodes test.
SAFETY INFORMATION
This meter has been designed according to IEC 61010 concerning electronic measuring instruments
with a measurement category (CAT II 600V) and pollution degree 2.
Warning
To avoid possible electric shock or personal injury, follow these guidelines:
Do not use the meter if it is damaged. Before you use the meter, inspect the case. Pay particular
attention to the insulation surrounding the connectors.
Inspect the test leads for damaged insulation or exposed metal. Check the test leads for
continuity. Replace damaged test leads before you use the meter.
Do not use the meter if it operates abnormally. Protection may be impaired. When in doubt, have
the meter serviced.
Do not operate the meter around explosive gas, vapor or dust.
Do not apply more than the rated voltage. As marked on the meter, between terminals or between
any terminal and earth ground.
Before use, verify the meter's operation by measuring a known voltage.
When measuring current, turn off circuit power before connecting the meter in the circuit.
Remember to place the meter in series with the circuit.
When servicing the meter, use only specified replacement parts.
Use caution when working with voltage above 30V ac rms, 42V peak, or 60V dc. Such voltages
pose a shock hazard.
When using the probes, keep your fingers behind the finger guards on the probes.
When making connections, connect the common test lead before you connect the live test lead.
When you disconnect test leads, disconnect the live test lead first.
Remove the test leads from the meter before you open the battery cover or the case.
Do not operate the meter with the battery cover or portions of the case removed or loosened.
SW-Stahl und Werkzeugvertriebs GmbH
L
e
v
e
k r
u
s
r e
t S
a r
s
s
e
6
5
D
4 -
2
8
9
7
R
e
m
s
c
h
e
d i
Digital Multimeter
Tel. +49 (0) 2191 / 46438-0
F
ax +49 (0) 2191 / 46438-40
- E
M
a
: l i
n i
o f
@
s
w
s
a t
l h
d .
e
Art. 63402
Advertisement
Table of Contents
Related Manuals for BGS technic 63402
Summary of Contents for BGS technic 63402
- Page 1 Art. 63402 Digital Multimeter INTRODUCTION The instrument of this series is a small hand-held 3 1/2 digital multimeter feature stable, highly reliable and anti-drop performance. It is provided with a LCD display of 15 mm height for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit, making it a superior and handy instrument.
- Page 2 To avoid false readings, which could lead to possible electric shock or personal injury, replace the battery as soon as the low battery indicator ( ) appears. Do not use the meter in a manner not specified by this manual or the safety features provided by the meter may be impaired.
- Page 3 FRONT PANEL 3 1/2 digital 15 mm height, 7 sections LED display Display Used to select the desired function or range as well as to turn on or off the Function / meter. To preserve battery life, set this switch to OFF position when the meter Range is not in use.
- Page 4 MAINTENANCE Before removing the rear cover, disconnect the probe from the circuit to be measured. To protect the internal circuit, replace the fuse with one of the same specification. Don't use the instrument until the rear cover is placed back and the screws are tightened. Clean the housing of instrument only with a wet rag dripped with little detergent but never chemical solution.
- Page 5 INSTRUCTIONS Notices before operation: 1. Plug the instrument in, check the 9V battery, if it is low, the symbol will display, requiring battery replacement; otherwise follow the steps below. 2. The besides the probe jack indicates that the input voltage or current should not exceed the specified limits to protect the internal circuit.
- Page 6 Alternating voltage measurement Place the red probe into the “ VΩmA " jack and the black one into the " COM " jack. Turn the switch to V~ range and connect the probe to the power supply or load to be measured. Notice If you do not know the measured voltage range in advance, set the function / range switch to the maximum range, and then...
- Page 7 Replacement of battery and fuse Under normal conditions, it is unnecessary to replace the fuse. Don't replace it until the probes are unplugged and the power is shut down. Take out the two screws of the rear cover to remove the housing! Warning To avoid electric shock make sure the probes are disconnected...
- Page 8 Attestation: N5A 150354539005 Test Report No: 64240140439101 Wermelskirchen, den 19.05.2015 ppa. Frank Schottke, Prokurist BGS technic KG, Bandwirkerstrasse 3, D-42929 Wermelskirchen SW-Stahl und Werkzeugvertriebs GmbH Tel. +49 (0) 2191 / 46438-0 ax +49 (0) 2191 / 46438-40 : l i...
