Aiphone IX-DVF-PR Installation Manual

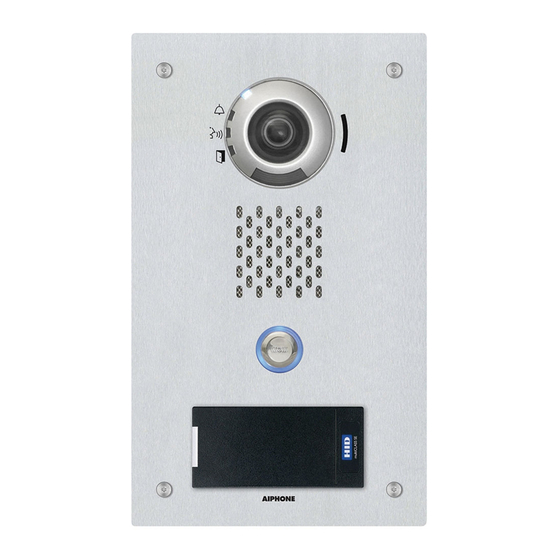

The IX-DVF-PR is an IX Series video door station with a built-in AC-PROX-1G proximity card reader. The card reader uses a standard
Wiegand interface to connect to a compatible access control system.
IX-DVF-PR
Package Contents
IX-DVF-PR
Door Station
and tamper-resistant screws
INSTALLATION GUIDE
1
2
3
4
5
6
7
Security Driver
Flush mount backbox
IX-DVF-PR

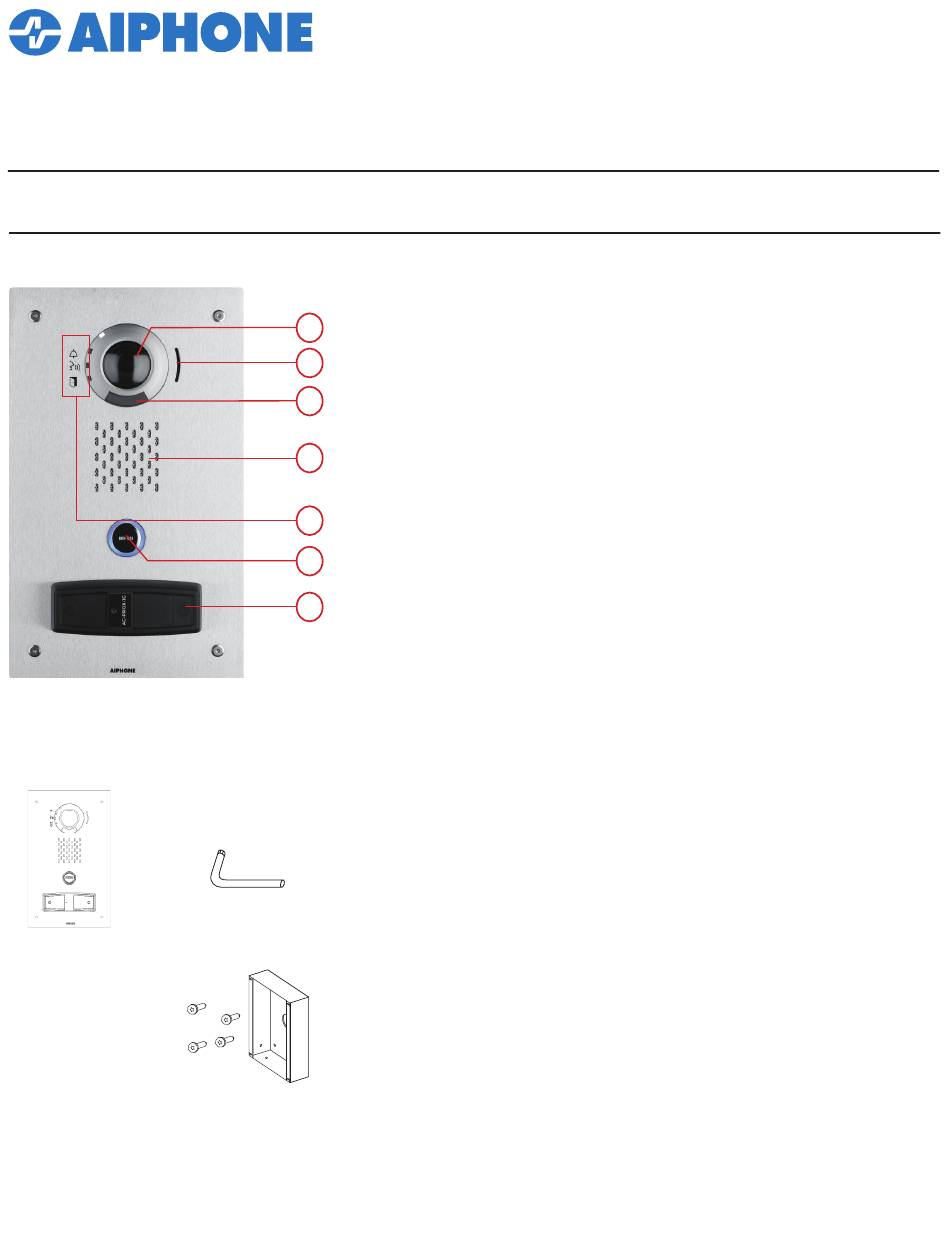

Names and Functions
1. Camera
2. Microphone
3. White LED for low light illumination
4. Speaker
5. Function Indicator
6. Call Button
7. Card Reader
Features
• Camera with manual vertical adjustment +15º , 0º , or -8º
• Two contact outputs, six trigger inputs
• Built-in RFID proximity reader
• Stainless steel faceplate
• SIP and ONVIF Profile S compliant
®
• MicroSD™ card slot
• 802.3af PoE
Installation and Configuration
IX-DVF-PR Dimensions: 11-11/16" H x 7" W x 1-15/16" D
Back Box Dimensions: 10-7/16" H x 5-13/16" W x 2-3/8" D
For flush mounting, recess the supplied back box into the wall,
then attach the mounting bracket using the four provided bracket
screws.
For surface mounting, use the SBX-IDVFRA surface mount box.
This box can mount to a standard single-gang box or to any flat
surface.
The IX-DVF-PR is configured as an IX-DVF door station using
the IX Support Tool or IXG Support Tool. Refer to the appropriate
Quick Start Programming Guide for instructions.
