The IX-DVF-P is an IX Series IP color video door station with a multiCLASS SE
into the same stainless steel faceplate. The card reader provides electronic access to a building
through a separate Access Control System, which is not supplied by Aiphone.
The video door station portion of the IX-DVF-P will connect directly to a network switch. Refer to the
IX2 QuickStart Guide or IX Support Tool Setting Manual for programming information.
IX-DVF-P

PACKAGE CONTENTS:

IX-DVF-P
Vandal-resistant Door Station
Flush backbox &
tamper-resistant screws
IX-DVF-P
Vandal Resistant IP Color Video Door Station
with built-in HID multiCLASS SE
-INSTRUCTIONS-
1
2
3
4
5
6
7
Security Driver
®

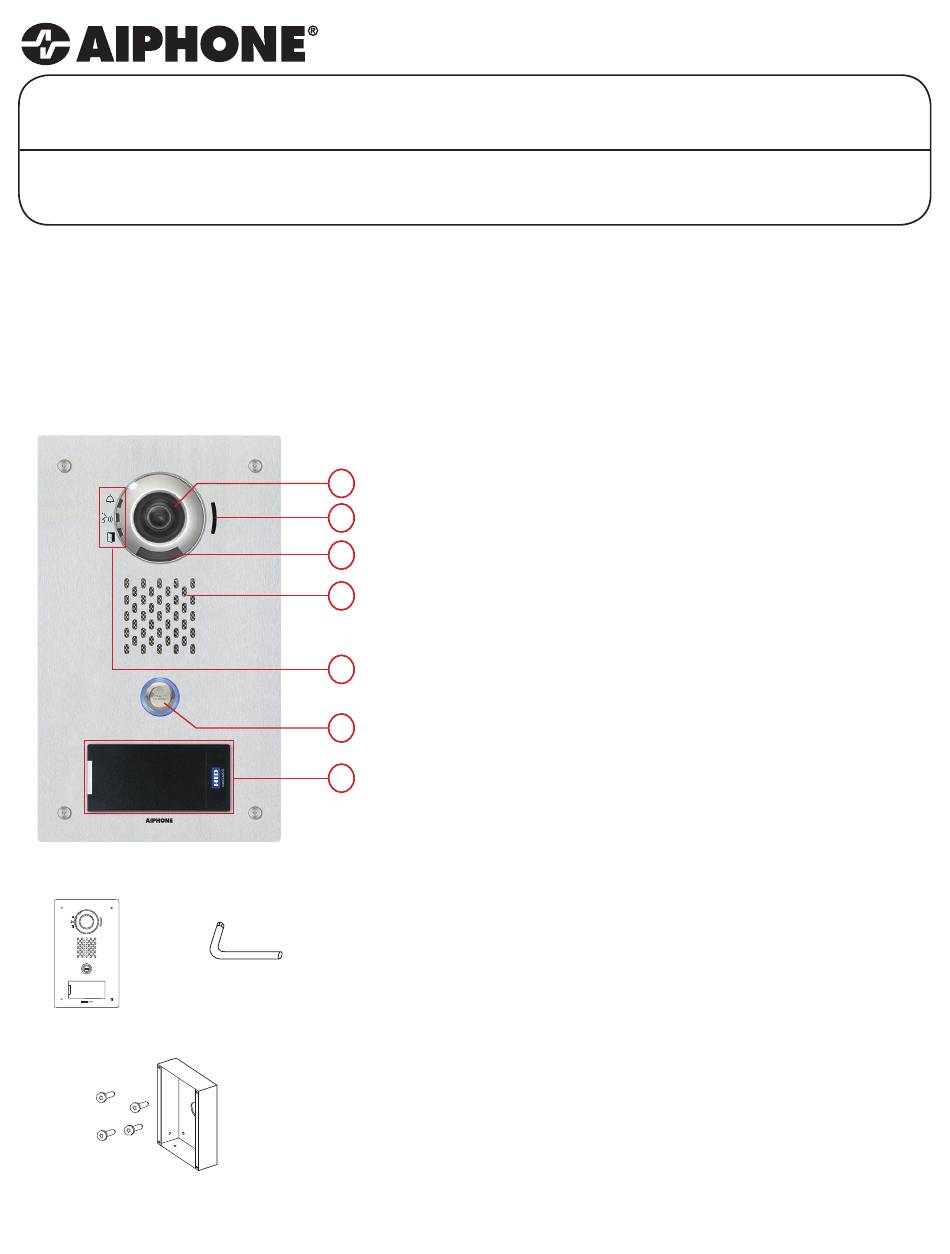

NAMES & FUNCTIONS:
1. Camera
2. Microphone
3. LED Light
4. Speaker

FEATURES:

All-in-one solution: Communication product &
card reader
If a card is missing or malfunctioning,
audio/video communication can provide user
verification
Standard Wiegand output to access panel
Convenience of installing combined components

INSTALLATION:

For flush mounting, cut a hole in the wall and use the
supplied back box.
Box dimensions are: 10-
For surface mounting, use the SBX-IDVFRA surface
mount box.
This box can mount to a standard 1 gang box or to any
flat surface.
Card Reader built
®
5. Function indicators
6. Call button
7. multiCLASS SE RP10 Reader
" H x 5-
" W x 2-⅜" D
7
13
16
16
Pg. 1
