INSTALLATION AND PROGRAMMING GUIDE
The IX-DVF-6 is an IX Series video door station with 6 call buttons for selective calling to IX-MV7 master
stations. The IX-DVF-6 will connect to a network switch, and the call buttons are connected to contact
inputs on the station. These inputs will be programmed to selectively call different master stations, or
groups of master stations.
IX-DVF-6
PACKAGE CONTENTS
IX-DVF-6
Flush mount backbox and
Door Station
mounting bracket
Security Driver
Label Template
2 Security Screws
4 Bracket Screws
Door Release
wire harness
IX-DVF-6

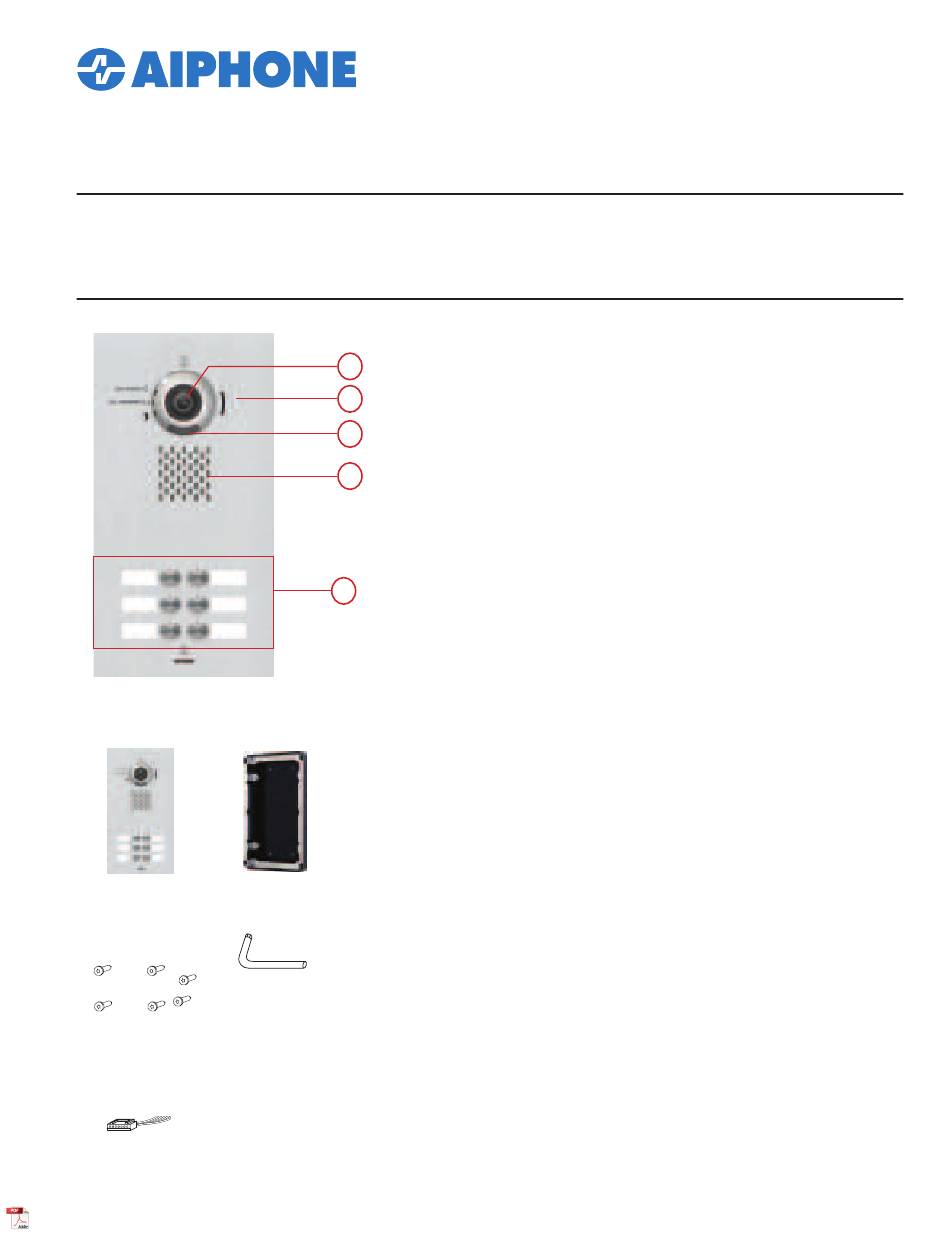

Names and Functions
1. Camera
1
2. Microphone
3. White LED for night viewing
2
4. Speaker
5. Call buttons
3
4
Features
• IP video door station
5
• 6 Labeled Call Buttons
• Stainless steel faceplate with tamper resistant screws
Installation
For flush mounting, recess the supplied back box
into the wall, then attach the mounting bracket
using the four provided bracket screws.
Back Box Dimensions: 12-1/2" H x 6-1/8" W x 2-3/8" D
IX-DVF-6 Dimensions: 13-11/16" H x 7-3/16" W
For surface mounting, use the SBX-IXGDM7 surface
mount box. This box can mount to a standard
single gang box or to any flat surface.
To install the labels, cut along the template guides, then
slide each side in to the label space on the panel.
Page
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aiphone IX-DVF-6
Summary of Contents for Aiphone IX-DVF-6
- Page 1 INSTALLATION AND PROGRAMMING GUIDE The IX-DVF-6 is an IX Series video door station with 6 call buttons for selective calling to IX-MV7 master stations. The IX-DVF-6 will connect to a network switch, and the call buttons are connected to contact inputs on the station.
- Page 2 Wiring Diagram PoE Switch Cat-5e / Cat-6 Button Pattern IX-MV7 IX-MV7 IX-DVF-6 IX-MV7 IX-MV7 The button pattern shown here corresponds to the Option Input numbers covered later in this manual. IX-MV7 IX-MV7 Specifications Camera unit: 1/3" color CMOS 1.2 megapixel Min.
- Page 3 Getting Started This programming guide will cover how to program an IX-DVF-6 door station and IX-MV7 master stations using the IX Support Tool software. For additional information and documentation for the IX system, please visit www.aiphone.com/IX. Creating a New System Open the IX Support Tool, then select File from the top menu and click Create New System.
- Page 4 Network Settings - IP Address The IP addresses for the stations can be individually set for each station or they can be configured in a batch. This guide will show how to assign via the batch configuration. Expand Network Settings and click on IP Address, then click Batch IP Address Configuration Batch IP Address Configuration On the Batch IP Address Configuration page, enter a starting IP address and subnet mask.
- Page 5 Association Settings The station name and IP address that were assigned in the previous steps will now need to be associated to each station in the system before any call settings can be uploaded. From the top menu bar, select Tools(T) from the top menu, then click Association Settings.
- Page 6 Call Button Settings - Option Inputs The IX-DVF-6 has six call buttons that are wired to Option Inputs. These inputs will need to be programmed to place a call. Click on , then expand Option Input/Relay Output Settings and select Option Input.
- Page 7 30 seconds to a minute. Once it is complete, confirm that the Status column shows Success for each station. For more details about the features and information above, please contact Technical Support. Aiphone Corporation | www.aiphone.com | (800) 692-0200 09/22...
