32521608
32521608

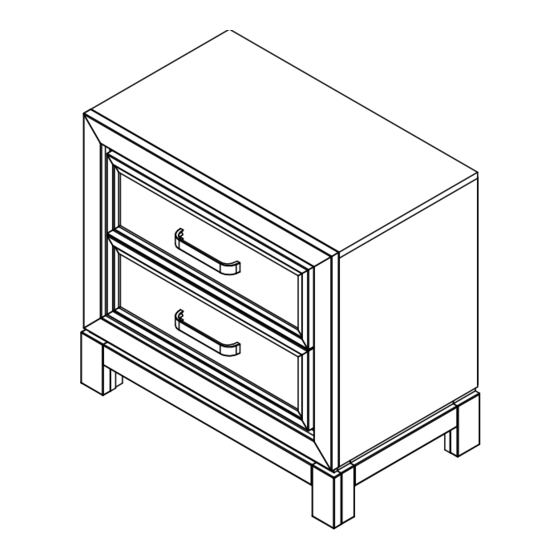

NIGHTSTAND
Important:
Be sure to check all packing material carefully for small parts which may come loose inside carton
during shipment. Separate, identify and count all parts and metal hardware.
Compare with parts list and hardware illustrations to be sure all parts are present. If any part(s) are missing or
damage, contact your dealers customer services deparment. For efficient and fast service, please indicate
the model number and the parts needed.
ATTENTION:
Some lettered parts listed on the instruction sheets may not be in the parts bag, they
may already be assembled.
TOOLS REQUIRED
(Not included)
Phillips Screwdriver
Part No. HBJ-01-03690
2 Pcs
Remove pull from interior
of the drawers
Pull
INSTALLED
ASSEMBLY INSTRUCTIONS
MODEL No.
HARDWARE:
Bolt 8-32 x 3/4" Zinc
Part No.HCPP-03
4 Pcs INSTALLED
STEP 1
Then put pull facing
outside.
LIN09-216 / 32521608
Anti-tip
Part No.HB-488
1 Pc
STEP 2
PAGE 1 OF 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROOMS TO GO LIN09-216
Summary of Contents for ROOMS TO GO LIN09-216
- Page 1 32521608 32521608 NIGHTSTAND MODEL No. LIN09-216 / 32521608 Important: Be sure to check all packing material carefully for small parts which may come loose inside carton during shipment. Separate, identify and count all parts and metal hardware. Compare with parts list and hardware illustrations to be sure all parts are present. If any part(s) are missing or damage, contact your dealers customer services deparment.
- Page 2 WARNING INSTALL FURNITURE TIPPING RESTRAINT KIT Warning Advertencia Avertissement ANTI-TIP Installation instructions: This tip restraint must be attached to wall stub using 2” screw enclosed 1.Attach a bracket securely to the back top rail of the furniture using the 5/8” screw provided through the smaller hole. 2.
