S W E D E N

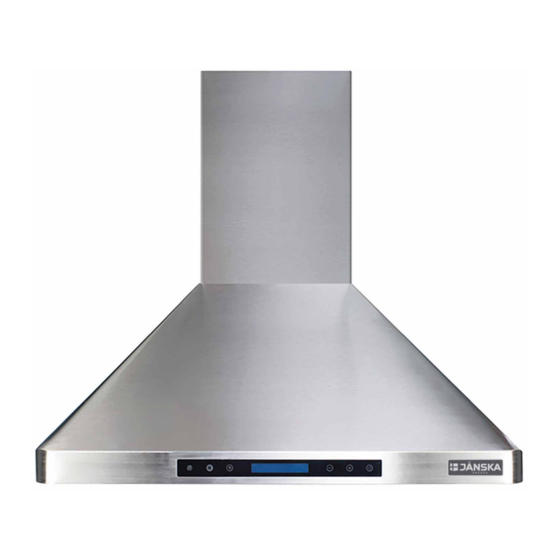

WALL-MOUNT
RANGE HOOD
Models:
RHW-3687 (36in)
RHW-4813 (48in)
USER MANUAL
Your satisfaction is guaranteed. If you are not completely satisfied with our
Wall-Mount Range Hood and the results it brings, we insist that you let us know.
We'll help make the Range Hood work for you, or we'll refund your money.
Advertisement
Table of Contents
Related Manuals for JANSKA RHW-3687
Summary of Contents for JANSKA RHW-3687
- Page 1 S W E D E N WALL-MOUNT RANGE HOOD Models: RHW-3687 (36in) RHW-4813 (48in) USER MANUAL Your satisfaction is guaranteed. If you are not completely satisfied with our Wall-Mount Range Hood and the results it brings, we insist that you let us know.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS………………………..…………………………………… INSTALLATION REQUIREMENTS …………………………………....…..……………. Parts Supplied …………………………………………………........…………. Location Requirements …………………………………………..………………………… Ventilation Requirements ……………………………………………..………………………. Electrical Requirements ………………………………………………..…………………….. INSTALLATION INSTRUCTIONS ………………………………………………..……………………. Prepare Location ……………………………………………………………..………………….. Venting Methods ……………………………………………………………..……………….. Install the Range Hood ………………………………………………………..……………… Grounding Instructions……………………………………………........… RANGE HOOD USE …………………………………………………………………...………..…….. Range Hood Controls …………………………………………………………………..………. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, READ THE FOLLOWING: • Use this unit only in the manner intended by the manufacturer. • Make sure that the voltage indicated on the rating plate of the appliance corresponds to your outlet voltage. - Page 4 • Never leave cooking elements unattended at high settings. Boil-overs can cause smoke and grease to spill over that may ignite. Heat oils slowly on low or medium settings. • Always turn the hood ON when cooking at high heat or when flambéing food. •...
-
Page 5: Installation Requirements
INSTALLATION REQUIREMENTS Wall Anchor Screw PARTS SUPPLIED: RHW-3687 (36in) x 4 RHW-4813 (48in) x 4 Range Hood Exhaust Duct Cover Screws RHW-3687 (36in) x 1 4Mx6 RHW-4813 (48in) x 1 RHW-3687 (36in) x 4 RHW-4813 (48in) x 4 Exhaust Duct Cover... -
Page 6: Location Requirements
If ductwork is already installed: ensure ductwork is free from debris and measures 6 in. (15.2 cm) in diameter for RHW-3687 (36in) model and 8 in. (20.3 cm) for RHW-4813 (48in) model. 1 in. (2.5 cm) reducers may be used but more than 1 in. (2.5 cm) will overwork the motor and the unit will not... -
Page 7: Ventilation Requirements
VENTILATION REQUIREMENTS: • This range hood must be ventilated to the outdoors. • Do not ventilate the range hood into an attic or other enclosed areas. • DO NOT use 4 in. (10.2 cm) laundry-type wall caps. • Use only metal/aluminum ductwork. Rigid metal/aluminum vent is recommended. Always keep the duct clean to ensure proper airflow. -
Page 8: Electrical Requirements
• It is recommended that the range hood be vented vertically through the roof through 6 in. (15.2 cm) in diameter for RHW-3687 (36in) model and 8 in. (20.3 cm) for RHW-4813 (48in) model, or bigger round metal/aluminum vent work. -
Page 9: Installation Instructions
• Disconnect the power. • A minimum of 6” (RHW-3687 model) and 8” (RHW-4813 model) round or 3-1/4 x 10” rectangular duct (both purchased separately) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 10: Venting Methods
VENTING METHODS: • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. TOP VENTING WALL EXHAUST TOP VENTING ROOF EXHAUST Roof cap Side wall cap... -
Page 11: Install The Range Hood
INSTALL THE RANGE HOOD: 1. Measure the distance between stove top and the bottom of range hood. A distance between 24” to 30” is required. For gas stove tops, a minimum distance of 30’’ is required. Make sure the range hood is level and not tilted. Level Upright CORRECT... - Page 12 5. Align Exhaust Duct Base Gasket (Part D) with the exhaust opening on top of the Range Hood, place Exhaust Duct Base (Part C) on top of it, and fasten using Exhaust Duct Base Screws (Part K). NOTE: Additional step for 48in models: Fix two Duct Cover Hooks with screws provided (Part O) to the top of the hood towards the wall side.
-
Page 13: Grounding Instructions
15. Once the hood is properly installed, insert the Grease Tray (Part L) into the stainless steel frame of the range hood, towards the rear. Push the Grease Tray down until firmly in position. 16. Install the Baffle Filter Spacers (Part P). -
Page 14: Range Hood Use
RANGE HOOD USE RANGE HOOD CONTROLS: 00:00 Remote Clock/ Lights Digital Minus Plus Power Control Timer On/Off Display Touch Touch On/Off Sensor Button Button OPERATING THE RANGE HOOD: - To Turn the Fan ON press the Power Button and press the “+” button to increase the fan speed: •... -
Page 15: Range Hood Care
REMOTE CONTROL: Power Lights On/Off On/Off Sensor - selected models only Decrease Increase Fan Speed Fan Speed Timer RANGE HOOD CARE WARNING: To reduce the risk of electrical shock, DO NOT clean the hood while it's operating. WARNING: Never put your hands into the area housing the fan when the fan is operating. - Page 16 Stainless Steel Baffle Filters, Grease Tray, Filter Spacers: • Filters, grease tray, and filter spacers should be cleaned frequently (every two months of opera- tion, or more frequently for heavy use). 1. Remove all the parts mentioned above from the hood and discard oil and residue. 2.
-
Page 17: Troubleshooting
TROUBLESHOOTING Check if the range hood has been plugged in, make sure that all power has been turned back ON, fuse not blown and all electrical wiring are properly con- If the range hood or LED light nected. does not operate after installation: Swap out light assembly to working ones to deter- mine whether it is caused by defective bulbs. -
Page 18: Specifications
SPECIFICATIONS RHW-3687 (36in): Body Design Stainless Steel Power Rating Total Input Power 224 W (218 W + 2x 3 W) Motor Input Power 218 W Amperage 2.5 A Speed Control Levels 4 Speeds Interference Protection Radio Frequency Interference Protected Motor... - Page 19 Fan Type 2 x Single chamber quiet Venting Size Top, 8 inches (19.6 cm) round Power: 120V/60Hz Weight: Baffle Filter size: RHW-3687 (36in): 44lbs / 20kg RHW-3687 (36in): 13.3 x 14.6in RHW-4813 (48in): 52.8lbs / 24kg RHW-4813 (48in): 14 x 14.7in...
- Page 20 S W E D E N Your purchase comes with a 100% satisfaction guarantee from Janska If you are not happy with the product for any reason, please contact us at support@janskaus.com with your feedback or questions, and we will do our best to make...
