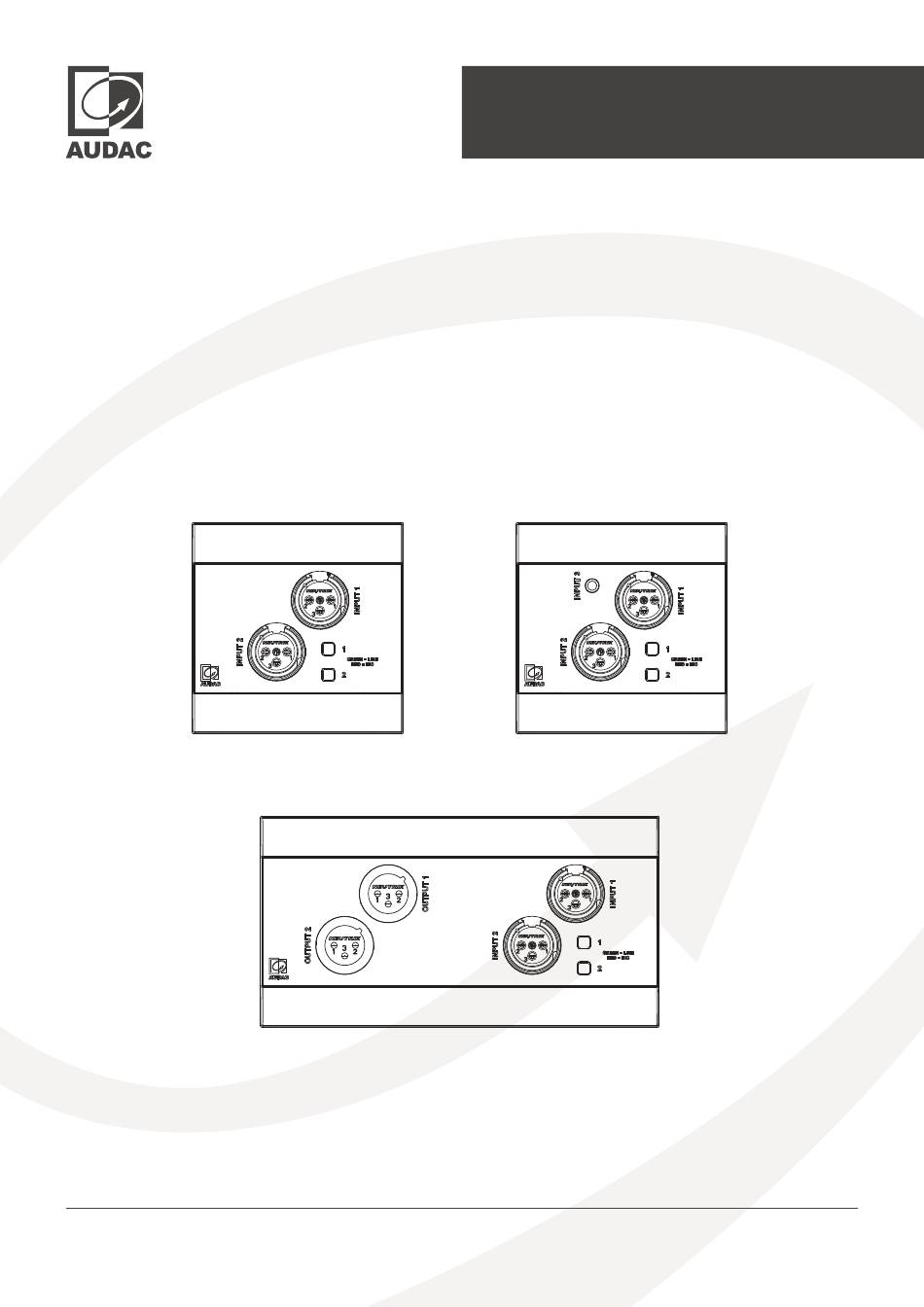

- Page 1 Hardware Manual NWP220,NWP222 & NWP320 audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ audac.eu. NWP220, NWP320 & NWP222 - Quick Start Manual...
-
Page 3: Table Of Contents
Quick start guide ................12 Technical specifications Notes NWP220, NWP320 & NWP222 - Quick Start Manual... - Page 4 NWP220, NWP320 & NWP222 - Quick Start Manual...
-
Page 5: Introduction
EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white color options are available to blend into any architectural design. NWP220, NWP320 & NWP222 - Quick Start Manual... -
Page 6: Precautions
This will make sure that it will be recycled in an environmentally friendly manner, and will help to protect the environment in which we all live. NWP220, NWP320 & NWP222 - Quick Start Manual... - Page 7 NWP220, NWP320 & NWP222 - Quick Start Manual...
- Page 8 Chapter 1 Connections CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed according to international wiring standards for professional audio equipment 3.5 mm jack: For unbalanced line input connections Tip: Left Ring: Right Sleeve: Ground For balanced microphone input connections...
-
Page 9: Network Settings
STANDARD NETWORK SETTINGS DHCP: ON IP Address: Depending on DHCP Subnet Mask: 255.255.255.0 (Depending on DHCP) Gateway: 192.168.0.253 (Depending on DHCP) DNS 1: 8.8.4.4 (Depending on DHCP) DNS 2: 8.8.8.8 (Depending on DHCP) NWP220, NWP320 & NWP222 - Quick Start Manual... -

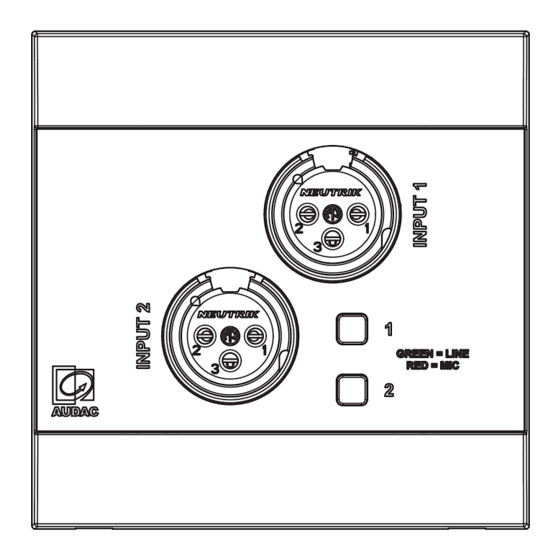

Page 10: Overview Front Panel
An unbalanced stereo audio source can be connected to this 3.5mm jack stereo line input. Buttons for Input Signal Level Selection and Bluetooth Connection The input level can be changed either from the front panel or from the AUDAC Touch™. For security reasons, button functions can be disabled from the AUDAC Touch™. -
Page 11: Overview Rear Panel
Provide a twisted pair cable (CAT5E or better) from the network switch to the wall panel. The maximum safest distance between the PoE switch and the wall panel should be 100 meters. WB45S/FS or WB45S/FG (Optional) NWP220, NWP320 & NWP222 - Quick Start Manual... - Page 12 Removing the front cover The front panel of the NWP series can be removed by using a flat head screwdriver in 5 steps. Step 1: Step 2: Step 3: Step 4: Step 5: NWP220, NWP320 & NWP222 - Quick Start Manual...
-
Page 13: Quick Start Guide
Quick start guide This chapter guides you through the setup process for a NWP series wall panel where the wall panel is a Dante source connected to the network. The control of the system is done through the NWP or Audac Touch... - Page 14 2) NWP series settings Once the Dante routing settings are made through the Dante Controller, other settings of the NWP series wall panel itself can be configured using the Audac Touch platform, which can be freely downloaded and operated from various platforms. This is very intuitive to be operated and automatically discovers all available compatible products in your network.
-
Page 15: Technical Specifications
Compatible devices All Dante compatiable devices *Input and output sensitivity levels defined are referred to a -13 dB FS (Full Scale) level, which is consequent through digital Audac devices and can be digitally gained when interfacing with 3rd party equipment. ... - Page 16 Discover more on audac.eu...
