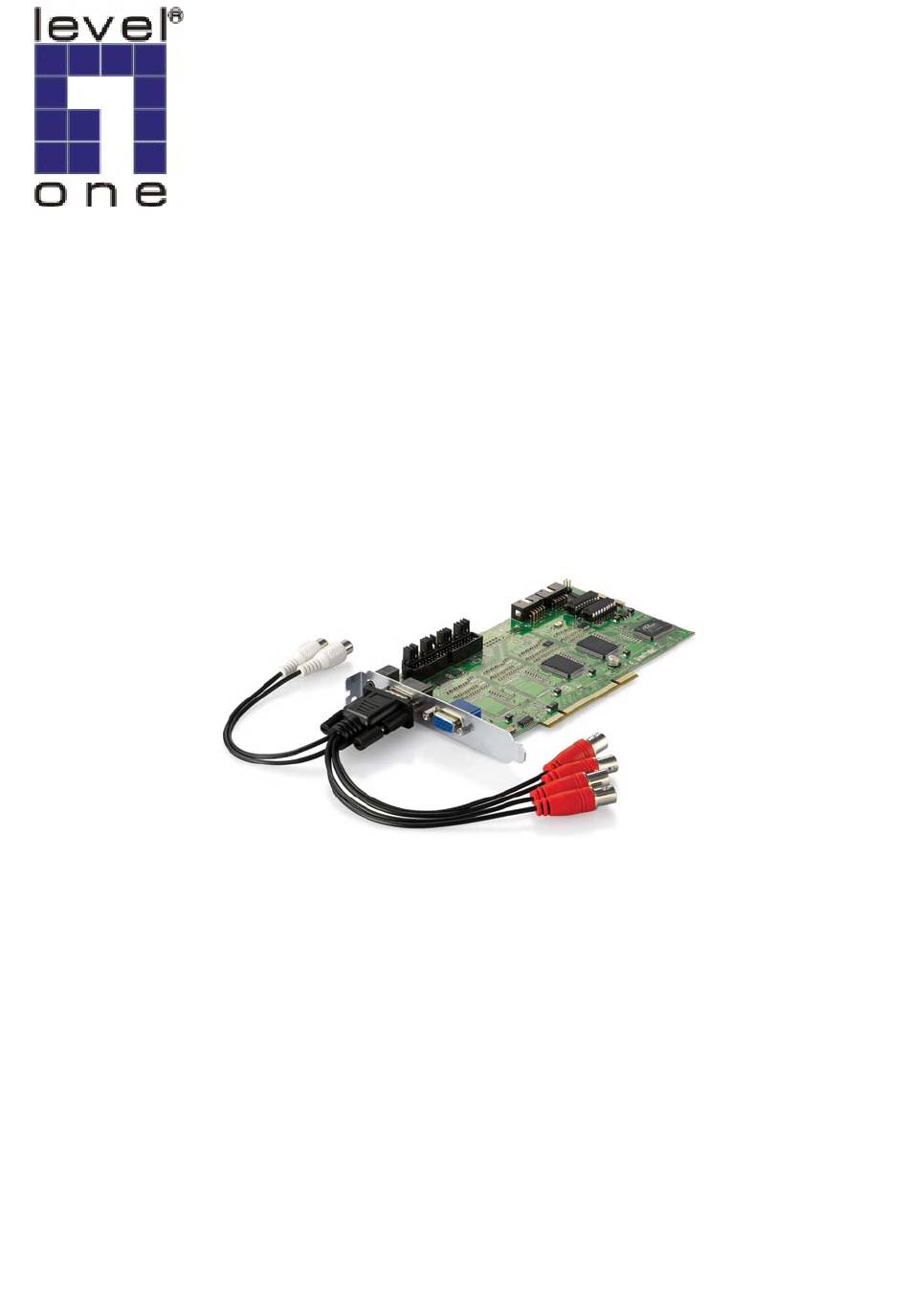

- Page 1 LevelOne FCS-8005 Analog Camera Capture Card User’s Manual Ver 1.0.0 – 0812...
-
Page 2: Table Of Contents
Table of Contents Package Contents-------------------------------------------------------------------------P.2 System Requirements--------------------------------------------------------------------P.2 Physical Description---------------------------------------------------------------------- P.2 Install the FCS-8005 to your PC-------------------------------------------------------P.3 Install the driver of FCS-8005----------------------------------------------------------P.3 Check DirectX version------------------------------------------------------------------- P.6 Install IP CamSecure--------------------------------------------------------------------- P.6 Technical Specifications------------------------------------------------------------------ P.9 Appendi x------------------------------------------------------------------ P.10... -
Page 3: Package Contents
Package Contents FCS-8005 Audio/Video Cable CD Manual / Driver / Utility Quick Installation Guide System Requirements FCS-8005 Pentium4 2.8 GHz 512 MB Mother- Intel 945 or 965 chip, Intel Chipset and ASUS motherboard board recommended Display ATI Radeon 9200, nVIDIA GeForce FX-5200, Intel 945 / 965, or above... -
Page 4: Install The Fcs-8005 To Your Pc
Install the FCS-8005 to your PC Step1: Insert the card onto an empty PCI slot. Connect the Audio/Video cable to the connector in the same color. Step 2: Turn on your PC and start Windows. Connect the Audio/Video Cable There are two audio and four video input connectors on the Audio/Video Cable. - Page 5 Click“Capture Card’s driver” Click “Install” to install the driver...
- Page 6 Click “Finish” to complete the driver installation.
-
Page 7: Check Directx Version
After driver being installed, please restart your PC. You may check the device from Device Manger. You will find FCS-8005 LevelOne Capture Card in “Sound,video and game controllers”. Check DirectX version Run dxdiag.exe from start menu ‘Start-> Run’ to check your DirectX version. If the installed version is less than 9.0, install DirectX 9.0 from the CD-ROM directx9/... - Page 8 Click”IP CamSecure” Custom Setup Type: You may install the system to the directory of your preference and choose which feature(s) you want to install to the PC. Hint: You may, for instance, install only Playback and/or LiveView on the PC at home or other remote site from which you do not install the camera but are going to watch them remotely.
- Page 9 Run IP CamSecure After installing IP CamSecure, run “main console” Click on the Config icon, select Video Source in the drop-down menu. You need to set up your video source before you start to activate schedule recording . Video Standard: Select the Standard that you apply, from NTSC and PAL. Video Resolution: Select the resolution you want.
-
Page 10: Technical Specifications
Technical Specifications Video Input Audio Input Maximum Cards in one PC (FCS-8005 only) Display Rate 60fps(NTSC) 50fps(PAL) Recording Rate 60fps(NTSC) 50fps(PAL) Video Resolution 704x480/640x480/352x240(NTSC) 704x576/640x576/352x288(PAL) Compression Mode Software Compression MPEG4 Hardware Watchdog Dimension 200(W)x120(H)mm...
