Sink Assembly - Robern CURATED CARTESIAN H4-3 Manual

SINK ASSEMBLY

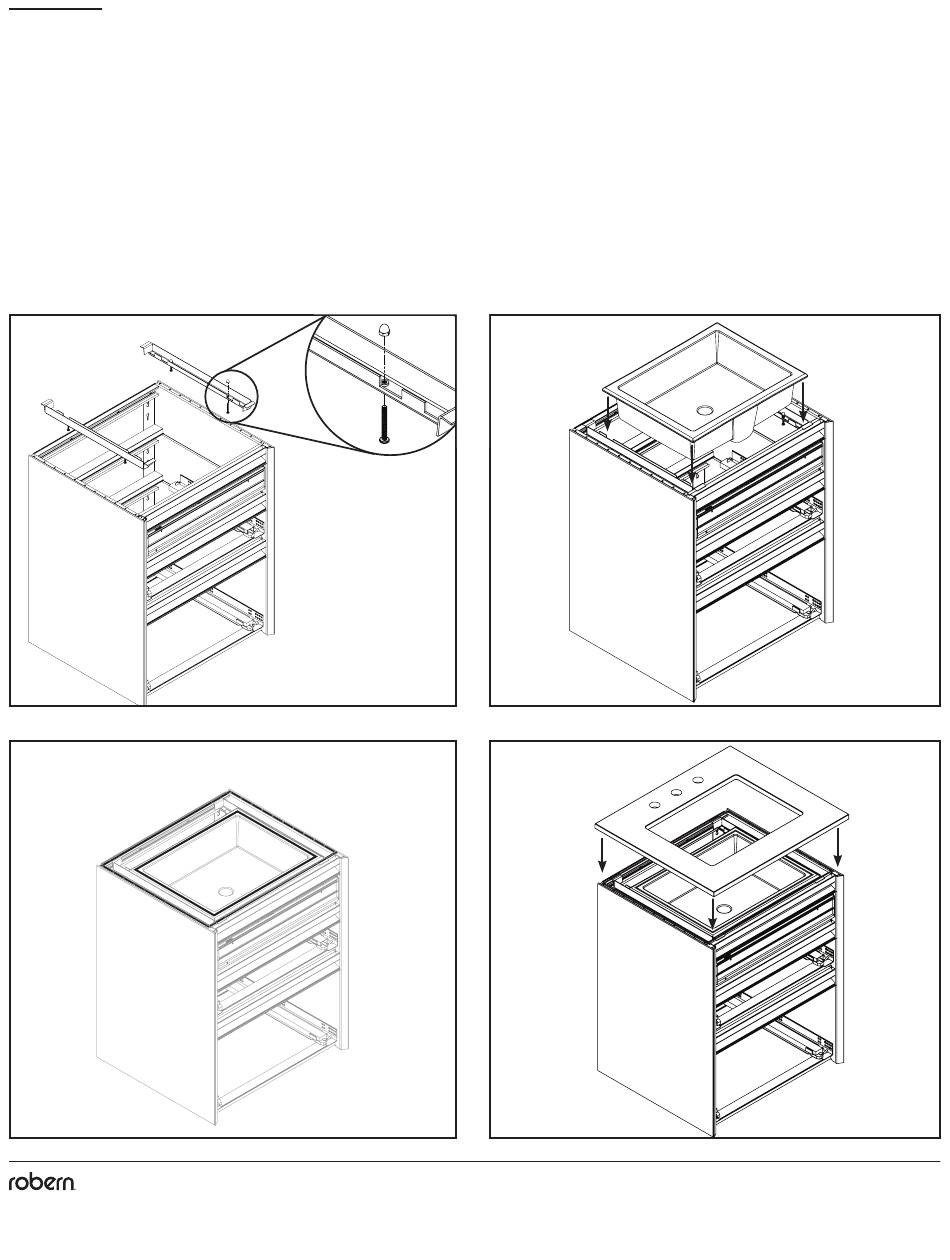

1. Thread the screws [203-1335] into the brackets [210-1100] and thread the acorn nuts [203-1337] onto the screws. Place the
assembled brackets into the vanity opening(s). Brackets should be snug and flush to the top of the vanity.
2. Place the sink(s) into the opening(s) and position the sink(s) at the front of the vanity. Test fit the stone top to be sure the sink(s) is
properly located.
3. Apply a 1/4" (6mm) bead of silicone sealant (not included) on both vanity and sink flange(s).
4. Carefully place the stone top on the vanity and sink. Note: The back edge of the stone top must be flush against the wall and equal
left and right overhang on each side of the vanity.
1 2
3
4
© 2016 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Part no. 209-1276 rev. 04/19/23
8
Installation instructions Curated Cartesian H4 - 3 Drawer
