dji T1d - Bluetooth Controller Manual

Product Introduction

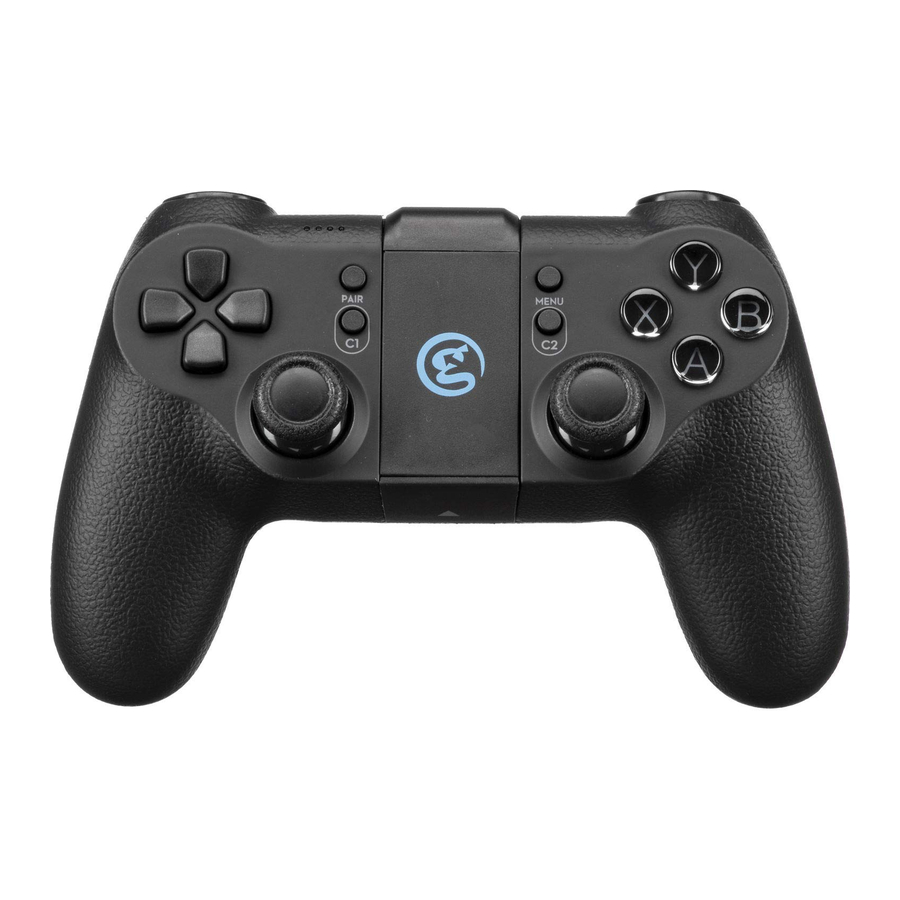

Bluetooth controller T1d, support Bluetooth 4.0 wireless connection. It is suitable for Android devices (version 4.3 or above) and Apple devices (system version iOS8.0 or above). This product fully intelligent and automatically identifies various models of equipment, no need to manually set Android or iOS mode, connect and play.

Product Parameters

Concept of Controller

Note: The factory default setting of the controller is the "America hand". The left joystick control the height and the direction, the right joystick control the forward, backward, and left direction of the flight.

Function Description

Turn on and connect the controller

1. Short press the button to turn on, if it starts successfully, the ABXYbutton of the controller will be always on.
2. Power display LED flickers slowly; Enter the Bluetooth mode directlyto wait for the APP connection;
3. Enter the flight control APP to connect the controller;
4. After connecting, the power display LED is always on and show thequantity of electricity.
5. If the controller has been connected to other phones, press the "Pair"button of the controller to force the controller to enter the state of waiting match.

Turn-off

1. Long press the power button for 3-5 seconds, shut down the controller, turn off all the LED lights;

Automatic turn-off

1. The controller is in connecting state, if it is idle for more than 5 minutes, the controller will turn off automatically.
2. The controller is in disconnecting state (waiting for connection), if noconnection for 2 minutes, the controller will turn off automatically.

Check the power

After the controller connected successfully, the LED lamp will show current power information.
The LED lamp group shows the proportion: Fully bright is about 75% to 100%; 3 lights are about 50% to 75%; 2 lights are about 25% to 50%; 1 light is about 1% to 25%.

Low battery alarm

1. When the available power is lower than the low power alarm voltage, the LED light group lasts double flash;
2. When the available power is lower than the battery protection voltage, the controller will turn off automatically.

Battery charging

1. LED lights 1-4 flicker slowly during charging;
2. When the charge is over (full), the LED light group is always on;
   Disconnect the charging cable after charging.

Reset

Press the pinhole on the back of the controller quickly with the paperclip, to force the entire controller to power off once, and reboot.

Firmware upgrading(OTA)

Connect the controller through the mobile phone APP Bluetooth, to process OTA upgrade. Support Android 4.3 +, iOS8.0 + system; App download address: www.gamesirhk/t1d

1. After entering the upgrade mode, the LED keeps on Lantern Dance, and waits for the upgrade.
2. After the upgrade is completed, turn off the machine and restart itautomatically.

Troubleshoot

1. When you can't start the machine, Maybe the built-in battery is out ofpower. Please recharge the controller with the USB line and start up again.
2. If the controller crashed or dropped please don't keep it far away fromthe device, or reconnect.
3. Factory setting (reset): There is a small hole on the back of the controller, press it down with a toothpick or other hard bar object, press RESET key to restore the factory setting.

Product notes

1. Avoid strong vibration, don't disassemble, refit, repair by yourself.
2. Avoid storing in humid, high temperature, fumes and other places
3. Avoid the water or other liquids entering the inside of the controller, it may affect the controller function.
4. There are batteries inside, do not drop the controller into the fire, there is a danger of explosion.
5. The charging voltage of this product is USB 3.7-5.5V DC power supply (ordinary Android mobile phone charging power can be used directly), otherwise it may not be able to charge or cause damage.
6. Children need to use this product in the custody of an adult.
