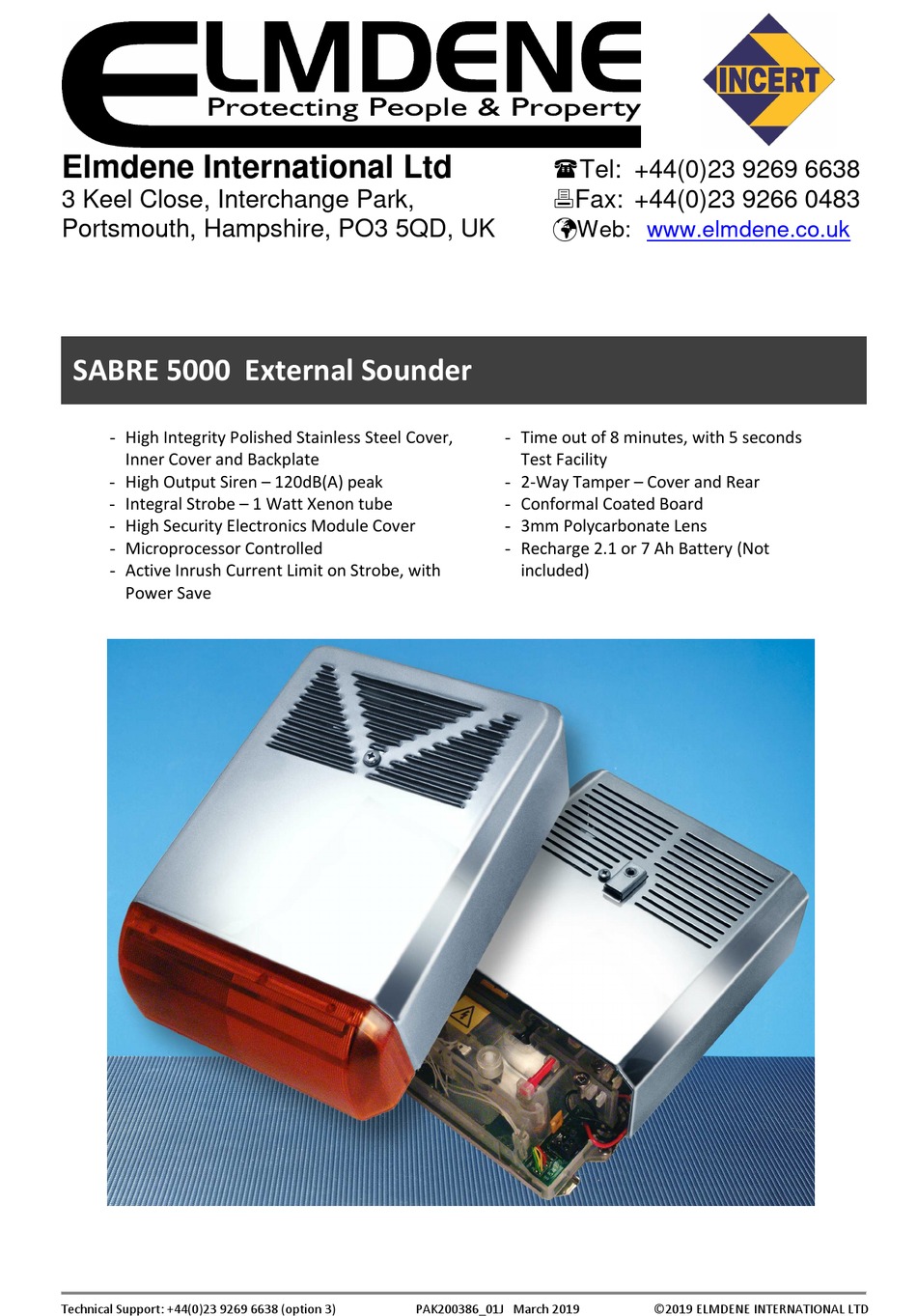

Elmdene International Ltd
3 Keel Close, Interchange Park,
Portsmouth, Hampshire, PO3 5QD, UK

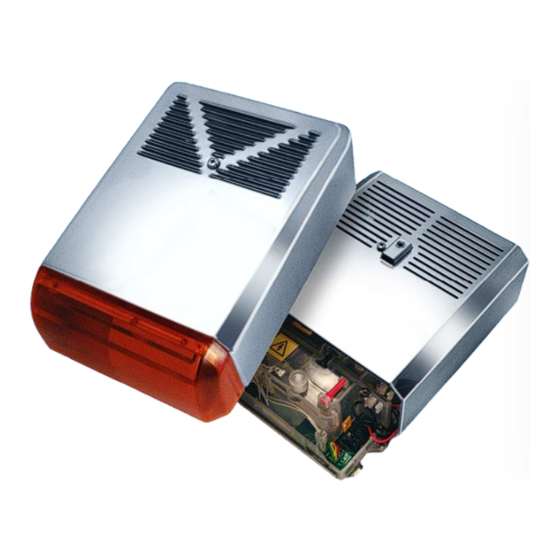

SABRE 5000 External Sounder
- High Integrity Polished Stainless Steel Cover,
Inner Cover and Backplate
- High Output Siren – 120dB(A) peak
- Integral Strobe – 1 Watt Xenon tube
- High Security Electronics Module Cover
- Microprocessor Controlled
- Active Inrush Current Limit on Strobe, with
Power Save
Technical Support: +44(0)23 9269 6638 (option 3)
Tel: +44(0)23 9269 6638
Fax: +44(0)23 9266 0483
Web:
- Time out of 8 minutes, with 5 seconds
Test Facility
- 2-Way Tamper – Cover and Rear
- Conformal Coated Board
- 3mm Polycarbonate Lens
- Recharge 2.1 or 7 Ah Battery (Not
included)
PAK200386_01J March 2019
www.elmdene.co.uk
©2019 ELMDENE INTERNATIONAL LTD
1
Advertisement
Related Manuals for Elmdene SABRE 5000
Summary of Contents for Elmdene SABRE 5000
- Page 1 Fax: +44(0)23 9266 0483 Portsmouth, Hampshire, PO3 5QD, UK Web: www.elmdene.co.uk SABRE 5000 External Sounder - High Integrity Polished Stainless Steel Cover, - Time out of 8 minutes, with 5 seconds Inner Cover and Backplate Test Facility - High Output Siren – 120dB(A) peak - 2-Way Tamper –...
- Page 2 The Sabre 5000 sounder is a high specification warning device designed for use in installations requiring the highest levels of security protection. With its high quality stainless steel cover the Sabre 5000 is ideal where product integrity is fundamental. The contemporary appearance of the highly polished cover delivers an aesthetically pleasing look in every installation.
-
Page 3: Jumper Settings
For End of Line resistor configuration - cut all of the wire links except the link required for your required resistor value Figure 2—Single Siren Tamper Connection Cut ALL EXCEPT required terminating To Control Panel Tamper I/P Tamper Switch Technical Support: +44(0)23 9269 6638 (option 3) PAK200386_01J March 2019 ©2019 ELMDENE INTERNATIONAL LTD... - Page 4 Tamper return output connection to control panel Negative Ring Trigger Negative Strobe Trigger Flying Leads for Battery connection—Ensure correct polarity. Red = +Ve Black = - Ve Technical Support: +44(0)23 9269 6638 (option 3) PAK200386_01J March 2019 ©2019 ELMDENE INTERNATIONAL LTD...
- Page 5 Trim rear tamper extender and repeat steps 2-5 until correct operation achieved Figure 4—Rear Tamper Adjustment Attach Tamper Extender Push pin into moulding (using finger) Trim Pin To Correct Length Technical Support: +44(0)23 9269 6638 (option 3) PAK200386_01J March 2019 ©2019 ELMDENE INTERNATIONAL LTD...
- Page 6 ATTERY NSTALLATION Figure 5—Fitting 2.1AH Battery Technical Support: +44(0)23 9269 6638 (option 3) PAK200386_01J March 2019 ©2019 ELMDENE INTERNATIONAL LTD...
- Page 7 Figure 6 - Fitting 7AH Battery Technical Support: +44(0)23 9269 6638 (option 3) PAK200386_01J March 2019 ©2019 ELMDENE INTERNATIONAL LTD...
- Page 8 AINTENANCE Figure 7 - Electronics Module Removal Disconnect Disconnect Technical Support: +44(0)23 9269 6638 (option 3) PAK200386_01J March 2019 ©2019 ELMDENE INTERNATIONAL LTD...
- Page 9 Figure 8— Loud Speaker Removal Technical Support: +44(0)23 9269 6638 (option 3) PAK200386_01J March 2019 ©2019 ELMDENE INTERNATIONAL LTD...
-
Page 10: Typical Values
Stainless Steel Backplate, cover and inner cover. 3mm Polycarbonate— lens and module cover Tamper Detection Cover and Rear Kinetic Protection IK08 Size 260 x 185 x 90 Weight 2.3Kg Ingress Protection IP35 Technical Support: +44(0)23 9269 6638 (option 3) PAK200386_01J March 2019 ©2019 ELMDENE INTERNATIONAL LTD... - Page 11 This product is suitable for use in systems designed to comply with PD6662:2017 at: Grade 2 and Environmental Class IV. The packaging supplied with this product may be recycled. Please dispose of packaging accordingly. Technical Support: +44(0)23 9269 6638 (option 3) PAK200386_01J March 2019 ©2019 ELMDENE INTERNATIONAL LTD...
