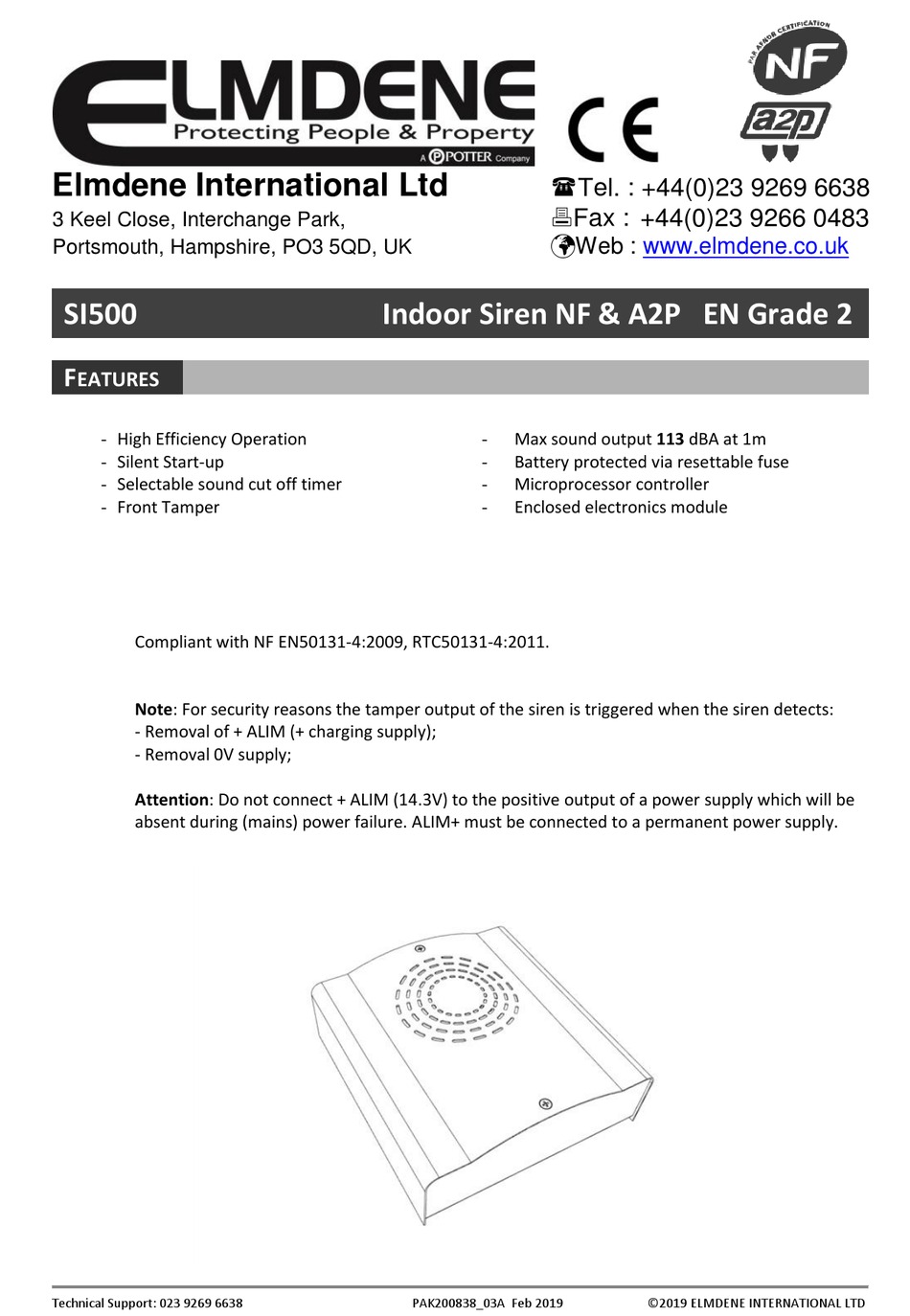

Elmdene International Ltd
3 Keel Close, Interchange Park,
Portsmouth, Hampshire, PO3 5QD, UK
SI500
F
EATURES
- High Efficiency Operation
- Silent Start-up
- Selectable sound cut off timer
- Front Tamper
Compliant with NF EN50131-4:2009, RTC50131-4:2011.
Note: For security reasons the tamper output of the siren is triggered when the siren detects:
- Removal of + ALIM (+ charging supply);
- Removal 0V supply;
Attention: Do not connect + ALIM (14.3V) to the positive output of a power supply which will be
absent during (mains) power failure. ALIM+ must be connected to a permanent power supply.
Technical Support: 023 9269 6638
Tel. : +44(0)23 9269 6638
Fax : +44(0)23 9266 0483

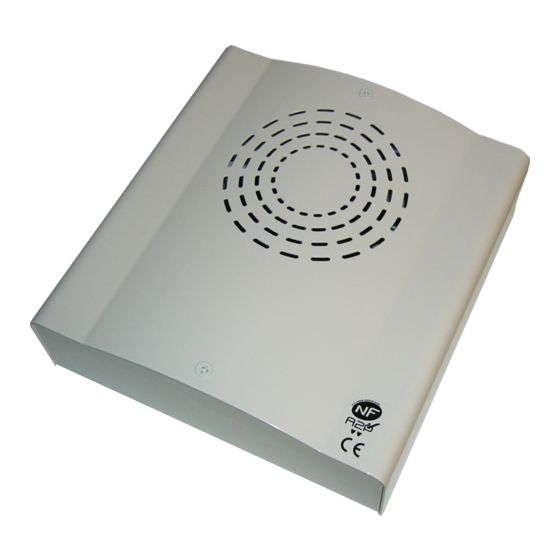

Indoor Siren NF & A2P EN Grade 2
Max sound output 113 dBA at 1m
-
Battery protected via resettable fuse
-
Microprocessor controller
-
Enclosed electronics module
-
PAK200838_03A Feb 2019
Web :
www.elmdene.co.uk
©2019 ELMDENE INTERNATIONAL LTD
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elmdene SI500
Summary of Contents for Elmdene SI500
- Page 1 Attention: Do not connect + ALIM (14.3V) to the positive output of a power supply which will be absent during (mains) power failure. ALIM+ must be connected to a permanent power supply. Technical Support: 023 9269 6638 PAK200838_03A Feb 2019 ©2019 ELMDENE INTERNATIONAL LTD...
- Page 2 The SI500 is designed to sound when the BL+ (Blocage) input is removed or connected to 0V. * The SI500 is a Security Grade 2 product – loss of ALIM/Hold-off (charging supply) will cause the sounder to self-activate, but a tamper signal is not generated.
- Page 3 Fig. 1: SI500 Timer Setting Link Locations and General Connection Information AP | BL | ALIM ONNECTIONS Positive connection to battery. Negative battery connection. Connect black battery lead after (ALIM) supply is applied. Speaker connections. ALIM+ Permanent positive hold-off supply ALIM- Permanent negative hold-off supply.
- Page 4 NSTALLATION AND ONFIGURATION Select a suitable mounting position for the SI500 sounder. Drill holes as required for fixing the backplate to the wall and for cable entry to the rear of the unit. Route cable from control panel through cable entry aperture.
- Page 5 8) Commissioning is complete. AINTENANCE The SI500 sounder should be tested for correct operation on a periodic basis. A minimum of one check every 12 months is recommended. The following features should be verified on each maintenance visit: 1) Correct operation of sounder from control panel signal 2) Correct operation of cover and rear tampers.
- Page 6 (Cd), lead (Pb), or mercury (Hg). The packaging supplied with this product may be recycled. Please dispose of the packaging appropriately. For more information see: www.recyclethis.info Technical Support: 023 9269 6638 PAK200838_03A Feb 2019 ©2019 ELMDENE INTERNATIONAL LTD...
- Page 7 12V 2.1Ah SLA - Battery recharge in less than 24 hours (Following 10 x 3 minute soundings) NOTE: The SI500 siren is specified for operation with a Powersonic PS-1221 battery and it is recommended to use this battery. Battery Low Voltage Detection 10.9V nominally...
