VERTEC-3000-G3
F
EATURES
- 105dB(A) siren output
- 12v dc voltage operation
- Integral 1.0 Watt Xenon tube strobe (with
active inrush current limit)
- 3 way tamper protection: cover, rear & module
- Separate sound and strobe trigger inputs
- Hold-off supply failure detection
- Battery and piezo test with fault output
- Remote test input facility
- Selectable sound auto cut-off timer: no cut-off,
5s (for test), 3, 10, 15 minutes
Technical Support Line +44 (0)23 9269 6638 (Option 3)
External Grade 3 Sounder
Full SAB using internal battery
-
Twin Comfort LEDs selectable on, off, alternate
-
flash
4 selectable sound tones
-
Audible Tamper to assist commissioning
-
Ring Line Monitoring
-
Fully enclosed electronics module
-
Engineer Mode for quiet installation and
-
maintenance
Polycarbonate cover and backplate
-
Microprocessor controlled
-

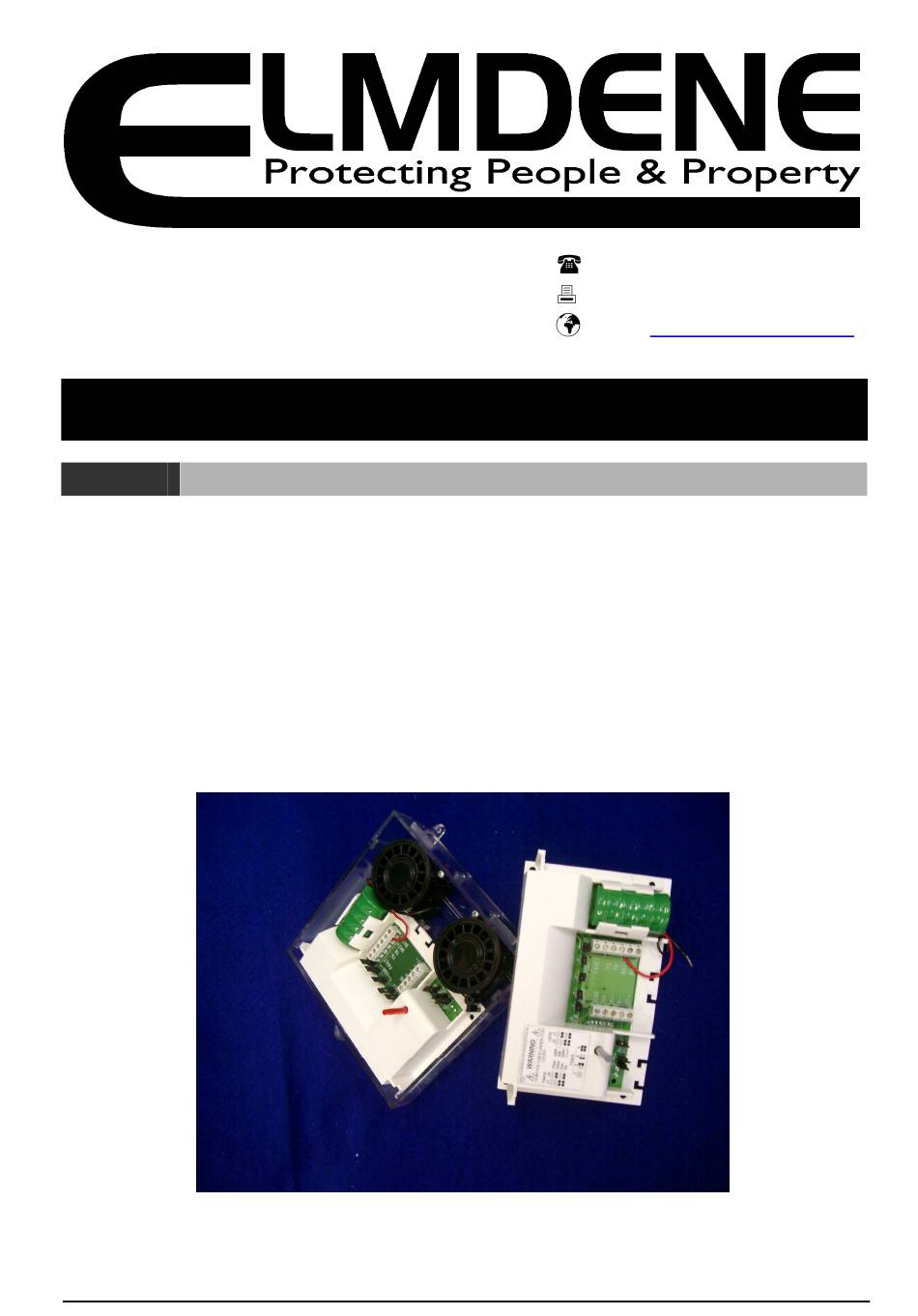

Figure 1: Vertec 3000 Module
PAK200218 Iss 05B Oct 2012
Tel: +44(0)23 9269 6638
Fax: +44(0)23 9266 0483
Web:
www.elmdene.co.uk
©2012 ELMDENE INTERNATIONAL LTD
Advertisement
Table of Contents
Related Manuals for Elmdene VERTEC-3000-G3
Summary of Contents for Elmdene VERTEC-3000-G3
- Page 1 - Selectable sound auto cut-off timer: no cut-off, Polycarbonate cover and backplate 5s (for test), 3, 10, 15 minutes Microprocessor controlled Figure 1: Vertec 3000 Module Technical Support Line +44 (0)23 9269 6638 (Option 3) PAK200218 Iss 05B Oct 2012 ©2012 ELMDENE INTERNATIONAL LTD...
-
Page 2: Operation
Self Test or Remote Test has been performed. If the self test has passed, the Healthy/Fault output will close after 10s of starting the Remote Test. Technical Support Line +44 (0)23 9269 6638 (Option 3) PAK200218 Iss 05B Oct 2012 ©2012 ELMDENE INTERNATIONAL LTD... - Page 3 The control panel can then trigger the siren using the R– line. Note: The siren will self-activate if the supply lines are cut in either mode. Technical Support Line +44 (0)23 9269 6638 (Option 3) PAK200218 Iss 05B Oct 2012 ©2012 ELMDENE INTERNATIONAL LTD...
- Page 4 See Note 1 0V Strobe Trigger Prog o/p Healthy Healthy Fault i/p Healthy Healthy Fault i/p Figure 3: Multiple cascade siren connections Technical Support Line +44 (0)23 9269 6638 (Option 3) PAK200218 Iss 05B Oct 2012 ©2012 ELMDENE INTERNATIONAL LTD...
-
Page 5: Installation And Setup
The following features should be verified on each maintenance visit: Correct operation of sounder and strobe from control panel signals Correct operation of cover and rear tampers. Technical Support Line +44 (0)23 9269 6638 (Option 3) PAK200218 Iss 05B Oct 2012 ©2012 ELMDENE INTERNATIONAL LTD... -
Page 6: Fault Finding
Check battery connections to terminal block. Battery faulty or low voltage Replace battery. Fault output open Piezo fault Return unit to manufacturer Battery charger faulty Technical Support Line +44 (0)23 9269 6638 (Option 3) PAK200218 Iss 05B Oct 2012 ©2012 ELMDENE INTERNATIONAL LTD... - Page 7 See Specification for battery type information. The battery is marked with the crossed out wheelie bin symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For more information see: www.recyclethis.info Technical Support Line +44 (0)23 9269 6638 (Option 3) PAK200218 Iss 05B Oct 2012 ©2012 ELMDENE INTERNATIONAL LTD...
-
Page 8: Specification
This product is suitable for use in systems designed to comply with PD6662:2010 at: Grade 3 and Environmental Class IV. The packaging supplied with this product may be recycled. Please dispose of packaging accordingly. Technical Support Line +44 (0)23 9269 6638 (Option 3) PAK200218 Iss 05B Oct 2012 ©2012 ELMDENE INTERNATIONAL LTD...
