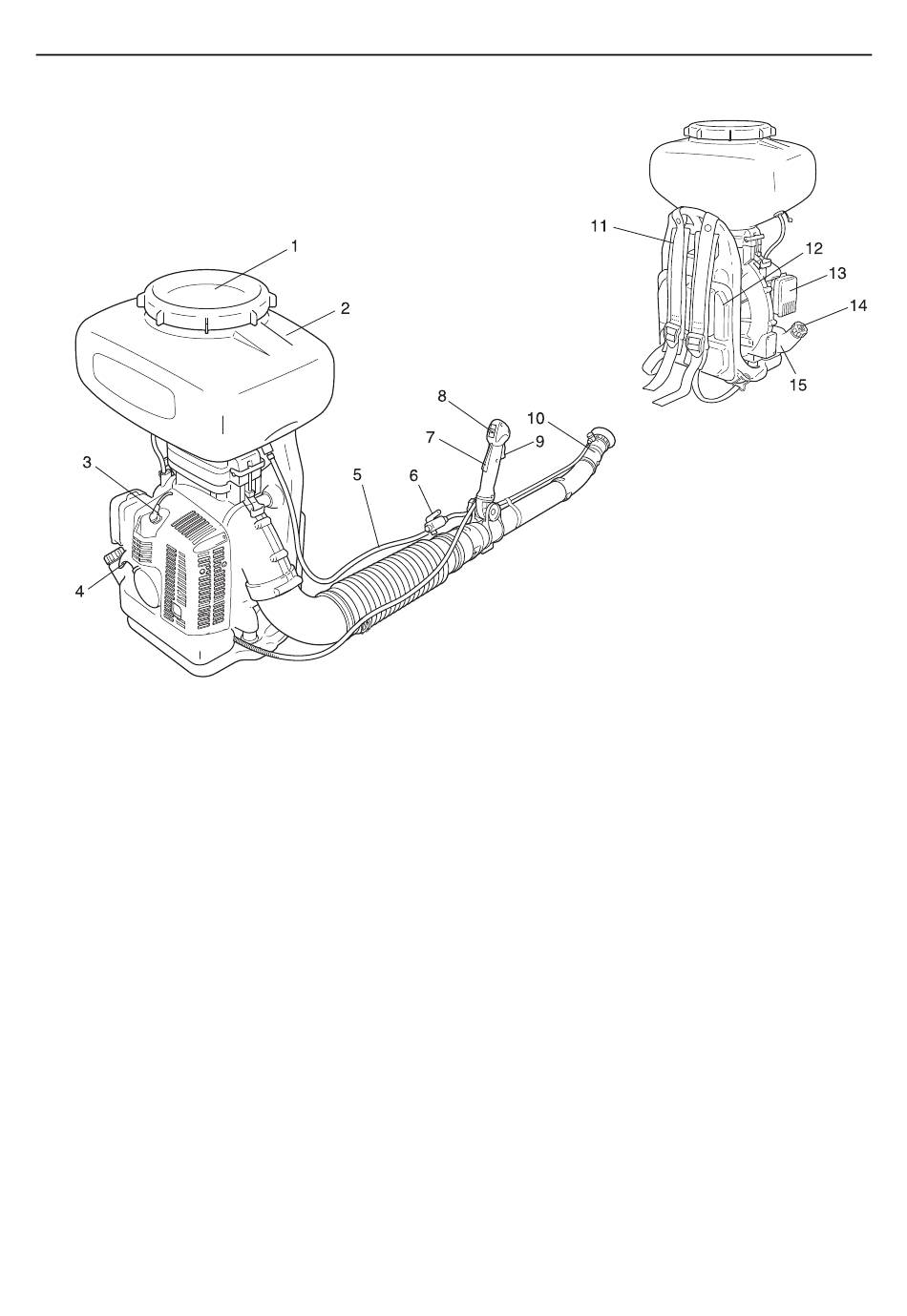

Description - Echo MB-580 Operator's Manual

1. Chemical tank cap
2. Chemical tank Contains chemical.
3. Spark plug
4. Starter handle Pull handle to start the engine.
5. Discharge tube
6. Valve
7. Throttle trigger lockout Locks throttle trigger in the
idling position until you have a proper grip with your right
hand around the handle.
8. Ignition switch "Slide switch" mounted on top of the
throttle trigger housing, move switch forward to RUN,
backward to STOP position.

Description

9. Throttle trigger Activated by the operator's finger for
controlling the engine speed.
10. Nozzle
11. Shoulder harness An adjustable strap to suspend unit.
12. Cushion back-plate
13. Air cleaner cover Covers air filter.
14. Fuel tank cap For closing the fuel tank.
15. Fuel tank Contains fuel and fuel filter.
7
Description
