V-TAC 7817 Installation Instruction

Installation Instruction
Product Code: SKU 7817

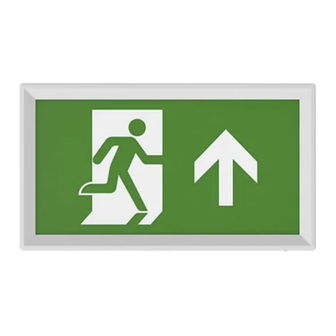

Product Description: SELF TEST-LED EMERGENCY EXIT BOX WITH ARROW UP LEGEND
Specification
Emergency Power:
Viewing Distance:
EM Duration:
Charging Time:
Ambient Temp:
Emergency Mode:
Function:
Battery:
Warranty:
Routine Testing
Testing should be carried out in accordance with the recommendations of BS5266 & EN50172.
1. Do not switch off unswitched mains supply after installation. If interruption is unavoidable, the batteries must be
disconnected or damage to the batteries may occur. Leave the luminaire on continuous charge for 24 hours.
2. A monthly functional test should be conducted manually.
3. Annually, a full three hour duration test should be conducted manually.
4. Batteries should be replaced when the luminaire no longer meets the 3 hours duration performance.
5. Testing is performed by interrupting the unswitched supply for the test duration manually or self-test function
complying with IEC62034.
During testing the luminaire should remain illuminated in emergency mode.
6. Ensure that the 'charge indicator' is 'ON' during 'Charging Mode'.
If the charge indicator (LED) is unlit, this signifies a fault.
7. Replace faulty light source and batteries immediately.
To assist with this testing, a test record is included below.
To increase the chance of a fault being reported between monthly tests, it is desirable that staff are made aware
of the purpose of the indicator.
Testing Record
Product: _______________
Month Functional/Duration
1
2
3
4
5
6
7
8
9
10
11
12
<4W
30M(EU ) / 24M(AU )
1H/3H/8H
24 hours
5-45°C
Maintained
Self-test
LiFePO4 3.2V 1.5Ah
4 years (battery 2 years )
Location:_____________
Year 1
Installation Date:____________
Year 2 Year 3
4
20
Year 4 Year 5
