Summary of Contents for Garmin VARIA ERTL616

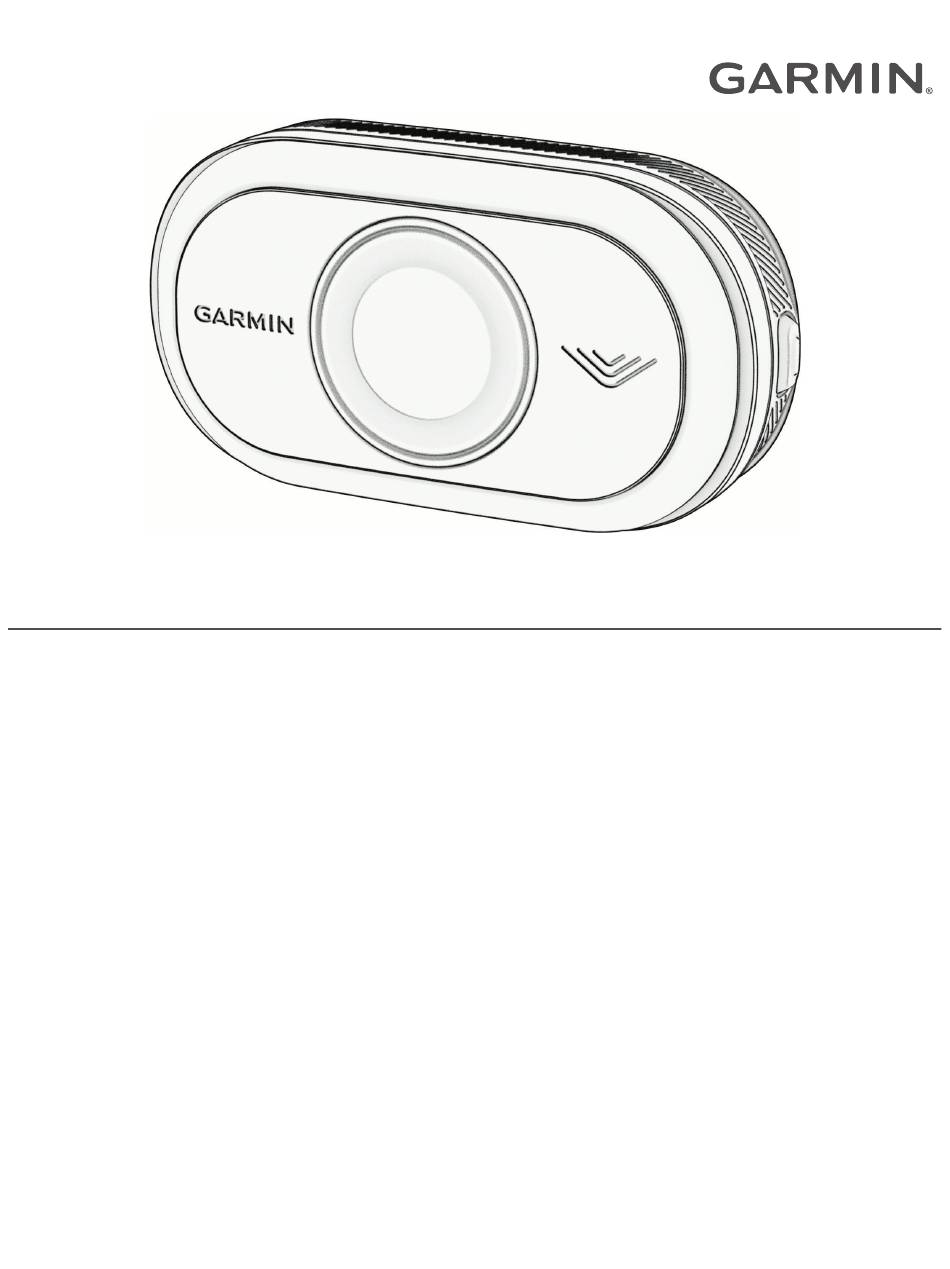

- Page 1 VARIA ERTL616 ™ Owner’s Manual...
- Page 2 © 2023 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com...
-
Page 3: Table Of Contents
Varia eRTL616 Status LED...... 3 Troubleshooting......12 Tail Light Modes and Intensity....3 Resetting the Device......12 Turning Off the Varia eRTL616 Tail Product Updates........12 Light............3 The radar device is not responding..13 Radar detection does not work The Varia eRTL616 and Your Edge indoors........... -
Page 5: Introduction

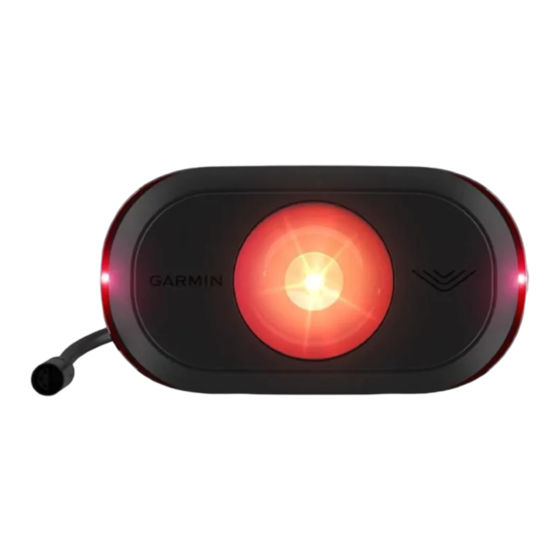

Tips for Installing the Device The Varia eRTL616 includes a tail light and micro radar that can detect approaching vehicles up to 140 meters away. • Select a secure location to mount the device where it does not interfere with the safe operation of your bike. -
Page 6: Installing The Device On A Rear Rack
Installing the Device on a Rear Rack Before you can install the Varia eRTL616, you need 3 mm and 4 mm hex keys and a cable to connect your device. 1 Complete the required steps based on the configuration of your rear rack: •... -
Page 7: Device Overview
Status Flashing purple The device is in active pairing mode. Flashing blue The device is in smart mode and can be controlled by a paired compatible Garmin device. Flashing yellow The device is in demo mode. Solid red An error occurred. You may need to restart the device. -
Page 8: The Varia Ertl616 And Your Edge 1040
Pairing the Varia eRTL616 with Your Edge 1040 The first time you connect the Varia eRTL616 to your Edge 1040, you must pair both devices using ANT+ ® technology. After the initial pairing, the Edge device automatically connects to the radar device when you start your activity and the radar device is active and within range. -
Page 9: Viewing Widgets
The next time you swipe down to view the widgets, the last widget you viewed appears. Customizing the Varia Device Settings with Your Edge 1040 Before you can customize Varia eRTL616 settings with your Edge 1040, you must pair the devices. 1 Select >... -
Page 10: Customizing The Radar Alert Settings With Your Edge 1040
Pairing the Varia eRTL616 with Your Phone The first time you connect the Varia eRTL616 to the Varia app on your phone, you must pair both devices. After the initial pairing, the Varia app automatically connects to the Varia eRTL616 when you open the app and the radar device is active and within range. -
Page 11: Viewing Radar On The Varia App
1 From the Varia app, select 2 Select Sounds & Alerts. 3 Select an option. The Varia eRTL616 and Your Radar Display Unit You can display radar data using the compatible rear display unit (RDU). The Varia eRTL616 and Your Radar Display Unit... -
Page 12: Varia Rdu Overview
Amber indicates a vehicle is approaching. Red indicates Threat level LED a vehicle is advancing at a high rate of speed. Moves up the column as the vehicle gets closer to your bike. Vehicle position LEDs The Varia eRTL616 and Your Radar Display Unit... -
Page 13: Installing The Varia Rdu
2 Turn on the radar device. 3 Bring the devices within 1 cm of each other, and wait while the devices connect. The Varia RDU LED turns solid blue and the threat level LED turns solid green. The Varia eRTL616 and Your Radar Display Unit... -
Page 14: Turning On The Varia Rdu
3 From the Sensors menu, select Add Sensor > Search All. 4 While the Varia eRTL616 is turned off, hold the device button for 4 seconds to enter pairing mode. The status LED flashes purple, and the radar tail light turns on. The radar tail light is in pairing mode for 5 minutes or until you hold the device button for 2 seconds to exit pairing mode. -
Page 15: Pairing The Radar Device With A Compatible Garmin Watch
3 From the Settings menu, select Sensors & Accessories > Add New > Search All. 4 While the Varia eRTL616 device is turned off, hold the device button for 4 seconds to enter pairing mode. The status LED flashes purple, and the tail light turns on. The device is in pairing mode for 5 minutes or until you hold the device button for 2 seconds to exit pairing mode. -
Page 16: Specifications
When the update is complete, the LED flashes green 10 times. The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. The device will not work with AC power cables. -
Page 17: The Radar Device Is Not Responding
The radar device disconnects from the Edge bike computer WARNING If the radar device is not connected or sending radar data, Garmin recommends that you stop riding and check the devices in a safe location. Failure to do so could result in serious injury or death. -
Page 18: The Radar Device Disconnects From The Varia App
The radar device disconnects from the Varia app WARNING If the radar device is not connected or sending radar data, Garmin recommends that you stop riding and check the devices in a safe location. Failure to do so could result in serious injury or death. - Page 20 April 2023 GUID-1F013ED0-E74B-4883-9CBB-E41B6B7BB185 v1...
