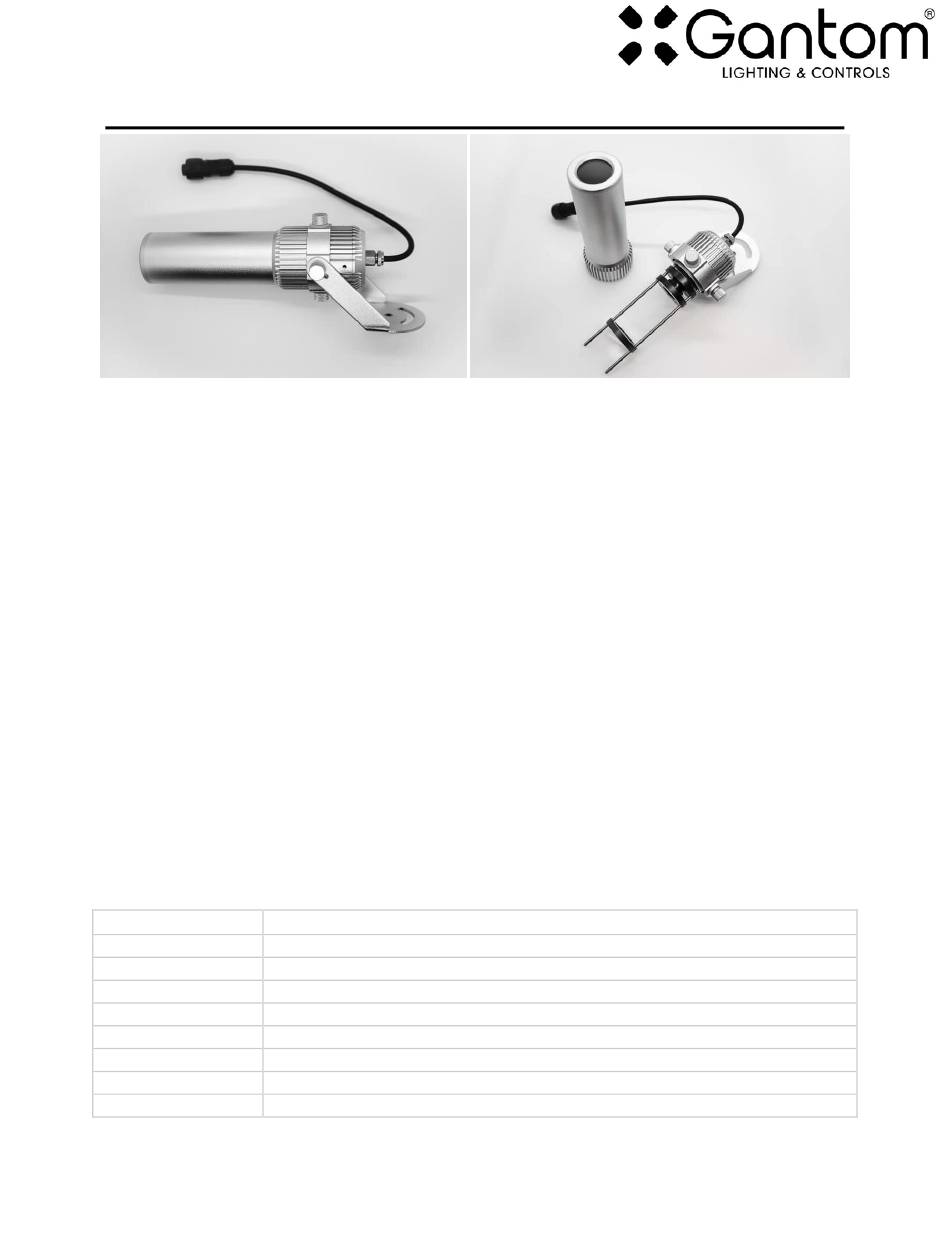

STORM FORM AND STORM FORM DMX USER GUIDE
The Storm Form is a rugged and compact outdoor gobo projector with adjustable zoom and focus. It is
available with either Warm White or Cool White output. The Storm Form is also available in a DMX
controllable version. The Storm Form and Storm Form DMX are small and discreet, but engineered to
deliver lasting performance in permanent outdoor installations. The Storm Form and Storm Form DMX
are available in black or silver finish. The Storm DMX is configured using our DMX Programmer app,
which is available free for Apple and Android devices, or using our DarkBox Programmer standalone
programming device.
Features
o Adjustable zoom and focus
o 16-27° beam angle
o Accepts 19mm steel or glass gobo (up to 2mm thick)
o Warm White (90+ CRI) or Cool White LED
o 9 Watt LED
o Class 2, low-voltage 12-24VDC input (DO NOT HOT PLUG)
o Rated IP65 for permanent outdoor installation
o Locking mount
o Waterproof connector for use with Gantom Pro Cable System
o Available in black or silver finish
o DMX controllable version available
Available Models:
Item Number
ST128
Storm Form - Warm White - Black Anodized Finish
ST130
Storm Form - Warm White - Silver Anodized Finish
ST131
Storm Form - Cool White - Black Anodized Finish
ST133
Storm Form - Cool White - Silver Anodized Finish
ST163
Storm Form DMX - Warm White - Black Anodized Finish
ST165
Storm Form DMX - Warm White - Silver Anodized Finish
ST166
Storm Form DMX - Cool White - Black Anodized Finish
ST168
Storm Form DMX - Cool White - Silver Anodized Finish
Storm Form and Storm Form DMX User Guide
Item Description
Version 1.1 – 2/25/2021
Advertisement
Table of Contents
Related Manuals for Gantom STORM FORM
Summary of Contents for Gantom STORM FORM
- Page 1 STORM FORM AND STORM FORM DMX USER GUIDE The Storm Form is a rugged and compact outdoor gobo projector with adjustable zoom and focus. It is available with either Warm White or Cool White output. The Storm Form is also available in a DMX controllable version.
- Page 2 POWER AND WIRING REQUIREMENTS The Storm Form and Storm Form DMX have a maximum wattage of 9.6W and an operating voltage range of 12-24VDC. The Storm Form and Storm Form DMX include a single locking connector which combines both power and data into one compact cable.
-
Page 3: Mounting Instructions
426-8661). MOUNTING INSTRUCTIONS The Storm Form micro gobo projector comes with an aluminum mounting yoke pre-installed. It is meant to be used with ¼” size hardware, but please note that mounting hardware is not included with the fixture. The yoke has a hole and a curved slot. Install a screw in the center hole first, then loosely screw down a second screw through the curved slot. - Page 4 Once the fixture has been mounted, you can complete the aiming of the fixture. The fixture is adjustable in the following ways: When you have the light pointed in the correct orientation, tighten the locking screws in the indicated locations: Storm Form and Storm Form DMX User Guide Version 1.1 – 2/25/2021...
-
Page 5: Gobo Installation
GOBO INSTALLATION A gobo can be a great way to add texture and dimension to your application. The Storm Form micro gobo projector accepts glass and stainless steel gobos with an outer diameter of 19mm. The maximum image size for patterns is 15mm and the maximum image size for text is 10mm. Both stainless steel and full color glass gobos are available to fit the Gantom Form. - Page 6 Pro Tip: Don’t touch the lenses. A small fingerprint can distort your projection! If the lens must be cleaned, do so with a microfiber cloth and glasses cleaning solution. Unscrew the gobo retainer from the gobo holder ring. Storm Form and Storm Form DMX User Guide Version 1.1 – 2/25/2021...
- Page 7 Once the gobo is in place within the retainer system, you can focus your optics to your desired effect. Storm Form and Storm Form DMX User Guide Version 1.1 – 2/25/2021...
-
Page 8: Focal Adjustment
To widen the beam move the primary optic forward about 1 mm, and then move the secondary object backward along the optic slider rails toward the LED until the beam comes back into focus. Repeat this Storm Form and Storm Form DMX User Guide Version 1.1 – 2/25/2021... -
Page 9: Installing Accessories
INSTALLING ACCESSORIES A removable cutaway snoot for shielding the light source from view is available for the Storm Form. Installing the snoot: The snoot can be adjusted or removed by loosening the three set screws that are located toward the back of the snoot. You can then rotate the snoot to the appropriate position, and finally tighten down all three set screws. - Page 10 Apple device or Google Play for an Android device First, open the DMX Programmer app by Gantom. The app will open to the screen you see here. From this screen, select Generic Console. (note: a Storm Form DMX menu option...
-
Page 11: Control Screen
If the light does not see DMX signal when it is powered on, it will go to this state. Storm Form and Storm Form DMX User Guide Version 1.1 – 2/25/2021... - Page 12 DMX address through a sequence of flashes. By default, the DMX starting address will be 1. The Storm Form DMX will flash several times when it is powered on to indicate its starting address. If the Storm Form DMX is assigned to address 245 it will report its address by flashing 2 times, pausing briefly, then flashing 4 times, pausing briefly, then flashing 5 times.
-
Page 13: Stand-Alone Operation
STANDALONE OPERATION Some applications may not require live DMX control. In order to configure your Storm Form DMX for standalone operation, all you must do is use the CH1 slider on the Generic Console control screen to set the desired intensity level. Once the light has the desired output, tap the “STORE AS DEFAULT” button at the lower left portion of the screen to save this setting directly into the light fixture. -
Page 14: Dmx Channel Mapping
Product Support: We hope that this guide has been effective for learning how to use your Storm Form or Storm Form DMX light fixture. However, if you run into a wiring issue, a bug in the software, or just a light that doesn’t seem to want to cooperate, we at Gantom are ready to help you out! Just send an email to...
