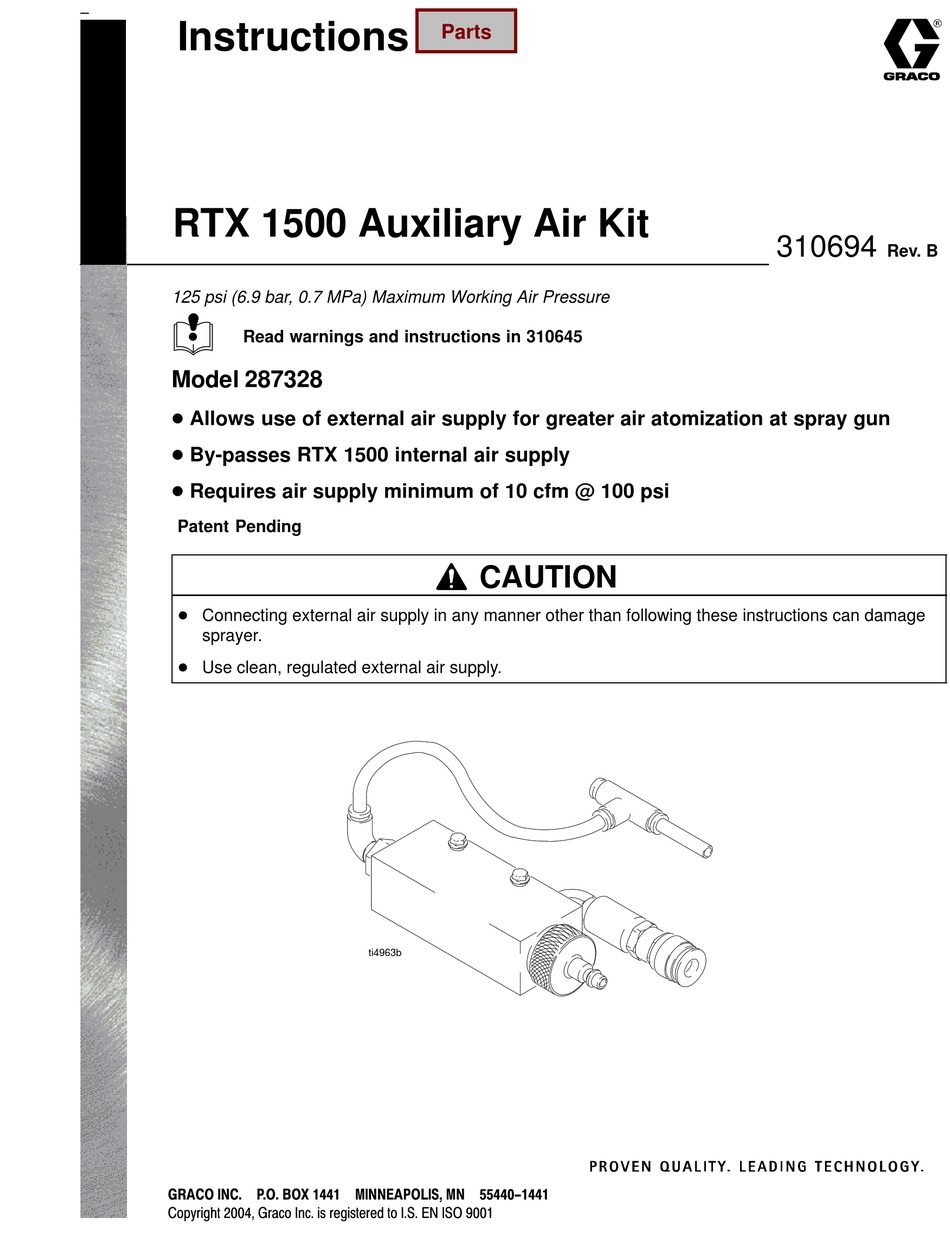

Instructions

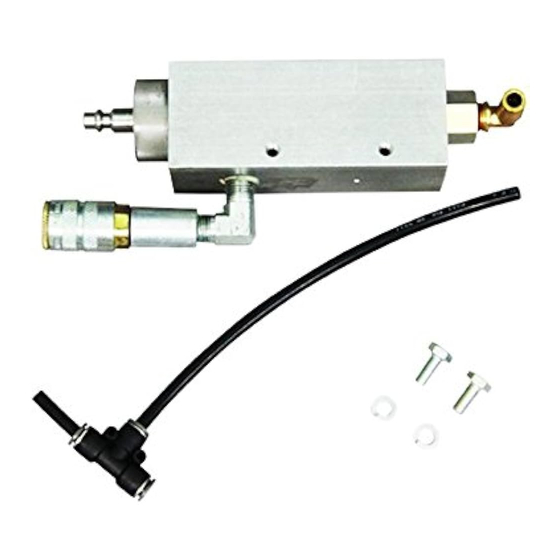

RTX 1500 Auxiliary Air Kit

125 psi (6.9 bar, 0.7 MPa) Maximum Working Air Pressure

Read warnings and instructions in 310645

Model 287328

D Allows use of external air supply for greater air atomization at spray gun

D By-passes RTX 1500 internal air supply

D Requires air supply minimum of 10 cfm @ 100 psi

Patent Pending

D Connecting external air supply in any manner other than following these instructions can damage

sprayer.

D Use clean, regulated external air supply.

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

Parts

CAUTION

ti4963b

310694

Rev. B

Need help?

Do you have a question about the RTX 1500 and is the answer not in the manual?

Page 1 D Connecting external air supply in any manner other than following these instructions can damage sprayer. D Use clean, regulated external air supply. ti4963b GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001...
Page 2 3. Open spray gun air valve (G) all the way. configuration. 4. Pull spray gun trigger and adjust air flow with air pressure regulator (H) (not supplied by Graco) on 1. Fig. 2. Connect external air supply (C) to valve male external air supply air fitting (D).
Page 3 Troubleshooting PROBLEM CAUSE SOLUTION Sprayer will not pump material Gun air valve (Fig. 2, G) not open com- Fig. 2. Open air valve (G) pletely Regulate air flow with air regulator (H) Dirty external air supply See Maintenance See Manual 310645 for further trouble- Determine cause shooting Sprayer will not stop pumping...
Page 4 Graco distributor to the original purchaser for use. With the exception of any special extended or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
