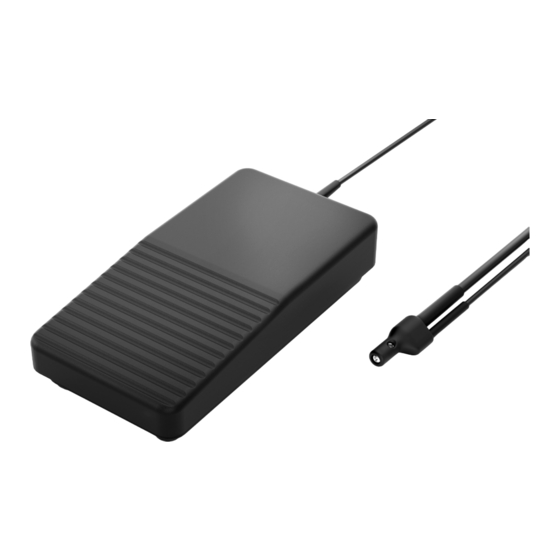

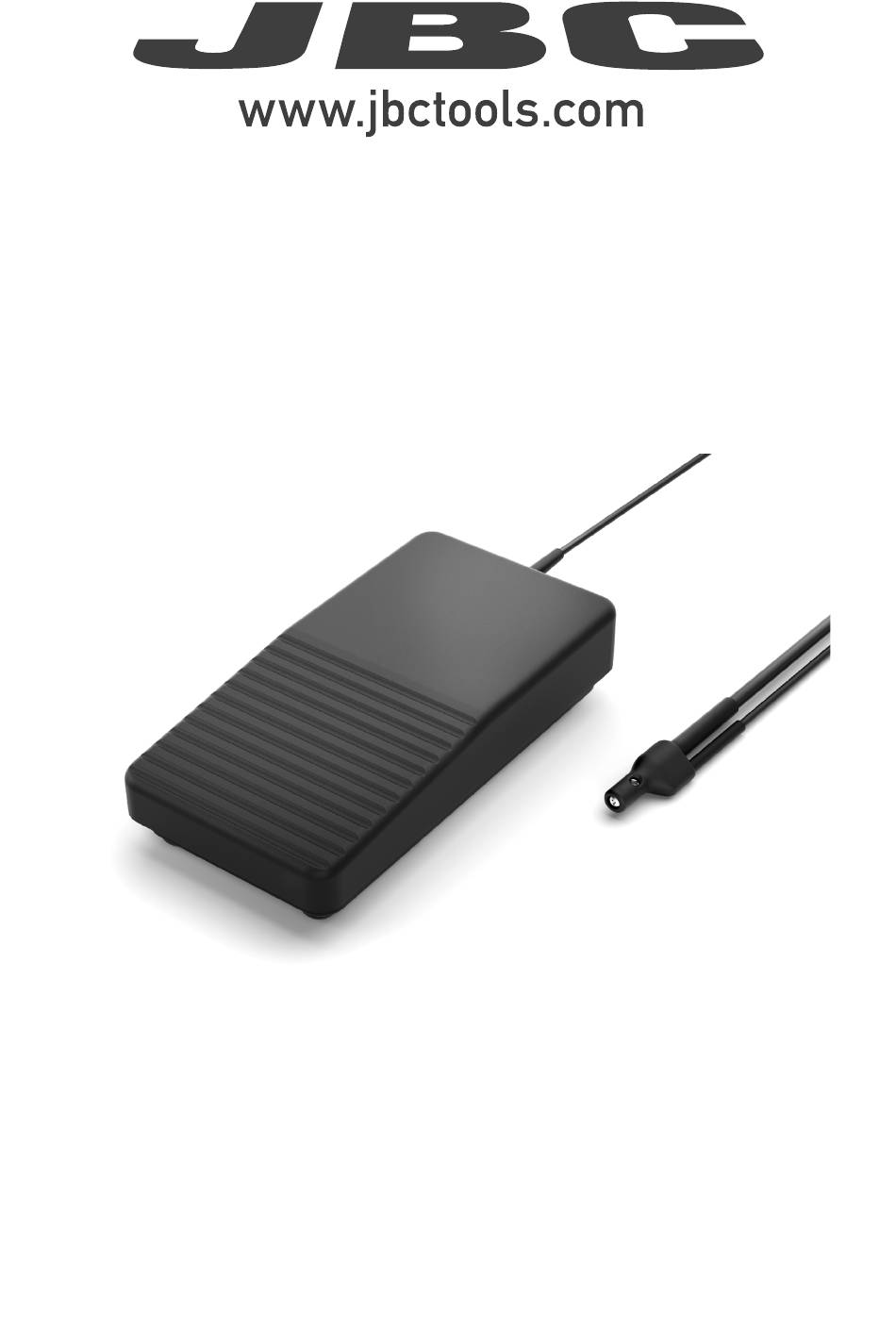

- Page 1 INSTRUCTION MANUAL P105 Pedal for NAST & NANT Stations...
- Page 2 This manual corresponds to the following references: P-105 Packing List The following items are included: Pedal .............1 unit Manual ............ 1 unit Ref. 0028919 Connection to NAST / NANT (Nano Soldering Station)
- Page 3 para manuales - color gris 200 mm DD U Assembly 130 mm 130 mm www.jbcto ols.com POR T 1 POR T 2 FAE/ ROBOT TOOL STATION Disassemble the tool holder from the station with a PERIP HERA LS 100 mm 1,5mm Allen key (1).
- Page 4 15.04 x 6.26 x 3.19 in / 1.33 lb Complies with CE standards ESD safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
