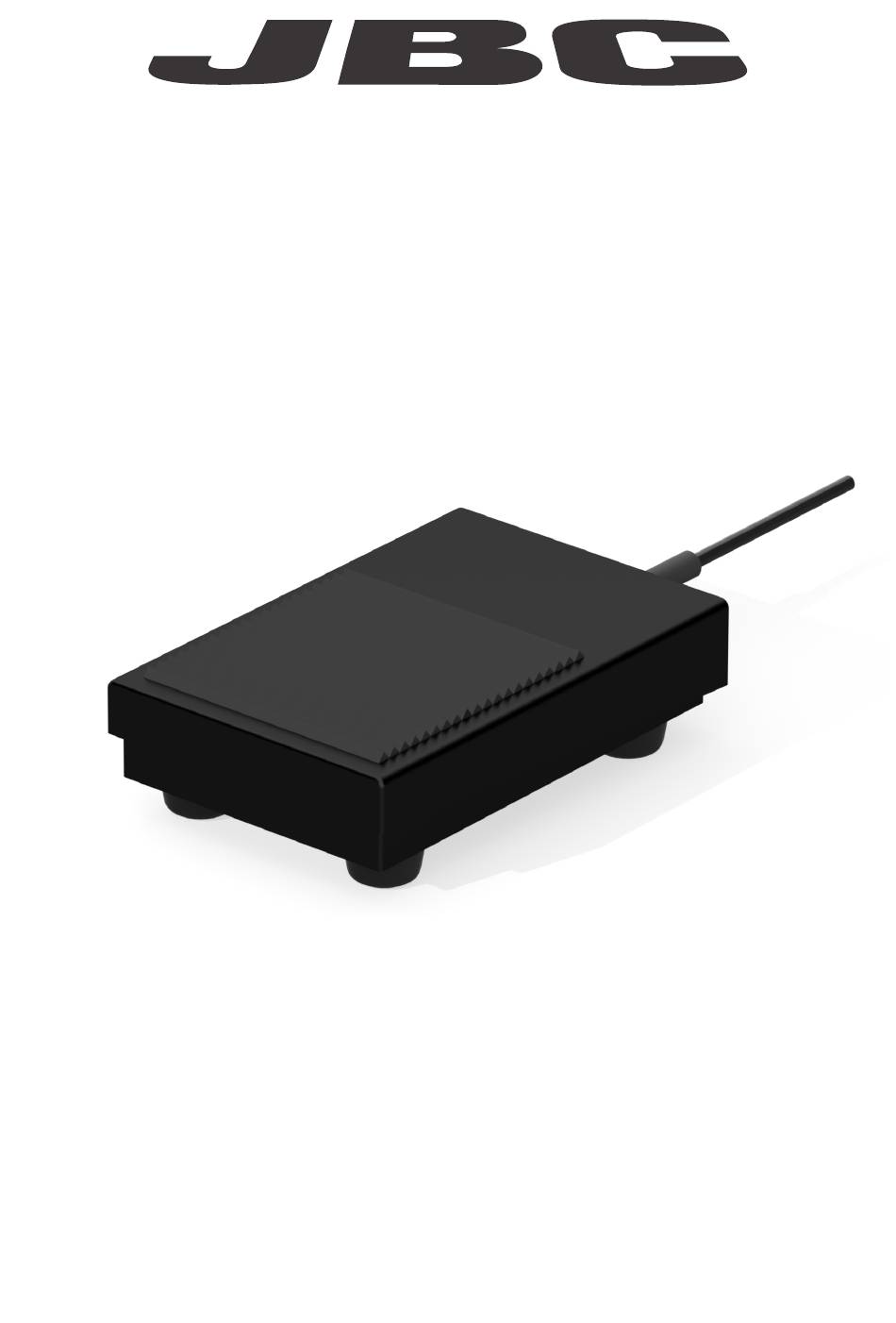

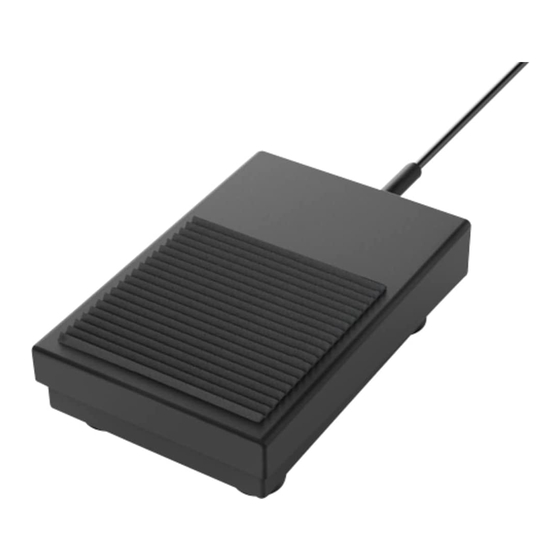

- Page 1 INSTRUCTION MANUAL Pedal Ref. P-405...
- Page 2 Packing List The followwing items are included: Pedal ..........1 unit Manual ......1 unit Ref. P-405 Ref. 0023904 w w w.jbctools.com INSTRUCTION MANUAL Pedal Ref. P-405 Installation for MSE, MVE, MNE and NAE Control Units Pedal Ref. P-405 Compatible modules NAE Control Unit Ref.
- Page 3 Press the pedal to start blowing hot air and release to stop. Hot Air control unit Ref. JTSE-UA Pedal Ref. P-405 Installation for PHSE/PHBE IR Preheater Press the pedal to start heating and press again to stop as if it was the button on the console. IR Preheater Ref.
- Page 4 Initial Set up for DME Control Unit 1. Enter the Peripherals Menu and join the pedal (PD) to the appropriate port. 17:14 Peripherals Press to select the port Peripherals are displayed according Port 4 to the order when Port 1 connected 2.
- Page 5 w w w.jbctools.com Initial Set up for DDE, HDE, NAE, JTSE or PHSE/PHBE Control Units 1. Enter the Peripherals Menu and select the port which you want to join to the pedal. 17:14 Peripherals Port 2-PA Pedal PD_a Module Select port 2.
- Page 6 Operation with tweezers The Pedal is frequently used to rework components with tweezers, thereby causing no thermal stress to the component until the solder joint is made. Pad cleaning Clean the pads with the desoldering tool DS360-A*. * Secondary station is needed. Solder paste dispensing Apply the solder paste amount needed to solder the new chip component.
- Page 7 w w w.jbctools.com Placing Press and hold the pedal and use the tool to position the component on the previously tinned pads. Soldering Once in position, press and hold the pedal to perform the soldering.
- Page 8 - Cable length: 1.9 m Complies with CE standards ESD safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
