- Page 1 INSTRUCTION MANUAL P005 Pedal + Adapter Kit...
-
Page 2: Packing List

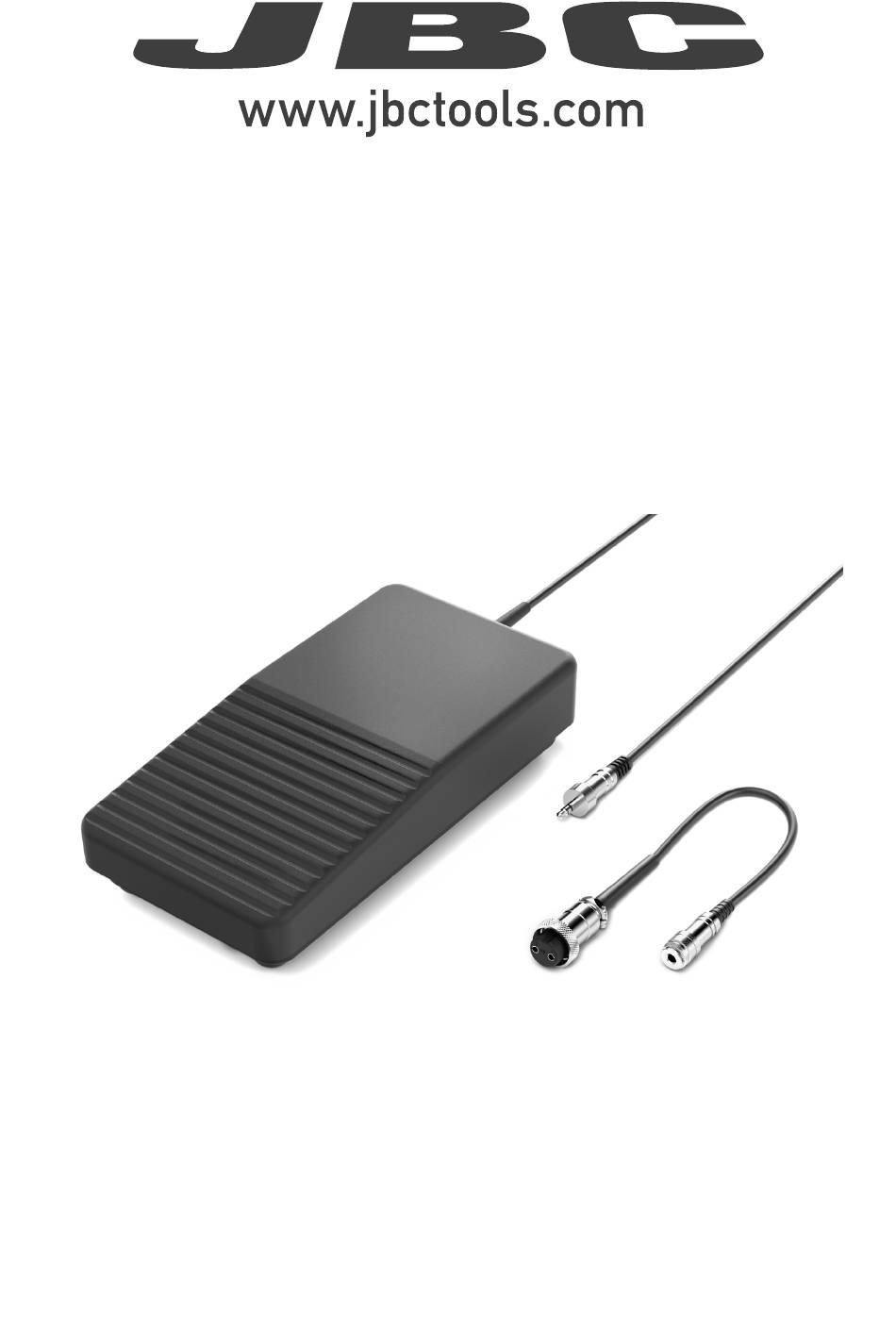

This manual corresponds to the following references: P-005 Packing List The following items are included: Pedal .............1 unit Adapter ............1 unit Manual ............ 1 unit Ref. 0028920... - Page 3 - color gris 200 mm Connection to Control Units or Peripherals 130 mm 130 mm Connect the pedal to JBC station or peripherals. The connector is identified by the designation “PEDAL”. 100 mm Pedal 80 mm Ref. P-005...
- Page 4 Pedal Compatibility P005 is compatible with JBC devices as shown in the table in the highlighted column. P305* and P405* is also shown in the table below. Marked with means pedal P005 cannot be connected directly to JBCs control unit. A module must be used (See next pages “Pedal Set Up”).
- Page 5 para manuales - color gris 200 mm Pedal Set Up for: 130 mm 130 mm - DDU, HDU, NAU, JNAU, JTU, ALU (Control Units) - PHNK, PHSK, PHBK, PHXK (Preheaters) 100 mm Note: Peripheral moduls - MSE, MVE or MNE - are needed to connect the pedal to DDU y HDU. 1.
- Page 6 Pedal Set Up for DMU (Control Unit) Note: Peripheral moduls - MSE, MVE or MNE - are needed to connect the pedal to DMU. After connecting one of the mentioned moduls to the station a popup window opens. 1. To configure the module MSE/MVE/MNE press Setup in the popup window. 17:14 Peripherals Port...
- Page 7 para manuales - color gris 200 mm Pedal Set Up for FAE1, FAE2 130 mm 130 mm (Fume Extractors) 1. Enter the Main Menu and select Port. 100 mm M a i n m e n u M a i n m e n u Exit 1 Reset 2 Unit...
- Page 8 Pedal Set Up for AL (Auto Feed Soldering Station) The choosed wire dispensing operation mode will be applied for the tool button as well as for the pedal activation. The working mode can be switched to: - Continous: Solderwire is being fed constantly as long as the pedal or the tool button is activated. - Discontinous: A predetermined solder wire amount is being fed every time the pedal or tool button is being pressed.
- Page 9 The Pedal is frequently used to rework components with tweezers. 100 mm The adjustable micro tweezers of the AM120 JBC not only provide a perfect solution for SMD chip components and small/medium SOP of PCB assemblies, but also facilitate their quick placement and 80 mm soldering using the P005 pedal.
- Page 10 Desoldering Iron For this operation JBC´s desoldering station DSS is needed. Solder Paste Dispensing Manual Solder Paste Dispenser Apply the solder paste amount needed to solder the new chip component. The use of JBC´s DPM solder paste dispenser is recommended.
- Page 11 para manuales - color gris 200 mm 130 mm 130 mm 100 mm 80 mm 60 mm Placing Do not press the pedal. 50 mm Use the tool to position the component on the previously tinned pad. 40 mm Note: The inactive tool prevents the component from heating up prematurely.
-
Page 12: Specifications
11.81 x 4.92 x 2.56 in / 1.23 lb Complies with CE standards ESD safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
