INSTRUCTION MANUAL
P405
Pedal

Advertisement

loading
Need help?

Need help?

Do you have a question about the P405 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for jbc P405

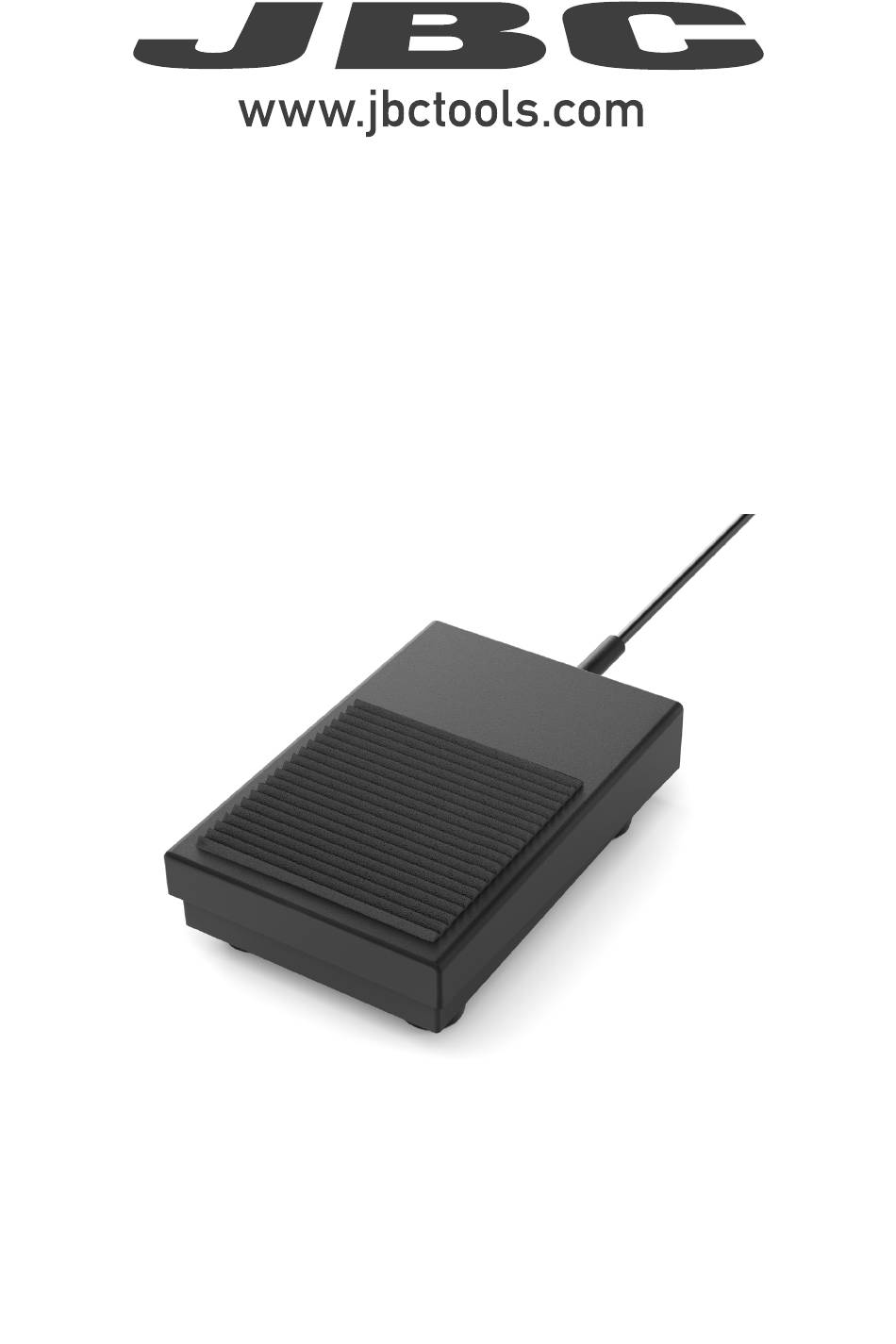

  • Page 1 INSTRUCTION MANUAL P405 Pedal...
  • Page 2: Packing List

    This manual corresponds to the following references: P-405 Packing List The following items are included: Pedal ..............1 unit Manual ............ 1 unit Ref. 0028917 Connections Connect the pedal to JBC station or peripherals. The connector is identified by the designation “PEDAL”. Pedal Ref. P-405...
  • Page 3 200 mm Pedal Compatibility 130 mm 130 mm P405 is compatible with JBC devices as shown in the table in the highlighted column. P305* and P005* is also shown in the table below. 100 mm Marked with means pedal P405 cannot be connected directly to JBCs control unit. A module must be used (See next pages “Pedal Set Up”).
  • Page 4 Pedal Set Up for: - DDU, HDU, NAU, JNAU, JTU, ALU (control units) - PHNK, PHSK, PHBK, PHXK (preheaters) Note: Peripheral moduls - MSE, MVE or MNE - are needed to connect the pedal to DDU y HDU. 1. Enter the Peripherals Menu and select the port which you want to join to the pedal. 17:14 Peripherals Port 2-PA...
  • Page 5 para manuales - color gris 200 mm Pedal Set Up for FAE1, FAE2 130 mm 130 mm (fume extractors) 1. Enter the Main Menu and select Port. 100 mm M a i n m e n u M a i n m e n u Exit 1 Reset 2 Unit...
  • Page 6 Pedal Set Up for DMU (control unit) Note: Peripheral moduls - MSE, MVE or MNE - are needed to connect the pedal to DMU. After connecting one of the mentioned moduls to the station a popup window opens. 1. To configure the module MSE/MVE/MNE press Setup in the popup window. 17:14 Peripherals Port...
  • Page 7 The Pedal is frequently used to rework components with tweezers. 100 mm AN115 JBCs adjustable nano tweezers is the most effective tool for desoldering chip components but also it facilitates its rapid placement and soldering by using P405 pedal connected to JBC´s NAS 80 mm station.
  • Page 8 Desoldering Iron For this operation JBC´s desoldering station DSS is needed. Solder Paste Dispensing Manual Solder Paste Dispenser Apply the solder paste amount needed to solder the new chip component. The use of JBC´s DPM solder paste dispenser is recommended.
  • Page 9 para manuales - color gris 200 mm 130 mm 130 mm 100 mm 80 mm 60 mm Placing Do not press the pedal. 50 mm Use the tool to position the component on the previously tinned pad. 40 mm Note: The inactive tool prevents the component from heating up prematurely.
  • Page 10 Notes...
  • Page 11 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 12: Specifications

    6.10 x 3.35 x 2.17 in / 0.56 lb Complies with CE standards ESD safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
