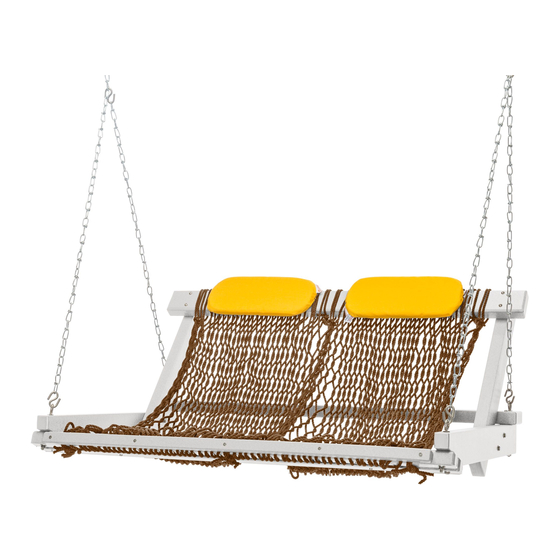

48" DOUBLE ROPE SWING
I N ST R U C T I O N S
NOTE. Instructions not to scale.
CHAIN SET
• CHAIN SETS: (2)
Eye Bolts, nuts, and washers attached
SHORT
SHORT
CHAIN
CHAIN
FRONT
FRONT
LONG
LONG
CHAIN
CHAIN
FRONT
FRONT
NOTE. Add chains after
completing assembly.
HARDWARE PACK
(6) 4.5" Barrel Bolts
(6) 1" Barrel Nuts
(2) 2.25" Hex Bolt
(4) 3.5" Hex Bolts
SUGGESTED TOOLS
• Rubber Mallet
• Adjustable Wrench
ASSEMBLY
STEP 1. Arrange 2 side frames approximately 48" apart. Using Front
Cross support secure with (1) 2.25" Hex Bolt into the insert on each side.
Align back Cross Support and secure with (1) 4.5" Barrel Bolt per side.
NOTE. Do not tighten bolts until Step 4.
2.25" Hex Bolt
(2) Tree Hooks and
chain sets
(1) Allen Wrench
(4) Lock-nuts
(8) Washers
• Phillips Head Screwdriver
4.5" Barrel Bolt
Barrel Nut
