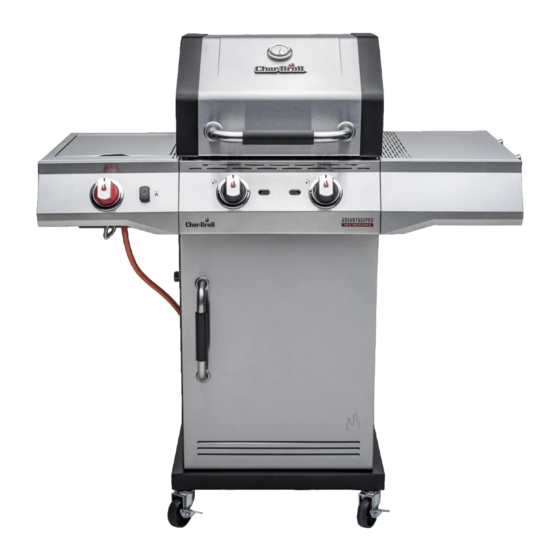

ADVANTAGE
PRO SERIES
2 BURNER
MODEL NUMBER
468173222
468505222
2
9
16
23
30
36
42
48
54
60
66
72
78
84
90
96
102
108
114
120
NB 0359
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
126
2531DM0059
G327-001-120801 • 06/09/2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADVANTAGE PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Char-Broil ADVANTAGE PRO Series

Summary of Contents for Char-Broil ADVANTAGE PRO Series

  • Page 1 ADVANTAGE PRO SERIES 2 BURNER MODEL NUMBER 468173222 468505222 2531DM0059 NB 0359 G327-001-120801 • 06/09/2022...
  • Page 2 INSTALLER/ASSEMBLER: WARNING Leave this manual with consumer. CONSUMER: For Safe Use of Your Appliance and to Avoid Keep this manual for future reference. Questions: Serious Injury: If you have questions during assembly or use of this appliance • USE OUTDOORS ONLY. NEVER USE INDOORS. contact your local dealer.

  • Page 3: Match-Lighting

    Safety Tips Ignitor Lighting Before opening gas cylinder valve, check the regulator for Ÿ • Do not lean over barbecue while lighting. tightness. 1. Turn gas burner control valves to (off). When appliance is not in use, turn off all control knobs and Ÿ...
  • Page 4 Sear Burner Ignitor Lighting Do not lean over barbecue while lighting. 1.Turn gas burner control valves to OFF. 2.Open lid during lighting or re-lighting. 3.Turn ON gas at LP cylinder. SPIDER AND WEBS 4.Turn Sear Burner knob to the HIGH position, push and INSIDE BURNER hold ELECTRONIC IGNITOR button.

  • Page 5: Storing Your Appliance

    • After approximately 12 – 15 minutes, adjust all main burners to OFF setting and allow grill to cool • Once the grill is cool, use a Char-Broil Cool-Clean Brush to remove any remaining debris and dispose of the ash •...
  • Page 6 IMPORTANT! PLEASE READ! A regulator must be used with this appliance. Use only the gas regulator supplied with your barbeque. If a regulator is not supplied then use only a regulator certified according to EN16129 (Flow rate max. 1.5 kg/h) and approved for your country and gas specified in Technical Data.
  • Page 7 (not included) works perfectly with idue can be scrubbed away with a sponge and your Searing Side Burner. Note that this is not a baking soda/water solution or Char-Broil ™ the griddle included with your grill, which should Grate Cleaner.
  • Page 8 TECHNICAL DATA CHAR-BROIL, LLC Appliance Name Gas Barbeque/Gas Grill Total Nominal Heat Input 9,68 kW (704 g/h) 9,68 kW (704 g/h) Gas Category I3+(28-30/37) I3B/P(30) I3B/P(50) Model No. 468173222 468505222 Butane, Propane or their Gas Type Butane Propane Butane, Propane or their...

  • Page 9: Hardware List

    ASSEMBLY HARDWARE LIST Description Picture Caster Pin 1/4-20×1/2" Screw #8X3/8" Tapping Screw NO.10-24 ×1/2" Screw NO.10-24 Nut 1/4×3/4" Screw Assy Ø6.5 AI Washer Ø5 Lock Washer Ø5 Washer Hose clip 1/4-20 Nut CHARBROIL.EU P a g e 1 2 6...

  • Page 10: Parts List

    ASSEMBLY PARTS LIST Description Description TOP LID SIDEBURNER VALVE BRACKET HANDLE, TOP LID WIRE CLIP LOGO PLATE GREASE TRAY, F/ SEAR SIDEBURNER RUBBER BUMPER, F/ TOP LID BEZEL, F/ SIDEBURNER TEMPERATURE GAUGE CART SIDE PANEL, LEFT BEZEL, F/ TEMP GAUGE CART SIDE PANEL, RIGHT HARDWARE F/ TOP LID ASSEMBLY FRONT DOOR BRACE...
  • Page 11 ASSEMBLY DIAGRAM #22 For 468173222 #22 For 468505222 CHARBROIL.COM P a g e 1 2 8...
  • Page 12 ASSEMBLY NOTE: DO NOT over tighten screws and washers that come into contact with porcelain coated surfaces. Over tightening may cause the porcelain coating to crack and break, resulting in exposed metal that will be prone to rust. Note: Place bottom shelf upside down on table for assembly of casters. Ensure magnet housing is hanging off the table to avoid scratching or deforming the part.
  • Page 13 ASSEMBLY CHARBROIL.EU P a g e 1 3 0...
  • Page 14 ASSEMBLY CHARBROIL.EU P a g e 1 3 1...
  • Page 15 ASSEMBLY TIGHTEN SECURELY! KIRISTÄ HUOLELLISESTI! PEVNĚ UTÁHNĚTE! FASTSPÆND KORREKT! DRAAI STEVIG AAN! DRA ÅT ORDENTLIGT! FEST GODT! HERTU VANDLEGA SERREZ FERMEMENT SICHER BEFESTIGEN! SERRARE SALDAMENTE APRIETE FIRMEMENTE BEZPEČNE ZATIAHNUŤ! ‫הדקבחוזקה‬ AFTENGDU TANKINN EFTIR ÞESSA SKOÐUN! ЗАДАЧИ СЕКРЕТНО! BIZTONSÁGÁVAL! ATENȚIE SECURAL! ΑΣΦΑΛΕΙΑΣ...
  • Page 16 LEAK CHECK FOR 468505222 Disconnect the tank after this check! Ontkoppel de gastank na deze controle! Koppla från tanken efter denna kontroll! Koble fra beholderen etter denne kontrollen! Po kontrole nádobu odpojte! Po této kontrole odpojte nádrž! Irrota säiliö tämän tarkistuksen jälkeen! Framontér tanken efter denne kontrol! Αποσυνδέστε...
  • Page 17 LEAK CHECK FOR 468173222 Disconnect the tank after this check! Ontkoppel de gastank na deze controle! Koppla från tanken efter denna kontroll! Koble fra beholderen etter denne kontrollen! Po kontrole nádobu odpojte! Po této kontrole odpojte nádrž! Irrota säiliö tämän tarkistuksen jälkeen! Framontér tanken efter denne kontrol! Αποσυνδέστε...
  • Page 18 ASSEMBLY CHARBROIL.EU P a g e 1 3 5...
  • Page 19 ASSEMBLY CHARBROIL.EU P a g e 1 3 6...
  • Page 20 ASSEMBLY Tighten the screws Tighten the screws CHARBROIL.EU P a g e 1 3 7...
  • Page 21 ASSEMBLY CHARBROIL.EU P a g e 1 3 8...
  • Page 22 ASSEMBLY Tighten the screws Tighten the screws CHARBROIL.EU P a g e 1 3 9...
  • Page 23 ASSEMBLY CHARBROIL.EU P a g e 1 4 0...
  • Page 24 ASSEMBLY CHARBROIL.EU P a g e 1 4 1...
  • Page 25 ASSEMBLY CHARBROIL.EU P a g e 1 4 2...
  • Page 26 ASSEMBLY Inspect your infrared grate before each use to ensure that the openings are not covered with debris. See the Grilling Guide for detailed cleaning instructions. Inspectez votre grille infrarouge avant chaque utilisation pour vous assurer que les orifices ne sont pas CH, FR recouverts de débris.
  • Page 27 ASSEMBLY Small-3 Large-2   CHARBROIL.EU P a g e 1 4 4...
  • Page 28 ASSEMBLY CHARBROIL.EU P a g e 1 4 5...
  • Page 29 ASSEMBLY CHARBROIL.EU P a g e 1 4 6...
  • Page 30 ASSEMBLY CHARBROIL.EU P a g e 1 4 7...
  • Page 31 ASSEMBLY CHARBROIL.EU P a g e 1 4 8...
  • Page 32 ASSEMBLY CHARBROIL.EU P a g e 1 4 9...
  • Page 33 ASSEMBLY Leak test before first use, at least once per year, and every time the gas tank is changed or disconnected. Faites un test d'étanchéité avant la première utilisation, au moins une fois par an et à chaque fois que le réservoir CH, FR de gaz GPL est changé...

  • Page 34: Warranty Statement

    Before returning any parts, you should promptly contact Char-Broil using the contact information on our website. In case of a defect, Char-Broil will elect to replace or repair the product or such parts without charge. .
  • Page 35 Char-Broil® Europe GmbH Paul-Dessau-Straße 8 Quartier O – 4.OG D-22761 Hamburg...
