Load The Updated Configuration File; Using The Fs-Gui To Load A Configuration File - MSA fieldserver QuickServer FS-QS-2XX0-F Operating Manual

8.3

Load the Updated Configuration File

8.3.1 Using the FS-GUI to Load a Configuration File

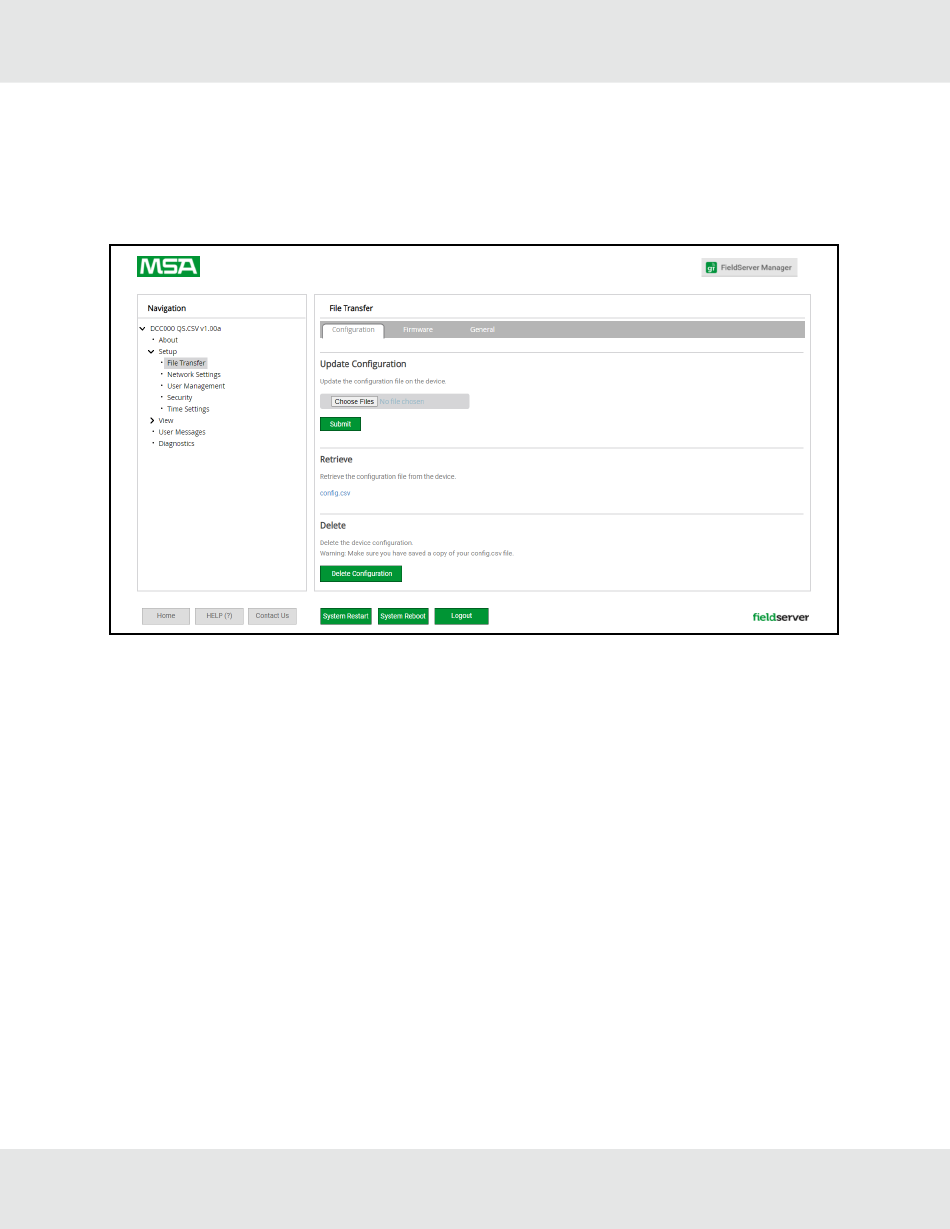

• In the main menu of the FS-GUI screen, click "Setup", then "File Transfer" and finally "Update".
• Browse and select the .csv file, open, then click "Submit".
• Once download is complete, a message bar will appear confirming that the configuration was updated successfully.
• Click the System Restart Button to put the new file into operation.
NOTE: It is possible to do multiple downloads to the QuickServer before resetting it.
23 QuickServer Start-up Guide
