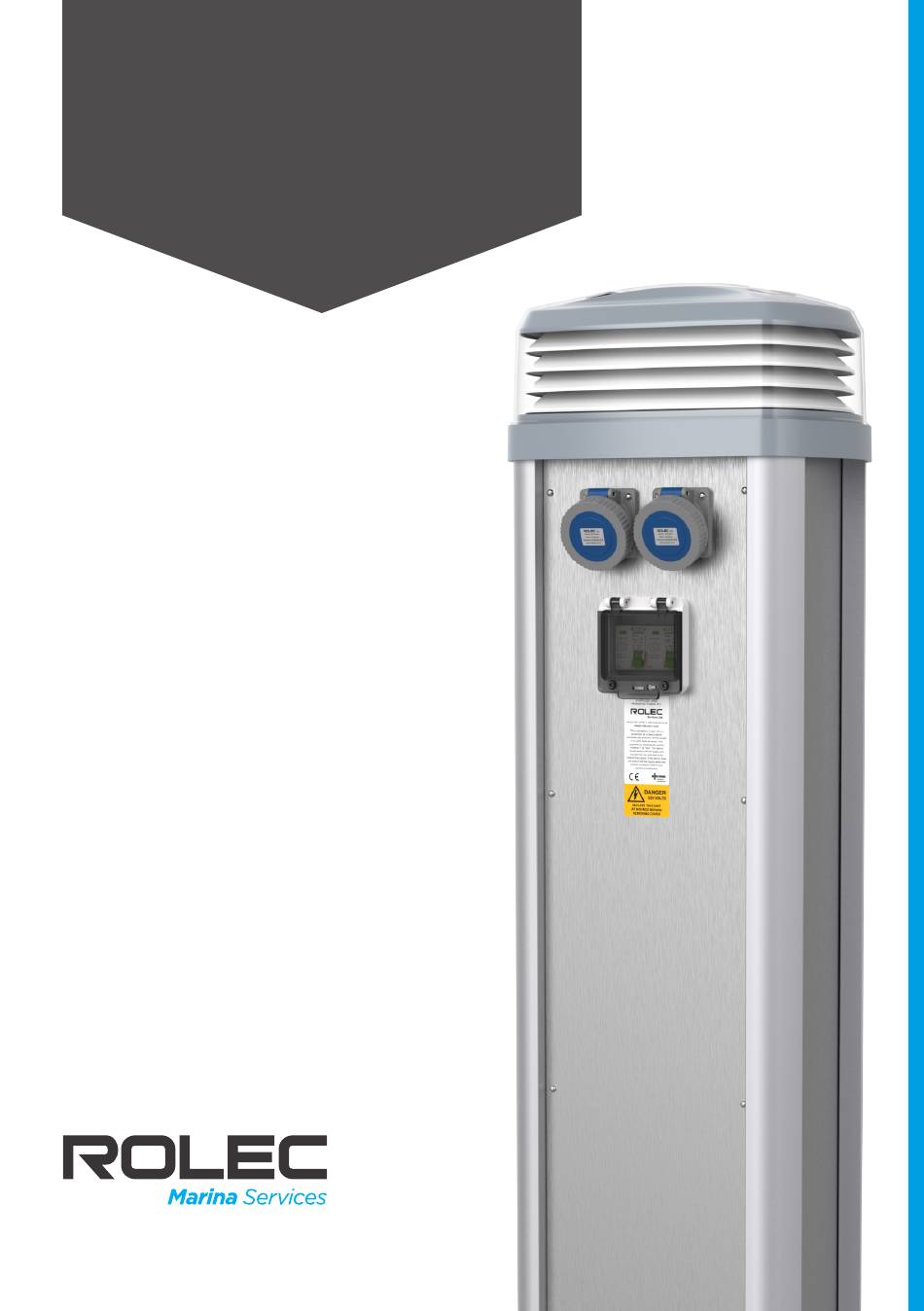

- Page 1 QUANTUM PEDESTAL INSTALLATION & OPERATION MANUAL Installation & Operation Manual - QMPM-01-V01-R7 April 2023...
- Page 2 Date Published: April 2022 Rolec Services Ltd are the publishers of this document and own the rights to use the text, images and all technical content contained within. Content supplied by third parties / partner organisations remains the property of that organisation and is used by agreement with the supplier.
-
Page 3: Table Of Contents
Safety Contents Safety Safety Advice within this Manual Product Overview Product Specification Physical Specification Electrical Specification Water Specification Certifications and Compliances Schematics Labelling Options and Accessories Unpacking Typical Contents Installation Before Installation Ground Mounting – if a Mounting Base is Supplied Ground Mounting –... -
Page 4: Safety
Rolec Services Ltd cannot accept any responsibility for improper installation or any problems arising from improper installation. NOTE: Damage to the equipment, connected systems or to property caused by improper installation/use are the responsibility of the installer/user. -
Page 5: Product Overview
The pedestal may be paired with the Rolec BerthMaster application to allow remote management of the pedestal and its services by both the marina operator and the pedestal user. - Page 6 Product Overview 1250mm MAQR0310 1X16A Socket / 1X16A RCBO / LED ILLUMINATION MAQR0310/KWH 1X16A Socket / 1X16A RCBO / LED ILLUMINATION / KWH METER MAQR0310/KWH/TAP 1X16A Socket / 1X16A RCBO / LED ILLUMINATION / KWH METER /T AP MAQR0310/TAP 1X16A Socket / 1X16A RCBO / LED ILLUMINATION / TAP MAQR0320 2X16A Socket / 2X16A RCBO / LED ILLUMINATION / 1X100A ISOLATOR MAQR0320/KWH...
- Page 7 Product Overview NOTES: 1. * ‘BerthMaster only’ components. 2. Meters may be connected to the Berthmaster system. 3. Pipework may be plastic or copper as appropriate. 4. Item 4. LED Unit is replaced by a single GX53 LED light in later models.
-
Page 8: Product Specification
-30°C to +60°C operating temperature range Environmental IP66 Weather resistance IK10 Impact resistance Flame retardant to UL94 Flame Rating at V2 Figure 2 Quantum Pedestal Dimensions A: 750mm, 1000mm, 1250mm, 1500mm B: 940mm, 1190mm, 1440mm, 1690mm C: 360mm D: 382.5mm... -
Page 9: Electrical Specification
Product Specification Electrical Specification Sockets 16A Single Phase to 250A Three Phase Input Voltage 230V Single Phase to 400V Three Phase Overload & Fault MCBs IEC 60898-1 Current Protection RCD or RCBO BS EN IEC 61009-1 Output Voltage 230V / 400V Isolation –... -
Page 10: Schematics
Product Specification Schematics The Quantum Marina Pedestal is available in 4 heights and 4 different configurations: Socket(s) only Socket(s) + kWh Meter Socket(s) + Tap Socket(s) + kWh Meter + Tap Refer to the 4-socket schematic for wiring of the 2 and 3 socket models. EARTH IN ACCORDANCE WITH CURRENT... - Page 11 Product Specification EARTH IN ACCORDANCE WITH CURRENT REGULATIONS Figure 4 Typical Single Socket + kWh Meter (Pipework may not be present) MQPM-01-V01-R7 Installation and End User Manual Quantum Marina Pedestal April 2023 Page 10 of 23...
- Page 12 Product Specification Figure 5 Typical Four Socket (Pipework may not be present) NOTE: For 2 and 3 socket models, ignore wiring shown above for sockets 3 and/or 4 as appropriate. Quantum Marina Pedestal MQPM-01-V01-R7 Installation and End User Manual Page 11 of 23 April 2023...
- Page 13 Product Specification Figure 6 Typical Four Socket + kWh Meter (Pipework may not be present) NOTE: For 2 and 3 socket models, ignore wiring shown above for sockets 3 and/or 4 as appropriate. MQPM-01-V01-R7 Installation and End User Manual Quantum Marina Pedestal April 2023 Page 12 of 23...
- Page 14 Product Specification EARTH IN ACCORDANCE WITH CURRENT REGULATIONS Figure 7 Example of a 3-Phase Pedestal with Different Socket Outputs Quantum Marina Pedestal MQPM-01-V01-R7 Installation and End User Manual Page 13 of 23 April 2023...
-
Page 15: Labelling
Unpacking Labelling Users must observe the information given on labels to ensure safe use of the product. Figure 9 Power Warning Labels as Appropriate Figure 8 Typical Product Label NOTE: Sockets are individually labeled with their power rating as appropriate. Options and Accessories Berthmaster remote management. -
Page 16: Installation
Rolec Services Ltd cannot accept any responsibility for improper installation or any problems arising from improper installation. NOTE: Damage to the equipment, connected systems or to property caused by improper installation/use are the responsibility of the installer/user. -
Page 17: Ground Mounting - If A Mounting Base Is Supplied
Installation Ground Mounting – if a Mounting Base is Supplied 1. Prepare the ground and set the ground mounting base in the desired location. Make sure ALL cables are fed upward through the middle of the base. 2. Concrete the base into place and allow time for it to set. The lip of the base should be 2 –... - Page 18 Installation 6. Carefully lift the pedestal then lower it over the cable / pipe and onto its mounting position. If a Ground Mounting Base has been used, align the four holes in the chassis with the four studs of the base. 7.
- Page 19 Installation IMPORTANT NOTE: It is the responsibility of the installing engineer to satisfy themselves that all cable terminations throughout this product are secure and tight and have not become loose, strained or disconnected during transit and/or installation. It is the responsibility of the installing engineer to satisfy themselves, that the water connection has been performed in accordance with the current legislation in the region of use.
-
Page 20: Commissioning
Installation Commissioning Before handing over to the customer: Switchgear Test the switchgear protecting each socket in accordance with the regulations. Socket Test the polarity of each socket in accordance with the regulations. Meters If fitted, make sure meters are functioning. LED Lamp The pedestal incorporates an area illumination lamp which activates in response to changing light levels. -
Page 21: Operation
Operation Handover 1. Make sure the pedestal is NOT covered and all plastic packaging has been removed. Even in temperate climates, plastic packaging can cause localised heating of the pedestal that may result in temporary or permanent component failures. 2. Make sure this manual is given to the customer along with copies of any installation paperwork. - Page 22 Maintenance 3. Water systems must be allowed to flow on a regular basis to reduce the opportunity for calcification or other accumulations of water born solids which may cause water meter inaccuracy or failure. If a water system has not been used for several weeks, the system should be allowed to flow, and meter accuracy should be assessed before relying on meter readings for billing.
-
Page 23: Replace The Led Bulb
Maintenance Replace the LED Bulb The LED bulb in the lighting head can be easily replaced. IMPORTANT: Only install a bulb of the same specification. Heat from other types of bulb may damage the pedestal. Bulb Type: GX53 LED Power: 9W / 230 - 240 Volts Colour Temperature: 4000K WARNING: Electrical Power Turn OFF electrical power to the pedestal before starting work. - Page 24 Maintenance 4. Inside the pedestal, locate and remove 2x 5 mm hex bolts and washers that secure the clear dome to the dome base. Take care to not drop the bolts and washers when they are released from the dome. 5.
