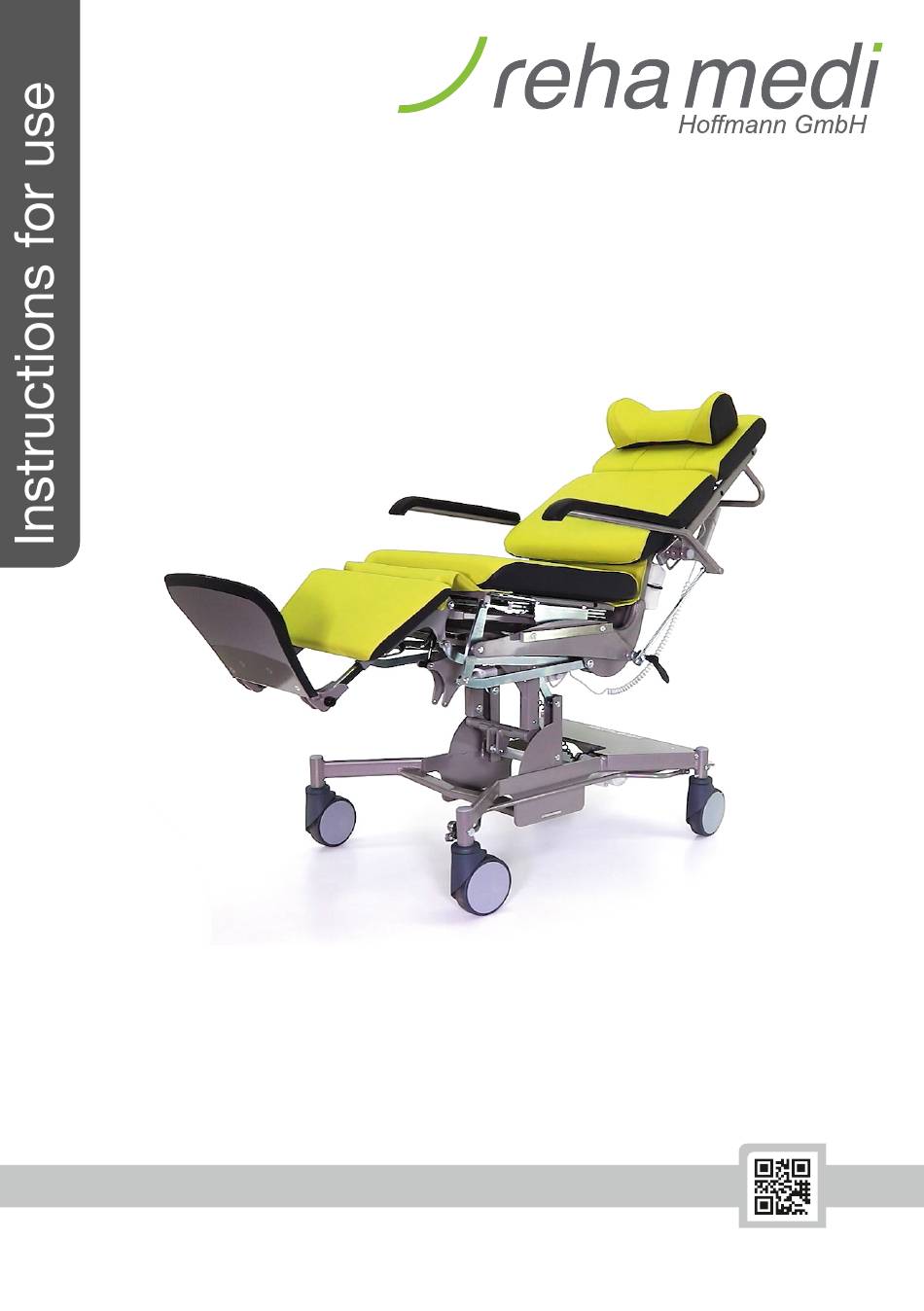

- Page 1 Mobilizer Norbert www.rehamedi.de...
-
Page 2: Table Of Contents
Instructions for use Mobilizer Norbert Table of contents Information on the instructions for use Preface and general information ..... 3 Version: Copyright............4 Date of issue: 02.05.2023 Disclaimer............4 Language: English Definition of groups of persons ....... 5 Description and purpose ......... 6... -
Page 3: Preface And General Information
Mobilizer Norbert. Furthermore, it is intended to make it easier for you to get to know the Mobilizer Norbert and to give you instructions for its proper use and safe operation. -
Page 4: Copyright
Instructions for use Mobilizer Norbert 1.1 Copyright These operating instructions, including all their parts and illustrations, are protected by co- pyright. The rights to translation, reprinting, extraction of pictorial representations as well as reproduction and storage in data processing systems are reserved, even if only excerpts are used. -
Page 5: Definition Of Groups Of Persons
Operator is any natural or legal person responsible for the operation of the healthcare facility in which The Mobilizer Norbert is applied by its employees. User is medical and nursing staff who use the product for mobilisation after instruction by the operator. -
Page 6: Description And Purpose
To support both feet, there is a footrest that can be adjus- ted to the length of the lower leg. If it is not needed, it can be stowed behind the padding of the leg rest. Mobilizer Norbert has four large, swivelling castors that ensure easy manoeuvrability. The central brake unit can be used to fix one directional castor as well as to operate the parking brakes. -
Page 7: Indication
• The patient's body weight must not exceed 250 kg. The Mobilizer Norbert must not be used if a patient has failed the examination of a profes- sional with medical competence. -
Page 8: Permissible Operating Conditions/Place Of Use8
Instructions for use Mobilizer Norbert 3. Permissible operating conditions/place of use The Mobilizer Norbert is intended for indoor use. If it is necessary to drive over steps or thresholds, these must be sloped or a ramp must be created. The ramps or an inclined plane may have a maximum gradient of seven degrees. -
Page 9: Safety Instructions
5. Safety instructions Safety and warning notices on the mobilizer Safety and warning notices in the form of pictograms and stickers are attached to the Mo- bilizer and to any equipment supplied. These must not be changed or removed. Defective or damaged notices must be replaced immediately. - Page 10 ATTENTION! Mobilizer Norbert is not suitable as a climbing aid, nor is it permitted to sit down on the backrest or foot end. An impermissible load can cause the Mobi- lizer Norbert to tip over.
- Page 11 5.3 Operational capability Before and during the use of Mobilizer Ottfried and its accessories, further instructions listed below must be observed: • Care must be taken to ensure that the adjustment processes take place without collision, continuously and almost noiselessly. •...
-
Page 12: Products Mechanical Adjustment
Instructions for use Mobilizer Norbert 5.4 Products mechanical adjustment If your Mobilizer Norbert is equipped with a hydromechanical adjustment via pump lever, the following additional safety instructions apply: • The gas springs and the hydraulic drive must be free of external damage. No oil may leak from the manual lifting device. -
Page 13: Electromotive Height Adjustment
Fig. 5: Electromotive height adjustment 7. Backrest adjustment By tilting the backrest, Mobilizer Norbert can be adjusted from a flat lying surface to a sitting position (see Fig. 5). Synchronously with the inclination of the backrest, the leg rest is also lowered or raised. -
Page 14: Transfer
To get out forward, the seat of Mobilizer Norbert is tilted forward as far as it will go and the footrest is stowed under the calf pad. In this position, an attendant can help the patient out of Mobilizer Norbert with minimal effort while observing kinaesthetic principles. -
Page 15: Armrests
11. Armrests The armrests provide support for the patient without limiting the seat width. They lower automatically to the level of the seat cushion when adjusted to the couch, facilitating the prone la- teral transfer of patients. For seated transfer or lateral sitting, it is possible to swivel the armrests upwards individually (see Fig. -
Page 16: With Manual Footrest Adjustment
Fig. 14: Brake lever ATTENTION! To prevent unintentional rolling away, the parked Mobilizer Norbert must al- ways be braked. Copyright © Reha & Medi Hoffmann GmbH. All rights reserved! -
Page 17: Battery Change
The battery is inserted into the charging station in the same way as on the battery holder on the Mobilizer Norbert (see Fig. 17). Please also observe the general safety instructions (chapter 5). The charging station should preferably be mounted vertically on a wall (see Fig. -
Page 18: Equipment Options
Instructions for use Mobilizer Norbert 15. Equipment options neck cushion Fixing headrest Table with upholstery Chest strap Positioning cushion Chest strap Positioning cushion calf belt Leg strap Lap belt Fig. 19: Recommended equipment 15.1 Headrest, fixing This headrest is fitted in place of the standard neck pad and has an additional strap to se- cure the head over the patient's forehead (see Fig. -
Page 19: Straps
Pressing the bar in the direction of the arrow releases the lock. The side bars are fitted at the factory, cannot be retrofitted and cannot be com- bined with push handles. Pads for the side bars are additionally availa- ble. Fig. -
Page 20: Warranty
Instructions for use Mobilizer Norbert 16. Warranty The warranty period for the Mobilizer Ottfried including the additional equipment is 24 months from the date of delivery. Excluded from warranty claims are: • Wear parts (e.g. armrest pads, locking screws) • Damage due to non-observance of these instructions for use •... -
Page 21: Ip Protection Classes & Temperature Ranges
19.1 IP protection classes & temperature ranges Operating Storage Component protecti- temperature range temperature range on class Total product IPX4 +5°C to +40°C +5°C to +40°C Mobilizer Ottfried No temperature restrictions Spiral cable: 1.3 m; Hand control IP67 maximum plug-in 2.5 m SCU-Control IPX4 +5°C to +40°C... -
Page 22: The Type Plate
Fig. 24: The type plate is located on the back of the backrest at the height of the push handle. Reha & Medi Hoffmann GmbH Debyestraße 5 ● 04329 Leipzig • Germany Tel: +49 341 39284960 ● Web: www.rehamedi.de ® Mobilizer Norbert 12231010 +40°... - Page 23 Notizen Copyright © Reha & Medi Hoffmann GmbH. All rights reserved!
- Page 24 Instructions for use Mobilizer Norbert Manufacturer Reha & Medi Hoffmann GmbH Debyestraße 5 04329 Leipzig Germany Tel. +49 341 / 39284960 info@rehamedi.de developed. designed. built. www.rehamedi.de made in Germany Copyright © Reha & Medi Hoffmann GmbH. All rights reserved!
