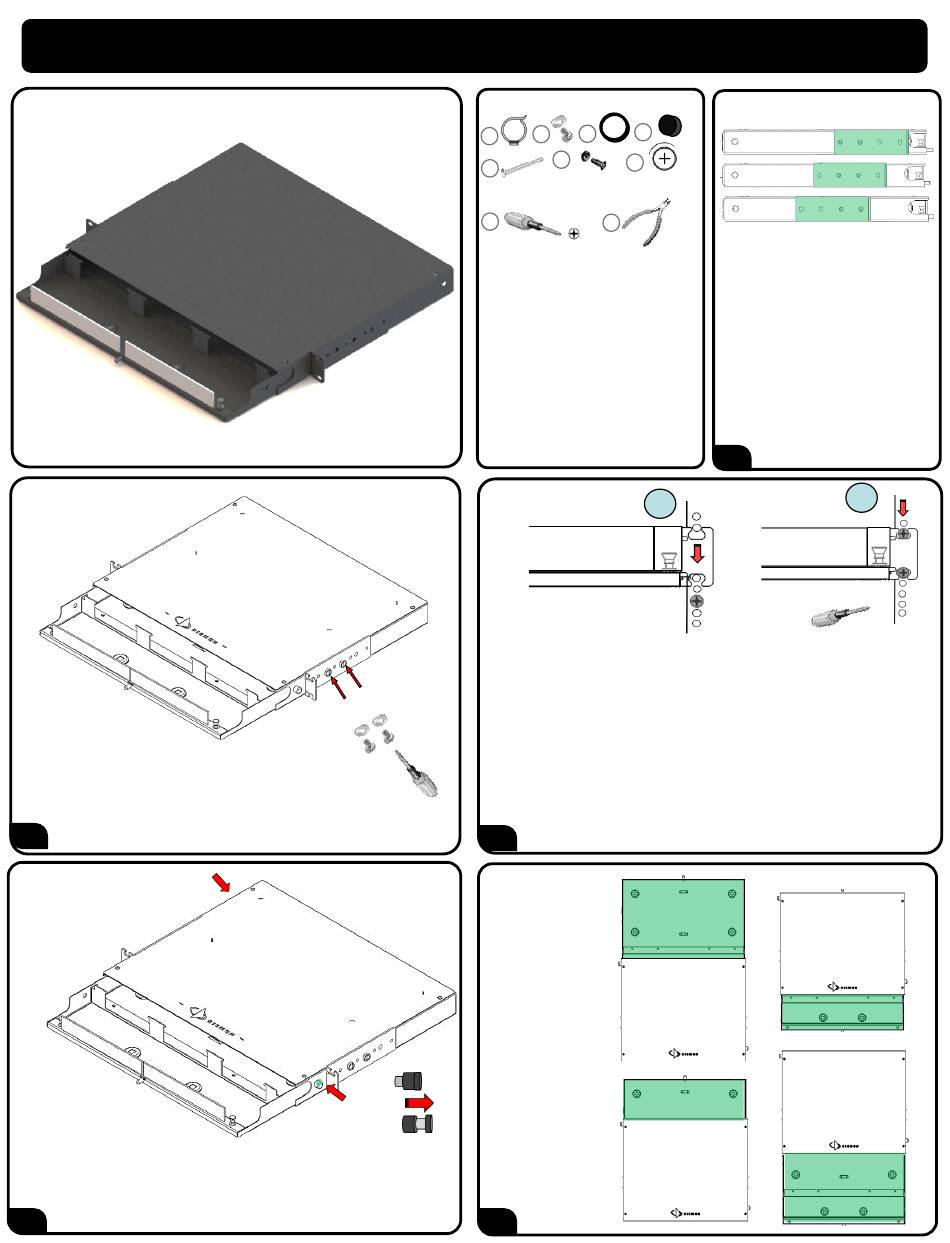

Siemon Lightverse Plus Instructions

Brackets are held in place by two screws and washers
each side.
2
Release the spring latch located on the front right (forward
tray access) and rear left (backward tray access) to allow
motion either forward or backward. Tray can be completely
removed from the front or the back.
4
Lightverse Plus Instructions

Hardware and Accessories

D
C
B
A
F
G
E

Tools

H
I
A. Fiber managers (6)
B. Mounting Bracket screws and
washers (4)
C. Roll of Velcro straps
D. Velcro dots (2)
E. Tie wraps
F. Rack 12-24 screws and washers
(4)
G. Plastic grommets (2)
H. Philips head screwdriver
I. Diagonal cutter
1
The open hole design of the rack mounting brackets can be utilized
to allow for easier mounting. 1. Screw in mounting screws at
desired height for bottom of the enclosure in the rack. The
enclosure can then be lowered down onto the partially installed
screws, tighten screws. 2. While the enclosure is held in place by
the lower screws the top screws can then be used to secure it.
Mount enclosure to rack or cabinet rails using included #12-24
screws with washers.
3
The enclosure
tray has two
spring latch
lock positions
rear and two
spring latch
lock positions
forward.
5
The mounting brackets can
be mounted in three
positions to provide different
position placement in the
mounting rails of a cabinet
or rack.
1
2
