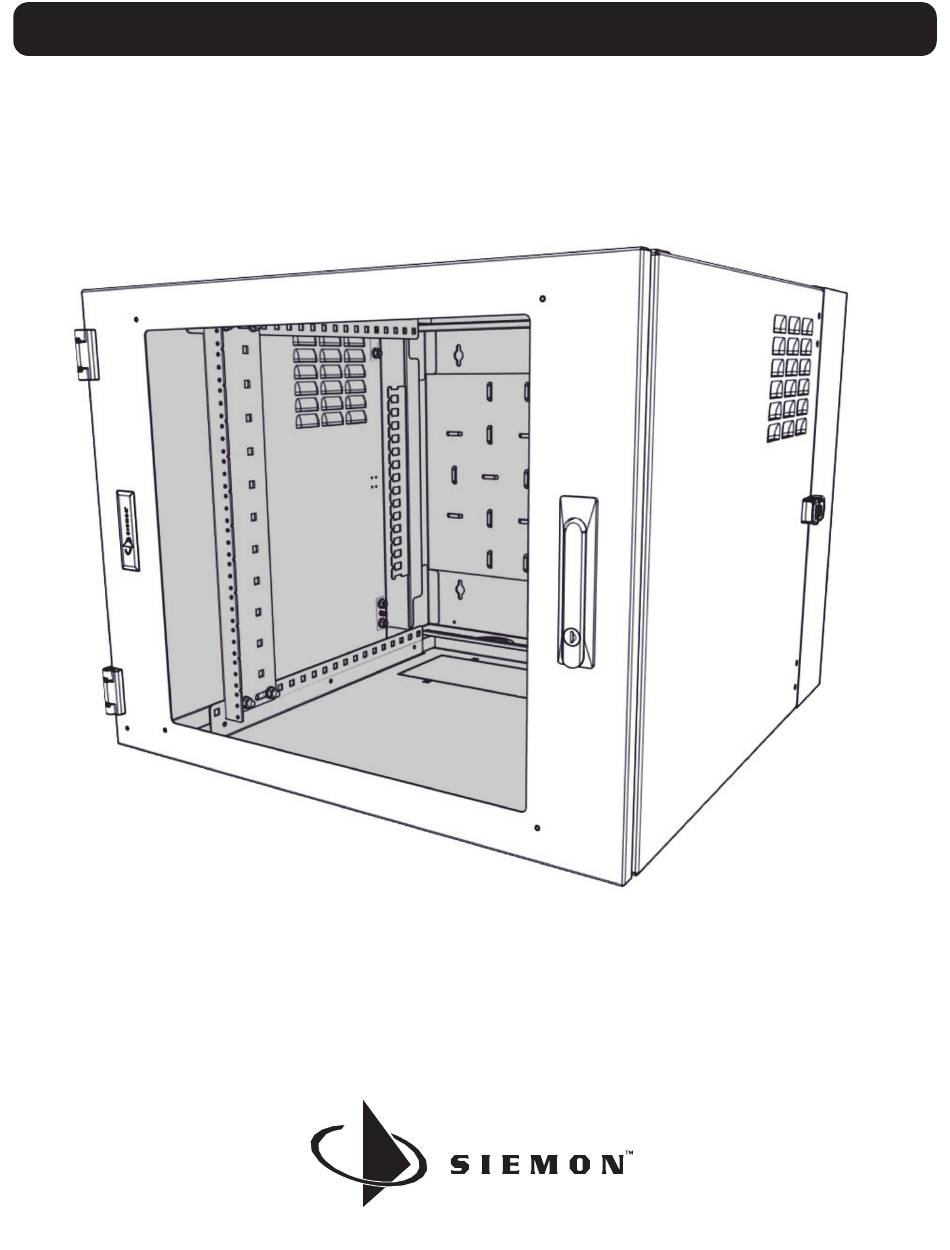

- Page 1 Wall Mount Cabinet Instructions w w w. s i e m o n . c o m...
-
Page 2: Table Of Contents
Table of Contents Safety Information ........3 Cabinet Mounting . -
Page 3: Safety Information
It is recommend that only a qualified and experienced installer should install this product. Improper installation of this product could result in damage to the product, other equipment, or personal injury. The Siemon Company cannot be held responsible for damage to equipment or personal injury resulting from improper fastening or misuse of information presented in this manual. - Page 4 Il est recommandé que seul un installateur qualifié et expérimenté doit installer ce produit. Une mauvaise installation de ce produit peut entraîner des dommages au produit, à autres équipements, ou des blessures. Siemon ne peut être tenu responsable des dommages matériels ou des blessures corporelles résultant de fixation abusive ou d' une mauvaise utilisation de l'information présentée dans ce manuel.
-
Page 5: Cabinet Mounting
Cabinet Mounting Remove door pins Open door to 90° Mounting Instructions: Once a location for the cabinet has been selected, inspect the wall and ensure that the wall or other mounting surface is uniform, flat, and structurally stable, and has a structural load capacity that will support the cabinet and the maximum weight load rating. - Page 6 Cabinet Mounting (Continued) Reset door into hinges Rotate door 90° to closed position Replace door pins...
-
Page 7: Cabinet Reversal
Cabinet Reversal Remove cabinet door pins Open cabinet door to 90º Remove cabinet door Remove (4) cabinet hinge bolts and lock washers using 13mm wrench Remove the cabinet center section from the back plate frame Remove front door hinges by removing (2) Phillips head screws and 1/4 -20 nut with lock washer from each hinge (7/16 wrench required) - Page 8 Cabinet Reversal - Continued Remove main latch by removing (4) Phillips head screws and nylon locking Rotate back plate frame 180° and re-install (2) door hinges and main latch into nuts (5.5 mm wrench required) positions as shown Reset door into hinges Re-install (4) cabinet hinge bolts using 13mm wrench Remove cabinet handle from door by removing (3) Phillips head screws, Re-install handle onto door...
- Page 9 Cabinet Reversal - Continued Rotate door 90° to closed position Replace door pins...
-
Page 10: Mounting Rail Adjustment
Mounting Rail Adjustment Remove (4) cabinet hinge bolts at top and bottom of each equipment rail using Adjust rail to desired depth and re-install hardware 1/2" wrench Optional Cable Management Finger Installation Install cable management fingers and re-secure mounting Recess front mounting rails at least 100mm (4.0 in.) using Step 1. above rails using mounting rail hardware shown above in Step 2. -
Page 11: Cable Manager Installation
Cable Manager Installation Install included vertical managers into equipment rails by installing into square Managers may either be installed flush to front of equipment rails or… holes and rotating 45° into locking position proud of the equipment rails... -
Page 12: Cabinet Bonding
B. Ne jamais toucher les bornes de fil métallique non isolés sauf si le circuit a étédébranché. C. Ne jamais installer cet appareil dans un endroit humide. D. Ne jamais installer pendant un orage. Global Headquarters Watertown, Connecticut USA Tel: (1) 866-548-5814 For a complete listing of our global offices visit our web site www.siemon.com...
