Installation & User Manual
AXYS
IndustryAmp
®
Models PB-400, PB-800, PB-400-CN, PB-800-CN
(Part Nos. 590401, 590801, 590403, 590803)
Shaping the future of sound reinforcement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXYS PB-400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Harman AXYS PB-400

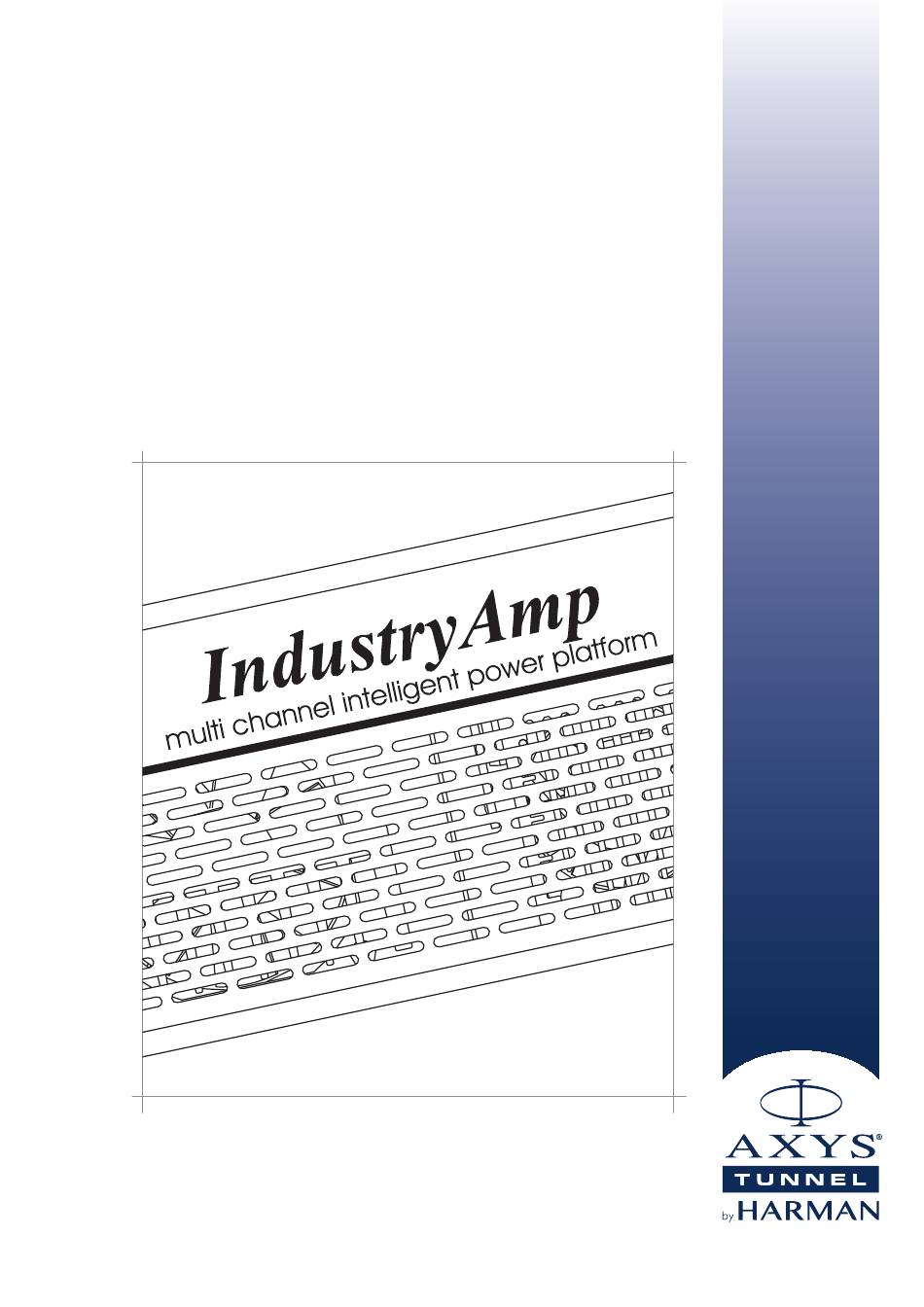

  • Page 1 Installation & User Manual AXYS IndustryAmp ® Models PB-400, PB-800, PB-400-CN, PB-800-CN (Part Nos. 590401, 590801, 590403, 590803) Shaping the future of sound reinforcement...
  • Page 2: Reference To Ec Statement Of Conformity

    AXYS IndustryAmp User Manual rev 2.2 ® REFERENCE TO EC STATEMENT OF CONFORMITY USER’S NOTICE AND DISClAIMER This document confirms that products manufactured by Duran Audio bearing the CE label meet all the requirements No part of this manual may be reproduced, transmitted, in the EMC directive 2004/108/EC and LV directive 2006/95/ transcribed, stored in a database system or translated EC laid down by the Member States Council for adjustment...
  • Page 3: Table Of Contents

    AXYS IndustryAmp User Manual rev 2.2 ® TABlE OF CONTENTS REFERENCE TO EC STATEMENT OF CONFORMITY . . . . . . . . . . . . . . . . . . . . . . .2 User’s Notice and disclaimer .
  • Page 4: Important Safety Instructions

    AXYS IndustryAmp User Manual rev 2.2 ® IMPORTANT SAFETY INSTRUCTIONS 13. Refer servicing to qualified service personnel. This symbol is intended to alert you to the Servicing is required when the apparatus has been presence of uninsulated dangerous voltages damaged in any way, such as power-supply cord or within the product’s enclosure that may be of sufficient plug is damaged, liquid has been spilled or objects magnitude to constitute a risk of electric shock.
  • Page 5: Introduction

    AXYS IndustryAmp User Manual rev 2.2 ® INTRODUCTION OVERVIEW Thank you for purchasing this AXYS IndustryAmp. ® In order to get the best out of your IndustryAmp, please The AXYS IndustryAmp is a multichannel power amplifier ® take the time to read through this manual before you specifically designed for permanent installation in life- install and use it for the first time.
  • Page 6: Features

    AXYS IndustryAmp User Manual rev 2.2 ® FEATURES WHAT’S IN THE PACKAGING All models: In addition to the IndustryAmp itself, each unit is shipped • Transformer-coupled outputs for direct drive of 70 V / with the following items: 100 V line systems •...
  • Page 7: General Description

    AXYS IndustryAmp User Manual rev 2.2 ® GENERAl DESCRIPTION BlOCK DIAGRAM AND SYSTEM DESCRIPTION To Amps Bypass Load Surge Amps Relays Transformers Monitoring Protection Input Out 1 Out 2 Input Out 3 Processing Digital Inputs Out 4 3-10 Out 5 Out 6 Out 7 Out 8...
  • Page 8 AXYS IndustryAmp User Manual rev 2.2 ® The simplified block diagram above shows the unit’s Both analogue inputs feed a pilot tone detector so that internal signal routing. continuous monitoring of the input connections may be made. The detector will, when enabled, switch from The unit has two analogue inputs, making it suitable for Input 1 to Input 2 if pilot tone is lost.
  • Page 9: Front Panel

    AXYS IndustryAmp User Manual rev 2.2 ® FRONT PANEl Status LED – bi-colour LED: normal (green), failure (red). REAR PANEl 8 9 10 11 19 20 Failure relay connector 12. Output 5* ANS mic input 13. Output 6* RS-485 port 14.
  • Page 10: Installation And Operation

    AXYS IndustryAmp User Manual rev 2.2 ® INSTAllATION AND OPERATION MECHANICAl INSTAllATION Do not install the IndustryAmp in a 19” rack The IndustryAmp is designed to be mounted in a standard immediately above or below another item of 19” equipment rack. The front panel is fitted with equipment generating a significant amount of heat (e.g., rackmount ears for this purpose.
  • Page 11: Connector And Wiring Details

    AXYS IndustryAmp User Manual rev 2.2 ® CONNECTOR AND WIRING DETAIlS Warning - Presence of mains voltage is not indicated by the LED on the front panel. This LED AC Mains indicates the status of the IndustryAmp and cannot be AC power is via a rear panel Neutrik PowerCon ®...
  • Page 12: Audio Connections

    AXYS IndustryAmp User Manual rev 2.2 ® AUDIO CONNECTIONS Amplifier outputs The amplifier outputs are on 3-pin 7.62 mm-pitch Analogue inputs screw terminal connectors. The secondary winding of The analogue audio inputs use 3-pin 3.81 mm-pitch screw each channel’s 100 V-line output transformer has an terminal connectors.
  • Page 13: Cobranet ® Interface

    AXYS IndustryAmp User Manual rev 2.2 ® CobraNet interface ® The maximum cable run for reliable operation using CAT-5/ CAT-5e cable is of the order of 100 m. If longer distances NOTE: These connectors are only present on are involved, the use of multimode fibre-optic cable is Models PB-400-CN and PB-800-CN (Part Nos.
  • Page 14: Control Connections

    AXYS IndustryAmp User Manual rev 2.2 ® CONTROl CONNECTIONS The RS-485 interface permits multiple amplifiers to be “daisy-chained” in parallel (see diagram below), so that RS-485 interface all units are controlled by the same PC. In such a system, The RS-485 network connection should be wired for each amplifier must have its own unique network address;...
  • Page 15: Failure Relay

    AXYS IndustryAmp User Manual rev 2.2 ® necessary. (If there is any doubt about which pins should be terminated, shorting all five pins will generally be     equally effective.) Failure relay The IndustryAmp includes a single-pole changeover relay ...
  • Page 16: Ambient Temperature Sensor

    AXYS IndustryAmp User Manual rev 2.2 ® Ambient temperature sensor A suitable AXYS temperature sensor (combined with ® an ANS microphone) is available as an option (Part No. The IndustryAmp is equipped with a frost protection 97661101 Ambient Mic and Temperature sensor). This system which can internally generate a low-level tone if should be wired using twin twisted-pair cable with an the ambient temperature drops below a pre-determined...
  • Page 17: Dsp Section Overview

    AXYS IndustryAmp User Manual rev 2.2 ® DSP SECTION OVERVIEW The IndustryAmp incorporates a 32-bit floating point Digital Signal Processor (DSP) in conjunction with 24-bit 128x-oversampling A-D and D-A conversion. This permits a very extensive range of system parameters to be controlled remotely and for internal storage of unit configuration.
  • Page 18: Level Controls

    AXYS IndustryAmp User Manual rev 2.2 ® All DSP functions are adjusted using the WinControl Each output channel may have up to 43.6 s of delay*. software application. Detailed information on the use of Additionally an overall unit delay of up to 21.8 s may be WinControl is beyond the scope of this manual, and users inserted at the main volume control stage.
  • Page 19: Failure Relay

    AXYS IndustryAmp User Manual rev 2.2 ® The Input Mode setting in WinControl (at Input > A notch filter should be inserted to suppress the Common parameters) allow selection of auto- pilot tone if its frequency is less than half the switching mode.
  • Page 20: Cobranet ® Configuration

    AXYS IndustryAmp User Manual rev 2.2 ® lOAD MONITORING Preset, and automatically loaded in the event of loss of network communication. In the case of CobraNet ® The amplifier channels are equipped with current- equipped models in life-safety systems, it is generally sensing load monitoring.
  • Page 21: Appendix

    AXYS IndustryAmp User Manual rev 2.2 ® APPENDIx TECHNICAl SPECIFICATIONS COMMON ANAlOGUE GROUNDING ISSUES Full technical specifications on all models are available at: http://www.duran-audio.com; Correctly connecting the IndustryAmp to ground has several benefits. A full discussion of the issues involved can be found at http://www.duran-audio.com;...
  • Page 22: Software And Firmware Updates

    AXYS IndustryAmp User Manual rev 2.2 ® SOFTWARE AND FIRMWARE UPDATES The AXYS WinControl application is freely available and ® can be downloaded from the download area of our website; http://www.duran-audio.com. We advise installers, users and engineers to check our site regularly for updates. Intellivox firmware and DSP software upgrades will also be made available through the website.
  • Page 23 DURAN AUDIO BV Koxkampseweg 10, 5301 KK Zaltbommel, The Netherlands. tel. +31 418 515583 fax. +31 418 518077 http://www.duran-audio.com Info@duran-audio.com...
