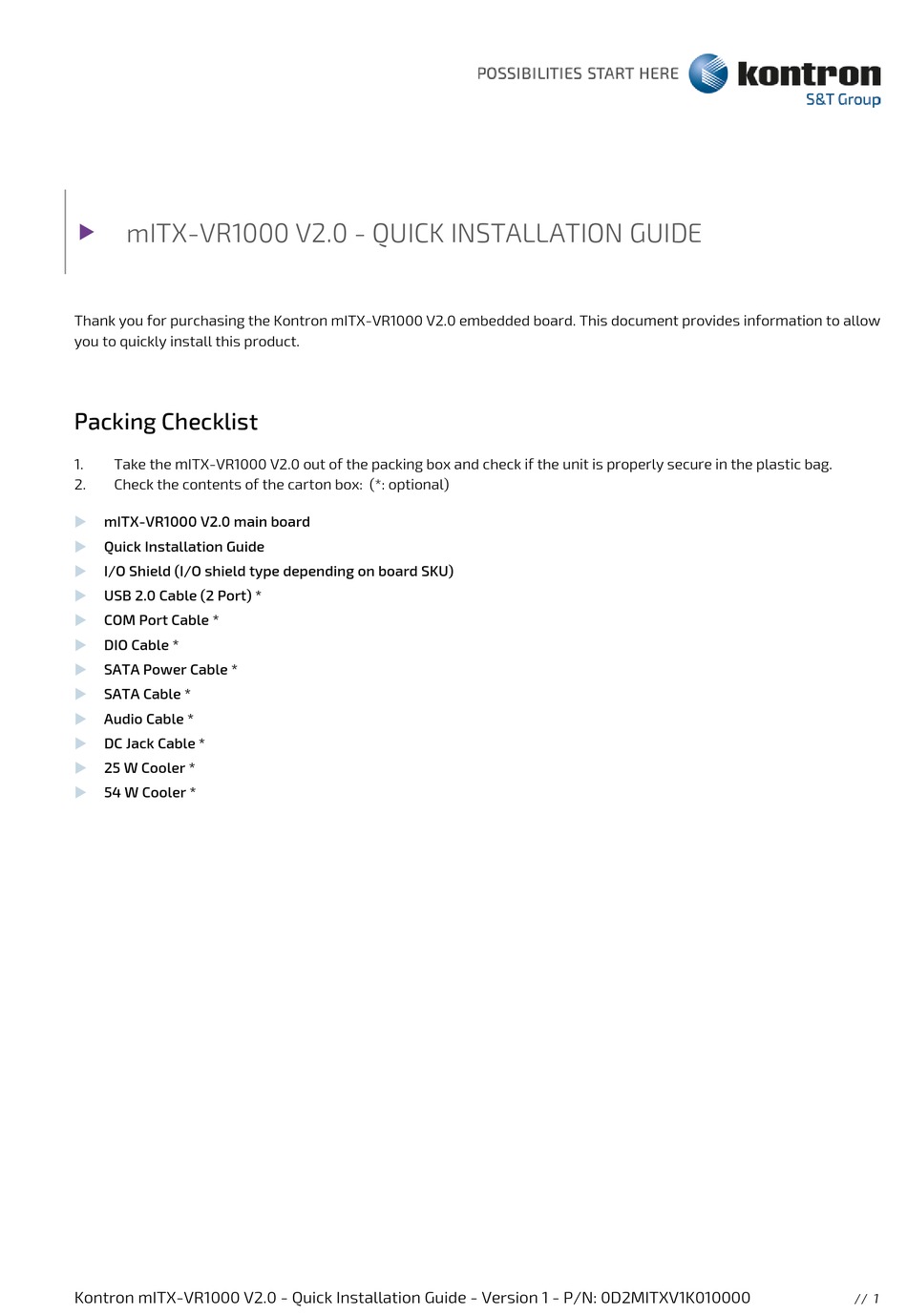

mITX-VR1000 V2.0 - QUICK INSTALLATION GUIDE

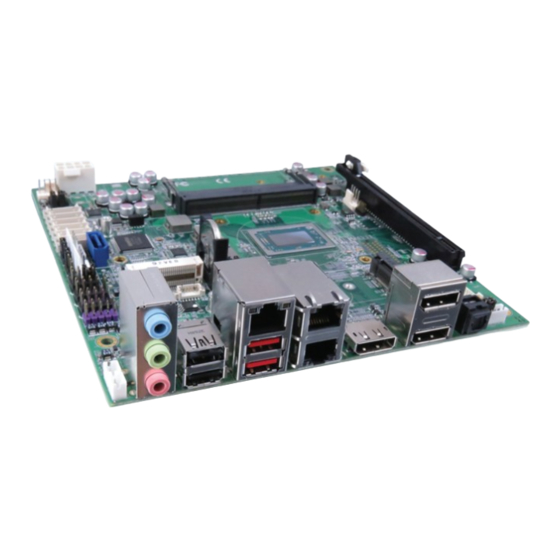

Thank you for purchasing the Kontron mITX-VR1000 V2.0 embedded board. This document provides information to allow
you to quickly install this product.

Packing Checklist

1.
Take the mITX-VR1000 V2.0 out of the packing box and check if the unit is properly secure in the plastic bag.
2.
Check the contents of the carton box: (*: optional)
mITX-VR1000 V2.0 main board
Quick Installation Guide
I/O Shield (I/O shield type depending on board SKU)
USB 2.0 Cable (2 Port) *
COM Port Cable *
DIO Cable *
SATA Power Cable *
SATA Cable *
Audio Cable *
DC Jack Cable *
25 W Cooler *
54 W Cooler *
Kontron mITX-VR1000 V2.0 - Quick Installation Guide - Version 1 - P/N: 0D2MITXV1K010000
// 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kontron mITX-VR1000 V2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for S&T Kontron mITX-VR1000 V2.0

  • Page 1  mITX-VR1000 V2.0 - QUICK INSTALLATION GUIDE Thank you for purchasing the Kontron mITX-VR1000 V2.0 embedded board. This document provides information to allow you to quickly install this product. Packing Checklist Take the mITX-VR1000 V2.0 out of the packing box and check if the unit is properly secure in the plastic bag.
  • Page 2 Top Side Jumper and Internal Connector Locations  Jumper List Item Designation Description Pin-9 Selection for COM1 Pin-9 Selection for COM2 AT / ATX Power Mode Selection USB Power Selection Kontron mITX-VR1000 V2.0 - Quick Installation Guide - Version 1 - P/N: 0D2MITXV1K010000 // 2...
  • Page 3 Item Designation Description Clear CMOS Selection Backlight Power Enable Selection for LVDS1 Panel & Backlight Power Selection for LVDS1 LVDE_EDID Selection  Internal Connector List Item Designation Description ATX1 DC 12 V (BOM option for 24 V support) Power Input Wafer BAT2 CR2032 Battery Holder Digital Input / Output Wafer...
  • Page 4 Item Designation Description FAN1 CPU FAN Wafer FAN2 System FAN Wafer Front Panel 1 Pin Header Front Panel 2 Pin Header Jumper Setting  7.20.1. Pin-9 Selection for COM1 & COM2 (JP1 & JP2) Jumper Position Description Pin 1-2 Pin 2-3 Pin 3-4 Pin 4-5 Pin-9 = +12 V...
  • Page 5 Description Pin 2-4 Pin 4-6 Backlight Enable High Active Backlight Enable Low Active “X” = Jumper set (short) and “-” = jumper not set (open) Kontron mITX-VR1000 V2.0 - Quick Installation Guide - Version 1 - P/N: 0D2MITXV1K010000 // 5...
  • Page 6 LVDE EDID Selection (JP9) Jumper 1 Position Description Pin 1-2 Pin 2-3 Normal LVDE_EDID Write “X” = Jumper set (short) and “-” = jumper not set (open) Kontron mITX-VR1000 V2.0 - Quick Installation Guide - Version 1 - P/N: 0D2MITXV1K010000 // 6...
  • Page 7 Description M2M1 M.2 Key M Socket (for SATA1) (BOM option) M2M2 M.2 Key M Socket (for SATA2) (BOM option) SIM1 SIM Card Connector, Push-Push Type Kontron mITX-VR1000 V2.0 - Quick Installation Guide - Version 1 - P/N: 0D2MITXV1K010000 // 7...
  • Page 8 CN20A & CN20B Dual DisplayPort Connector (Configuration 2) CN21C & CN21D Dual DisplayPort Connector CN22 USB 2.0 Port 4, 5 CN24 Optical S/PDIF Output Connector Kontron mITX-VR1000 V2.0 - Quick Installation Guide - Version 1 - P/N: 0D2MITXV1K010000 // 8...
