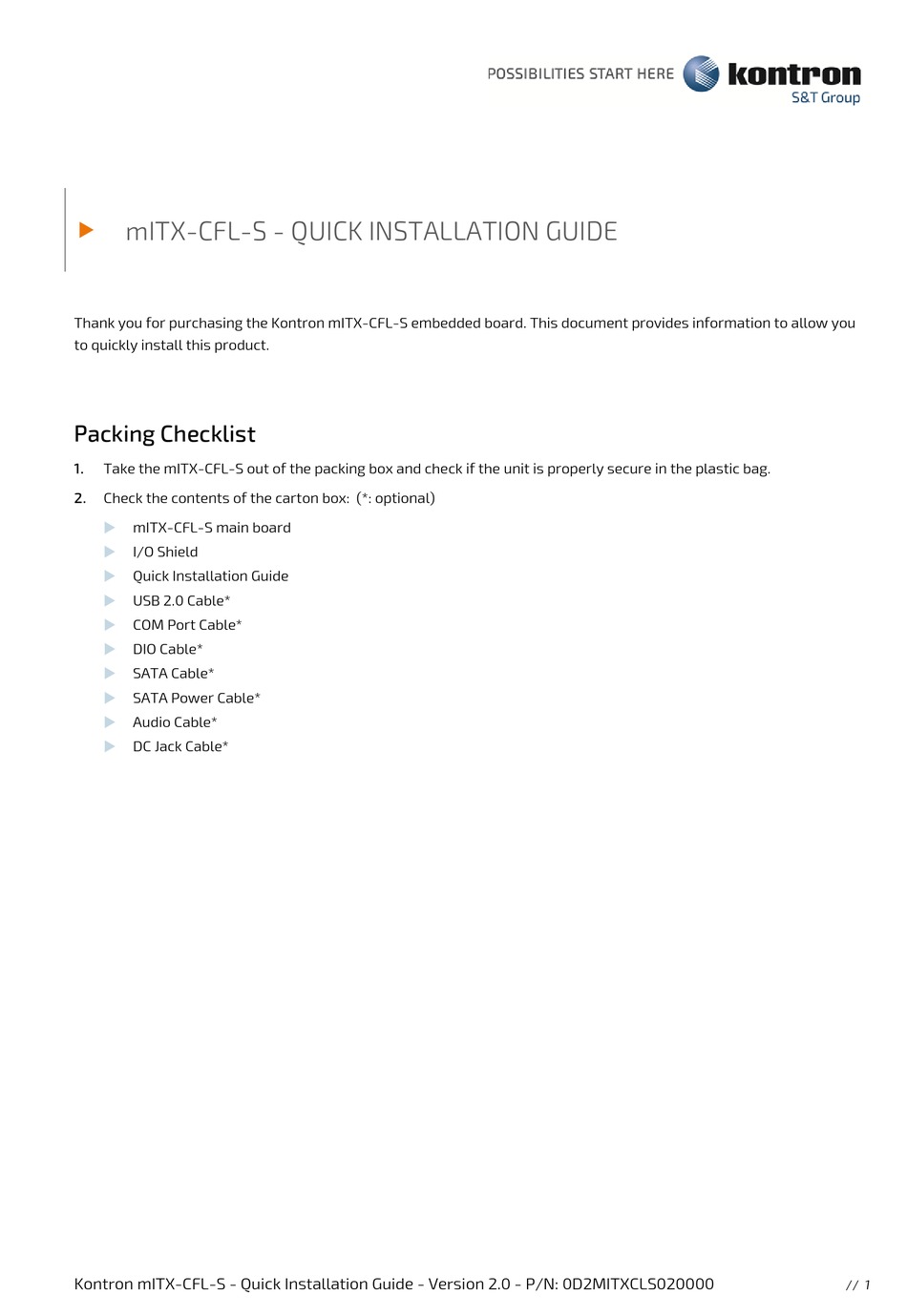

mITX-CFL-S - QUICK INSTALLATION GUIDE

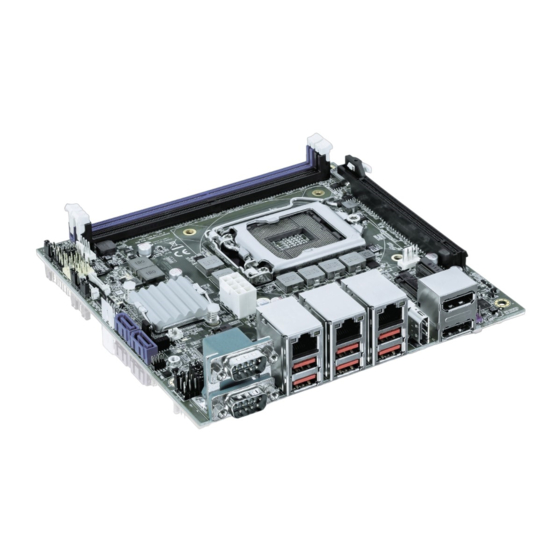

Thank you for purchasing the Kontron mITX-CFL-S embedded board. This document provides information to allow you
to quickly install this product.
Packing Checklist
1.
Take the mITX-CFL-S out of the packing box and check if the unit is properly secure in the plastic bag.
2.
Check the contents of the carton box: (*: optional)
mITX-CFL-S main board
I/O Shield
Quick Installation Guide
USB 2.0 Cable*
COM Port Cable*
DIO Cable*
SATA Cable*
SATA Power Cable*
Audio Cable*
DC Jack Cable*
Kontron mITX-CFL-S - Quick Installation Guide - Version 2.0 - P/N: 0D2MITXCLS020000
// 1
Advertisement
Table of Contents
Related Manuals for S&T Kontron mITX-CFL-S
Summary of Contents for S&T Kontron mITX-CFL-S
- Page 1 mITX-CFL-S - QUICK INSTALLATION GUIDE Thank you for purchasing the Kontron mITX-CFL-S embedded board. This document provides information to allow you to quickly install this product. Packing Checklist Take the mITX-CFL-S out of the packing box and check if the unit is properly secure in the plastic bag.
- Page 2 Panel & Backlight Power Selection for eDP1 JP10 Pin-9 Selection for COM1 JP11 PCIE Configuration Setting for PEG1 JP13 USB Power Selection JP14 M.2 Key B Function Selection Kontron mITX-CFL-S - Quick Installation Guide - Version 2.0 - P/N: 0D2MITXCLS020000 // 2...
- Page 3 Serial ATA Port-0 Connector SATA2 Serial ATA Port-1 Connector DIMM1 DDR4 Memory U-DIMM Socket DIMM2 DDR4 Memory U-DIMM Socket SIM1 Micro SIM Interface Slot for M.2 Key B Kontron mITX-CFL-S - Quick Installation Guide - Version 2.0 - P/N: 0D2MITXCLS020000 // 3...
- Page 4 Pin 2-3 Security Measures Defined are Set (Default) Security Measures Defined by BIOS are Over-written “X” = Jumper set (short) and “-” = jumper not set (open) Kontron mITX-CFL-S - Quick Installation Guide - Version 2.0 - P/N: 0D2MITXCLS020000 // 4...
- Page 5 Normal (default position) Clear RTC CMOS (board does not boot with the jumper in this position) “X” = Jumper set (short) and “-” = jumper not set (open) Kontron mITX-CFL-S - Quick Installation Guide - Version 2.0 - P/N: 0D2MITXCLS020000 // 5...
- Page 6 Jumper 2 Position Description Pin 2-4 Pin 4-6 Panel Power = +3.3V Panel Power = +5V “X” = Jumper set (short) and “-” = jumper not set (open) Kontron mITX-CFL-S - Quick Installation Guide - Version 2.0 - P/N: 0D2MITXCLS020000 // 6...
- Page 7 Pin 1-2 Pin 2-3 USB Power is always support USB Power is only S3 support “X” = Jumper set (short) and “-” = jumper not set (open) Kontron mITX-CFL-S - Quick Installation Guide - Version 2.0 - P/N: 0D2MITXCLS020000 // 7...
- Page 8 GbE LAN3 & USB3.1 Port-5, 6 Connector HDMI1 HDMI 1.4 Connector CN13TOP RS-232/422/485 COM2 Connector CN13BOT RS-232/422/485 COM1 Connector CN12TOP Display Port A Connector CN12BOT Display Port B Connector Kontron mITX-CFL-S - Quick Installation Guide - Version 2.0 - P/N: 0D2MITXCLS020000 // 8...
