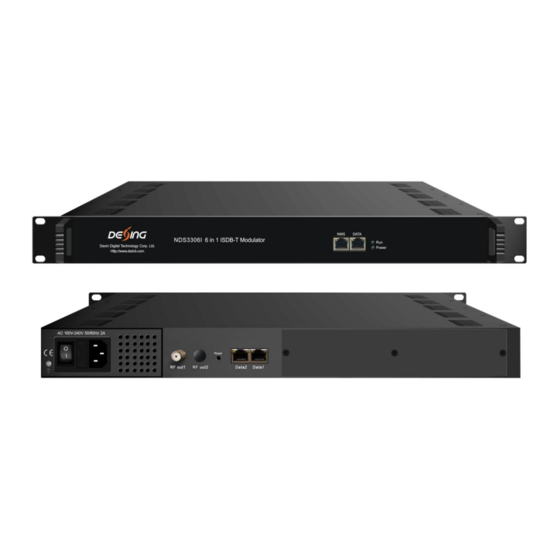

NDS3306I 6 in 1 ISDB-T Modulator
User Manual
DEXIN DIGITAL TECHNOLOGY CORP. LTD.
Add: No. 10 and 12, Wuxing Fourth Road, Wuhou District Chengdu 610045, Sichuan, PR China
www.dsdvb.com/english
Tel:+86-028-85550524 Fax: +86-028-85585255
Email:sunyu@dsdvb.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDS3306I and is the answer not in the manual?

Questions and answers

Related Manuals for Dexing NDS3306I

Summary of Contents for Dexing NDS3306I

  • Page 1 NDS3306I 6 in 1 ISDB-T Modulator User Manual DEXIN DIGITAL TECHNOLOGY CORP. LTD. Add: No. 10 and 12, Wuxing Fourth Road, Wuhou District Chengdu 610045, Sichuan, PR China www.dsdvb.com/english Tel:+86-028-85550524 Fax: +86-028-85585255 Email:sunyu@dsdvb.com...
  • Page 2 About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards. Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner.

  • Page 3: Table Of Contents

    Directory Chapter 1 Product Overview .................... 1 1.1 Outline .......................... 1 1.2 Inner Structure ......................1 1.5 Specifications ........................ 2 Chapter 2 Physical Presentational Statement ..............2 2.1 Front panel Illustration: ..................... 4 2.2 Rear panel Illustration: ....................4 Chapter 3 Installation Guide .................... 5 3.1 Acquisition Check ......................

  • Page 4: Chapter 1 Product Overview

    Chapter 1 Product Overview 1.1 Outline NDS3306I 6 in 1 ISDB-T modulator is the latest generational Mux-modulating device developed by DEXIN. It has 6 multiplexing channels and 6 (ISDB-Tb) modulating channels, and supports maximum 192 IP input through the 3 GE ports and 6 non-adjacent carriers (50MHz~960MHz) output through the RF output interface.

  • Page 5: Specifications

    NDS3306I 6 in 1 ISDB-T Modulator User Manual 1.4 Carrier Setting Illustration 1.5 Specifications Max 192 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port Input (SFP interface optional). Each Data1 or Data 2...
  • Page 6 NDS3306I 6 in 1 ISDB-T Modulator User Manual impedance ACLR -50 dBc 6 IP output over UDP/RTP/RTSP, unicast/multicast, 2 (Data1& Data2) TS output 100/1000M Ethernet Ports Network management software (NMS) supporting System Demission 420mm×440mm×44.5mm (WxLxH) Weight Temperature 0~45℃(operation), -20~80℃(storage) General AC 100V±10%, 50/60Hz or AC 220V±10%,...

  • Page 7: Chapter 2 Physical Presentational Statement

    NDS3306I 6 in 1 ISDB-T Modulator User Manual Chapter 2 Physical Presentational Statement 2.1 Front panel Illustration: 2.2 Rear Panel Illustration: NMS/CAS: network management port and CA data port DATA input port Indicators Grounding Power switch AC Power Socket RF output port...

  • Page 8: Chapter 3 Installation Guide

    NDS3306I 6 in 1 ISDB-T Modulator User Manual Chapter 3 Installation Guide 3.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ...
  • Page 9 NDS3306I 6 in 1 ISDB-T Modulator User Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.
  • Page 10 When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to NDS3306I 6 in 1 ISDB-T Modulator, user should set the power switch to “OFF”.

  • Page 11: Chapter 4 Web Nms Management

    NDS3306I 6 in 1 ISDB-T Modulator User Manual Chapter 4 Web NMS Management This device does not support the LCD operation, and the modification can only be operated under Web NMS. 4.1 Login The default IP address of this device is 192.168.0.136.
  • Page 12 NDS3306I 6 in 1 ISDB-T Modulator User Manual User can click any item here to enter the corresponding interface to check information or set the Figure-2 parameters. 4.2.2 Monitor Monitor → Input Status: Clicking “Input Status”, it will display the interface as Figure-3 where users can check the input status of Data1 and Data 2.
  • Page 13 NDS3306I 6 in 1 ISDB-T Modulator User Manual 10 output status of the 6 carriers and 6 IPs. User need to enable the output status in “Modulator” and “IP Stream” part. Otherwise, it will monitor nothing. Figure-4 Figure-5 4.2.3 Parameters Parameters →...
  • Page 14 NDS3306I 6 in 1 ISDB-T Modulator User Manual 11 Figure-6  Output TS X Clicking “Output TS X”, it will display the interface as Figure-7. Users can select the output TS channels. To select output TS channel 1-6 Figure-7  Stream Select Clicking “Stream Select”, it will display the interface where users can choose the...
  • Page 15 NDS3306I 6 in 1 ISDB-T Modulator User Manual 12 Set output IP address of streamer Input Area Output Area Operation Area Figure-8 Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as below: : To add input channel which come from Data1 or Data 2 or Data/Module...
  • Page 16 NDS3306I 6 in 1 ISDB-T Modulator User Manual 13 To parse programs time limitation of parsing input programs Program Modification: The multiplexed program information can be modified by clicking the program in the ‘output’ area. For example, when clicking , it triggers a dialog box (Figure 9) where users can input new information.
  • Page 17 NDS3306I 6 in 1 ISDB-T Modulator User Manual 14 source PID and output PID which is customer needed , then click “set” to apply the parameters. Figure-11 Parameters → Modulator: Clicking ‘Modulator’, it will display the interface as Figure-12 where to set RF output parameters.
  • Page 18 When users click “Channel config” button, it triggers a dialog box as follow where users can set the corresponding channel configration. Parameters → IP Stream: NDS3306I supports TS to output in IP (6*MPTS) format through the DATA port. Clicking ‘IP Stream’, it will display the interface as Figure-13 where to set IP out parameters.
  • Page 19 NDS3306I 6 in 1 ISDB-T Modulator User Manual 16 Set output IP address Click to enable the status and select TS out thru Data 1 or Data 2 When users click “Channel Config” button, it triggers a dialog box where users can set corresponding MPTS channel configration.
  • Page 20 NDS3306I 6 in 1 ISDB-T Modulator User Manual 17 Figure-15 System → Configuration: Clicking “Configuration”, it will display the screen as Figure-16 where to set your configurations for the device. Select areas Figure-16 System → Firmware: Clicking “Firmware”, it will display the screen as Figure-17 where to update firmware for...
  • Page 21 NDS3306I 6 in 1 ISDB-T Modulator User Manual 18 Figure-17 System → Date/Time: Clicking “Date/Time”, it will display the interface as Figure-18 where users can set date/time for this device. Figure-18 System → Log: Clicking “Log”, it will display the screen as Figure-19 where to check the “Log”.
  • Page 22 NDS3306I 6 in 1 ISDB-T Modulator User Manual 19 To select “Kernel log” and “System Log” Figure-19...

  • Page 23: Chapter 5 Troubleshooting

    NDS3306I 6 in 1 ISDB-T Modulator User Manual 20 Chapter 5 Troubleshooting DEXIN’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN.
