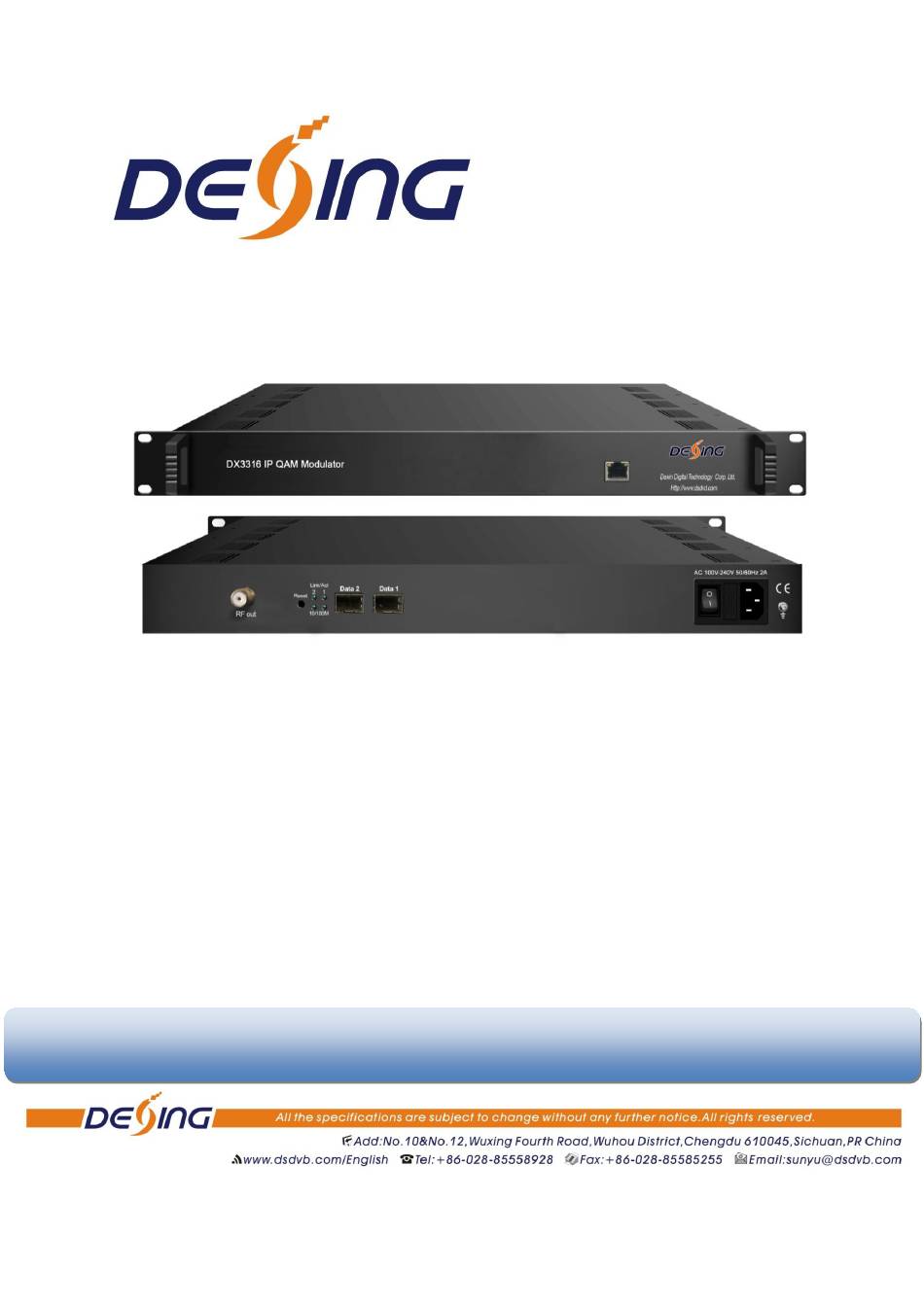

- Page 1 DX3316 IP QAM Modulator User Manual SW Version: 1.02 HW version: 0.70.0.0 Web NMS version: 1.02 DEXIN DIGITAL TECHNOLOGY CORP. LTD. 20142014...
- Page 2 About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards. Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner.
-
Page 3: Table Of Contents
Directory Chapter 1 Product Overview .................... 1 1.1 Outline .......................... 1 1.2 Inner Structure ......................1 1.5 Specifications ........................ 2 Chapter 2 Physical Presentational Statement ..............2 2.1 Front panel Illustration: ..................... 4 2.2 Rear panel Illustration: ....................4 Chapter 3 Installation Guide .................... 5 3.1 Acquisition Check ...................... -
Page 4: Chapter 1 Product Overview
DX3316 IP QAM Modulator User Manual Chapter 1 Product Overview 1.1 Outline NDS3316 IP Mux-Scrambling modulator is the latest generational Mux-scrambling-modulating all-in-one device developed by DEXIN. It has 16 multiplexing channels, 16 scrambling channels and 16 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 16 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. -
Page 5: Specifications
DX3316 IP QAM Modulator User Manual 1.4 Carrier Setting Illustration 1.5 Specifications Input 512× 2 IP input, 2 100/1000M Ethernet Port (SFP) TS over UDP/RTP/RTSP, unicast and multicast, Input Transport Protocol IGMP V2/V3 Transmission Rate Max 840Mbps for each GE input... - Page 6 DX3316 IP QAM Modulator User Manual QAM Channel 16 non-adjacent carrier Modulation Standard EN300 429/ITU-T J.83A/B Modulation Symbol Rate 5.0~7.0Msps, 1ksps stepping Parameters Constellation 16, 32, 64 , 128, 256QAM RS (204, 188) 1 F typed output port for 16 carriers, 75Ω...
-
Page 7: Chapter 2 Physical Presentational Statement
DX3316 IP QAM Modulator User Manual Chapter 2 Physical Presentational Statement 2.1 Front panel Illustration: 2.2 Rear Panel Illustration: NMS/CAS: network management port and CA data port RF output port Reset IP: Reset webmaster IP address, recover it to default IP address... -
Page 8: Chapter 3 Installation Guide
The main steps of the installation include: Checking the possible device missing or damage during the transportation Preparing relevant environment for installation Installing DX3316 IP Mux-Scrambling QAM Modulator Connecting signal cables Connecting communication port (if it is necessary) 3.2.1 Device’s Installation Flow Chart Illustrated as follows：... - Page 9 DX3316 IP QAM Modulator User Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.
- Page 10 When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to DX3316 IP QAM Modulator, user should set the power switch to “OFF”.
-
Page 11: Chapter 4 Web Nms Management
DX3316 IP QAM Modulator User Manual Chapter 4 Web NMS Management This device does not support the LCD operation, and the modification can only be operated under Web NMS. 4.1 Login The factory default IP address is 192.168.0.136 and users can connect the device and web NMS through this IP address. - Page 12 DX3316 IP QAM Modulator User Manual User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 4.2.2 Parameters Parameters → TS Config: Click “TS Config”, it displays the interface where users can configure the output TS parameters in this interface.
- Page 13 DX3316 IP QAM Modulator User Manual 10 Output TS X From the menu on up side of the webpage, clicking “Output TS X”, it displays the interface as Figure-4. Users can select the output TS channels. To select output TS channel 1-16 Figure-4 ...
- Page 14 DX3316 IP QAM Modulator User Manual 11 Configure „Input Area‟ and „Output Area‟ with buttons in „Operation Area‟. Instructions are as below: ： Enable/disable the CA Filter function. Clicking the box, user can filter the input CA to avoid disturbing with the device scrambling function.
- Page 15 DX3316 IP QAM Modulator User Manual 12 Add description Figure-7 Users click the interface is display as below, and click to apply the modified parameters.(Figure-8) Figure-8 PID Pass From the menu on up side of the webpage, clicking “PID Pass”, it displays the interface where...
- Page 16 DX3316 IP QAM Modulator User Manual 13 Figure-9 Parameters → Scrambler: From the menu on left side of the webpage, clicking “Scrambler”, it displays the interface where users can choose the programs to scramble. (Figure-10) Scramble channel select carrier select...
- Page 17 Click to set each channel RF QAM output parameters Figure-11 Parameters → IP Stream: DX3316 supports TS to output in IP (16*MPTS) format through the DATA port. Click „IP Stream‟, it will display the interface as Figure-12 where to set IP out parameters.
- Page 18 DX3316 IP QAM Modulator User Manual 15 Figure-12 System → Network: Click „Network‟, it will display the interface as Figure-13 where to set network parameters. Figure-13 System → Password:...
- Page 19 DX3316 IP QAM Modulator User Manual 16 From the menu on left side of the webpage, clicking “Password”, it will display the screen as Figure-14 where to set the login account and password for the web NMS. Figure-14 System → Configuration: From the menu on left side of the webpage, clicking “Configuration”, it will display the screen...
- Page 20 DX3316 IP QAM Modulator User Manual 17 Figure-16 where to update firmware for the device. Figure-16 System → Log: From the menu on left side of the webpage, clicking “Log”, it will display the screen as Figure-17 where to check the “Log”.
-
Page 21: Chapter 5 Troubleshooting
DX3316 IP QAM Modulator User Manual 18 Chapter 5 Troubleshooting DEXIN‟s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products‟ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN. -
Page 22: Chapter 6 Packing List
DX3316 IP QAM Modulator User Manual 19 Chapter 6 Packing list DX3316 IP QAM Modulator 1 pc User‟s Manual 1 pc Power Cord 1 pc...
