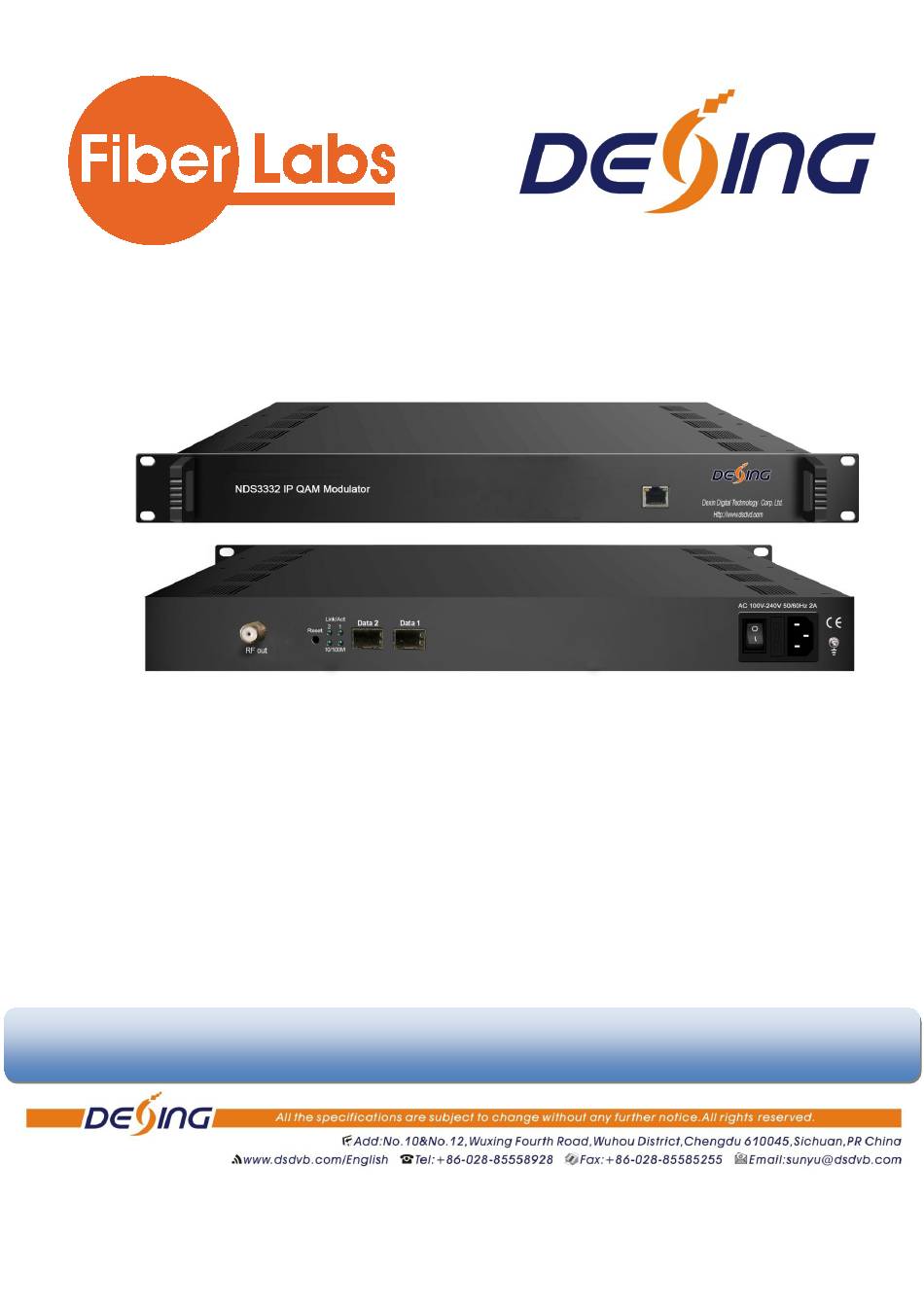

- Page 1 NDS3332 IP QAM Modulator User Manual SW Version: 9.25 Build 200.00 Sep 20 2016 HW version: 0.140.0.0 Web NMS version: 1.10 DEXIN DIGITAL TECHNOLOGY CORP. LTD. 20142014...
- Page 2 About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards. Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner.
-
Page 3: Table Of Contents
Directory Chapter 1 Product Overview .................... 1 1.1 Outline .......................... 1 1.2 Inner Structure ......................1 1.5 Specifications ........................ 2 Chapter 2 Physical Presentational Statement ..............2 2.1 Front panel Illustration: ..................... 4 2.2 Rear panel Illustration: ....................4 Chapter 3 Installation Guide .................... 5 3.1 Acquisition Check ...................... -
Page 4: Chapter 1 Product Overview
NDS3332 IP QAM Modulator User Manual Chapter 1 Product Overview 1.1 Outline NDS3332 IP Mux-Scrambling modulator is the latest generational Mux-scrambling-modulating all-in-one device developed by DEXIN. It has 32 multiplexing channels, 32 scrambling channels and 32 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 32 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. -
Page 5: Specifications
NDS3332 IP QAM Modulator User Manual Carrier 1 SCR 1# QAM 1# MUX 1# IP 1-512 IP 1 MPTS or SPTS IP 1-512 Carrier 32 MPTS or SPTS SCR 32# QAM 32# MUX 32# IP 32 1.4 Carrier Setting Illustration CH X CH X CH 1... - Page 6 NDS3332 IP QAM Modulator User Manual Connection Local/remote connection QAM Channel 32 non-adjacent carrier Modulation Standard EN300 429/ITU-T J.83A/B Modulation Symbol Rate 5.0~7.0Msps, 1ksps stepping Parameters Constellation 16, 32, 64 , 128, 256QAM RS (204, 188) 1 F typed output port for 32 carriers, 75Ω Interface RF Range 50~960MHz, 1kHz stepping...
-
Page 7: Chapter 2 Physical Presentational Statement

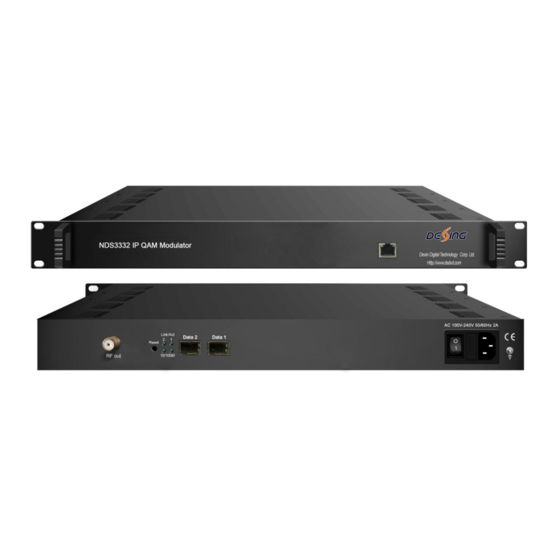

NDS3332 IP QAM Modulator User Manual Chapter 2 Physical Presentational Statement 2.1 Front panel Illustration: 2.2 Rear Panel Illustration: NMS/CAS: network management port and CA data port RF output port Reset IP: Reset webmaster IP address, recover it to default IP address Link/Act Indicators Data Input/Output 1/2 (SFP) Power switch... -
Page 8: Chapter 3 Installation Guide
NDS3332 IP QAM Modulator User Manual Chapter 3 Installation Guide 3.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: NDS3332 IP QAM Modulator ... - Page 9 NDS3332 IP QAM Modulator User Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free 10...
- Page 10 NDS3332 IP QAM Modulator User Manual with the metal housing of device. Grounding conductor must adopt copper conductor in order to reduce high frequency impedance, and the grounding wire must be as thick and short as possible. Users should make sure the 2 ends of grounding wire well electric conducted and be antirust.
-
Page 11: Chapter 4 Web Nms Management
NDS3332 IP QAM Modulator User Manual Chapter 4 Web NMS Management This device does not support the LCD operation, and the modification can only be operated under Web NMS. 4.1 Login The factory default IP address is 192.168.0.136 and users can connect the device and web NMS through this IP address. - Page 12 NDS3332 IP QAM Modulator User Manual User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 4.2.2 Parameters Parameters → TS Config: Click “TS Config”, it displays the interface where users can configure the output TS parameters in this interface.
- Page 13 NDS3332 IP QAM Modulator User Manual 10 Figure-3 Output TS X From the menu on up side of the webpage, clicking “Output TS X”, it displays the interface as Figure-4. Users can select the output TS channels. To select output TS channel 1-32...
- Page 14 NDS3332 IP QAM Modulator User Manual 11 Figure-4 Stream Select From the menu on up side of the webpage, clicking “Stream Select”, it displays the interface where users can choose the programs to Mux out. (Figure-5) Input Area Output Area Operation Area Figure-5 Configure „Input Area‟...
- Page 15 NDS3332 IP QAM Modulator User Manual 12 To parse programs time limitation of parsing input programs Program Modification: The multiplexed program information can be modified by clicking the program in the „output‟ area. For example, when clicking , it triggers a dialog box (Figure-6) where users can input new information.
- Page 16 NDS3332 IP QAM Modulator User Manual 13 parameters.(Figure-8) Figure-8 PID Pass From the menu on up side of the webpage, clicking “PID Pass”, it displays the interface where to add the PIDs which need pass through. (Figure-9) Figure-9 Parameters → Scrambler: From the menu on left side of the webpage, clicking “Scrambler”, it displays the interface where users can choose the programs to scramble.
- Page 17 NDS3332 IP QAM Modulator User Manual 14 Scramble channel select carrier select CA channel select EMMG and ECMG working state, green means it work This field indicates the current normally, while outputting programs. red means programs selected will communication scrambled. error or no communication.
- Page 18 NDS3332 IP QAM Modulator User Manual 15 Click to set all channels RF QAM output parameters Click to set each channel RF QAM output parameters Figure-11 Parameters → IP Stream: NDS3332 supports TS to output in IP (32*MPTS) format through the DATA port.
- Page 19 NDS3332 IP QAM Modulator User Manual 16 Click „IP Stream‟, it will display the interface as Figure-12 where to set IP out parameters. Figure-12 System → Network:...
- Page 20 NDS3332 IP QAM Modulator User Manual 17 Click „Network‟, it will display the interface as Figure-13 where to set network parameters. Figure-13 System → Password: From the menu on left side of the webpage, clicking “Password”, it will display the screen as Figure-14 where to set the login account and password for the web NMS.
- Page 21 NDS3332 IP QAM Modulator User Manual 18 System → Configuration: From the menu on left side of the webpage, clicking “Configuration”, it will display the screen as Figure-15 where to set your configurations for the device. Select areas Figure-15 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-16 where to update firmware for the device.
- Page 22 NDS3332 IP QAM Modulator User Manual 19 Figure-16 System → Log: From the menu on left side of the webpage, clicking “Log”, it will display the screen as Figure-17 where to check the “Log”. To select “Kernel log” and “System Log” Figure-17...
-
Page 23: Chapter 5 Troubleshooting
NDS3332 IP QAM Modulator User Manual 20 Chapter 5 Troubleshooting DEXIN‟s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products‟ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN. -
Page 24: Chapter 6 Packing List
NDS3332 IP QAM Modulator User Manual 21 Chapter 6 Packing list NDS3332 IP QAM Modulator 1 pc User‟s Manual 1 pc Power Cord 1 pc...
