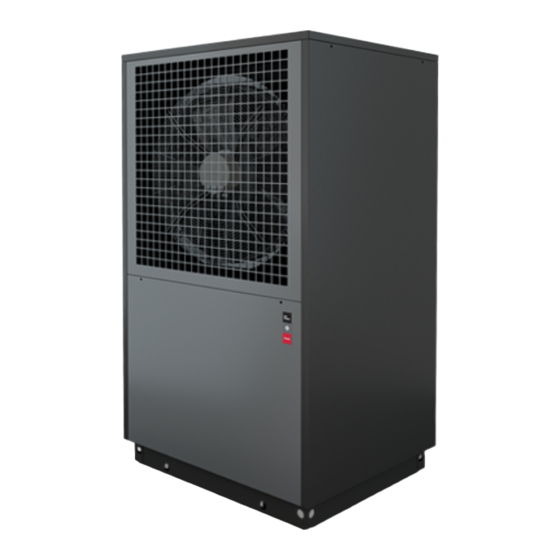

Glen Dimplex Deutschland Dimplex LI 1422C LI 1826C Installation and Operating Instruction Air-to-Water Heat Pump for Indoor Installation Order no.: 452170.66.01-EN EN · FD 0303...
English LI 1422C - 1826C CAUTION! Safety notes There is a risk of falling or slipping on trip hazards and leaking operating materials. Risk of injury! 1.1 Symbols and markings Trip hazards caused by cables, pipes and hoses must be avoided.
LI 1422C - 1826C English 1.3 Intended use 1.5 Energy-efficient use of the heat pump This device is only intended for use as specified by the manu- facturer. Any other use beyond that intended by the manufac- With the purchase of this heat pump, you are helping to protect turer is prohibited.
English LI 1422C - 1826C 2.2 Operating principle Intended use of the heat pump Heat Outside air is drawn in by the ventilator and fed via the evapora- 2.1 Area of application tor (heat exchanger). The evaporator cools the air, i.e. extracts heat from it.
LI 1422C - 1826C English Scope of supply 3.1 Basic device The heat pump contains the components listed below. The refrigeration circuit is "hermetically sealed" and contains the fluorinated refrigerant R410A incorporated in the Kyoto protocol. Information on the GWP value and CO equivalent of the refrigerant is available under “Device information”.
English LI 1422C - 1826C Transport CAUTION! Risk of injury when lifting and setting down the load. Risk of crushing! Do not stand under the load when lifting and setting down. CAUTION! Risk of injury if unsuitable lifting devices are used incorrectly.
Page 9
LI 1422C - 1826C English For easier transportation into existing homes/buildings, it is possible to separate the basic device into two parts. Once the covering panels have been removed, please proceed as follows: Drain refrigerant Remove condensate hose Loosen the switch box from the frame Remove the pipe insulation above the soldering points Separate 4x soldering points chip-free.
English LI 1422C - 1826C 5.2 Condensate pipe Installation Condensate that forms during operation must be drained off 5.1 General frost free. To ensure proper drainage, the heat pump must be mounted horizontally. The condensate pipe must have a mini-...
LI 1422C - 1826C English Connection of onsite air duct Assembly If an alternative type of air duct is used to the one available as an accessory, the external and internal dimensions as specified 6.1 General in the drawing must be adhered to. Also ensure that the vibra- tion and duct insulation are adequate.
English LI 1422C - 1826C 6.3 Connection on heating side NOTE The specific volumes of a heating system must be determined The heating system connections on the heat pump have a before filling the system. 1 1/4“ external thread. A spanner must be used to firmly grip the transitions when connecting the heat pump.
Page 13
LI 1422C - 1826C English 6.4.2 Corrosion Saturation Index < -0.2 -0.2 - 0.1 The VDI 2035 recommends the use of partially demineralised water or demineralised water in systems with larger-than-aver- 0.1 - 0.2 age specific system volumes of 50 l/kW.
English LI 1422C - 1826C 6.5 Electrical connection Minimum heating water flow rate The minimum heating water flow rate through the heat pump must be assured in all operating states of the heating system. 6.5.1 General This can be accomplished, for example, by installing either a All electrical installation work must be carried out by a trained dual differential pressureless manifold or an overflow valve.
LI 1422C - 1826C English 6.5.2 Electrical installation work Commissioning 3 lines/cables must be routed to the heat pump in total: 7.1 General A standard 5-core cable is used to connect the heat pump to the power supply. The cable must be provided on-site. The conductor cross...
English LI 1422C - 1826C 7.3 Procedure To ensure problem-free commissioning, the following proce- dure is to be implemented: The heat pump is commissioned via the heat pump manager. Close all consumer circuits. Settings should be made in compliance with the heat pump Ensure that the heat pump has the correct water flow.
LI 1422C - 1826C English 8.2 Cleaning the heating system Faults / troubleshooting This heat pump is a quality product and is designed for trouble- NOTE free operation. Should a fault occur, however, it will be indi- Pressure relief devices must be checked and maintained cated on the heat pump manager display.
English LI 1422C - 1826C 11 Device information Type and order code LI 1422C LI 1826C Design Heat source Seasonal coefficient of performance (COP) average climate 35 °C / 55 °C 179 % / 135 % 175 % / 135 %...
Page 19
LI 1422C - 1826C English Type of defrosting Reverse cycle Reverse cycle Condensate tray frost protection/water in device is protected from freezing Max. operating overpressure (heat sink) Heat output / COP Heat output / coefficient of performance (COP) EN 14511...
Contact details Glen Dimplex Deutschland GmbH, Am Goldenen Feld 18, 95326 Kulmbach (*) For heat pump space heaters and heat pump combination heaters, the rated output P rated is equal to the design load for heating Pdesignh , and the rated heat output of a supplementary capacity for heating sup(Tj ).
Page 21
Contact details Glen Dimplex Deutschland GmbH, Am Goldenen Feld 18, 95326 Kulmbach (*) For heat pump space heaters and heat pump combination heaters, the rated output P rated is equal to the design load for heating Pdesignh , and the rated heat output of a supplementary capacity for heating sup(Tj ).
LI 1422C - 1826C English 14 Diagrams 14.1 Characteristic curves for heating operation LI 1422C Heizleistung in [kW] Wasseraustrittstemperatur in [°C] Heating capacity in [kW] Water outlet temperature in [°C] Puissance de chauffage en [kW] Température de sortie de l'eau en [°C]...
English LI 1422C - 1826C 14.2 Characteristic curves for cooling operation LI 1422C Kühlleistung in [kW] Wasseraustrittstemperatur [ Cooling capacity in [kW] Water outlet temperature in [°C] Puissance de refroidissement en [kW] Température de sortie de l'eau en [°C] Bedingungen · Conditions · Conditions: 2-Verdichterbetrieb Kühlwasserdurchsatz...
LI 1422C - 1826C English 14.3 Characteristic curves for heating operation LI 1826C Heizleistung in [kW] Wasseraustrittstemperatur in [°C] Heating capacity in [kW] Water outlet temperature in [°C] Puissance de chauffage en [kW] Température de sortie de l'eau en [°C]...
English LI 1422C - 1826C 14.4 Characteristic curves for cooling operation LI 1826C Kühlleistung in [kW] Wasseraustrittstemperatur [ Cooling capacity in [kW] Water outlet temperature in [°C] Puissance de refroidissement en [kW] Température de sortie de l'eau en [°C] Bedingungen · Conditions · Conditions: 2-Verdichterbetrieb Kühlwasserdurchsatz...
English LI 1422C - 1826C 14.6 Operating limits diagram cooling LI 1422C Wasseraustri (+/- 2 K) Water outlet (+/- 2 K) d'eau (+/- 2 K) Die Angaben gelten bei Einhaltung des geforderten Mindestkühlwasserdurchflusses. The values are valid for the specified minimum cooling water flow.
LI 1422C - 1826C English 14.7 Operating limits diagram cooling LI 1826C Wasserau (+/- 2 K) Water outlet (+/- 2 K) d'eau (+/- 2 K) Die Angaben gelten bei Einhaltung des geforderten Mindestkühlwasserdurchflusses. The values are valid for the specified minimum cooling water flow.
English LI 1422C - 1826C 15 Integration diagram 15.1 Hydraulic integration diagrams NOTE The hydraulic integration diagram is an example and intended only as an aid. The system requires professional and safety- approved layout by a specialist planner. All information in the section on installation and the corresponding safety notes must be observed at all times.
Page 31
LI 1422C - 1826C English 15.2 Hydraulic integration diagrams NOTE The hydraulic integration diagram is an example and intended only as an aid. The system requires professional and safety- approved layout by a specialist planner. All information in the section on installation and the corresponding safety notes must be observed at all times.
LI 1422C - 1826C English 16 Declaration of Conformity You can find and download the current CE conformity declara- tion at: https://dimplex.de/li1422c https://dimplex.de/li1826c www.dimplex.de 452170.66.01-EN · FD 0303 EN-31...
Page 34
English LI 1422C - 1826C EN-32 452170.66.01-EN · FD 0303 www.dimplex.de...
Page 35
LI 1422C - 1826C English www.dimplex.de 452170.66.01-EN · FD 0303 EN-33...
Page 36
Glen Dimplex Deutschland On site service Head office After-sales service, technical support and Glen Dimplex Deutschland GmbH spare partsl. Assistance before and Am Goldenen Feld 18 after installation of your equipment D-95326 Kulmbach T +49 9221 709-545 T +49 9221 709-101...
