Smartek NB40LPS1 Manual

Model: NB40LPS1
Power supply: Lithium battery 3,6V
PIR: NO
Thank you for purchasing NUBI 4.0, the intelligent smoke
screen security device able to be connected to any burglar
alarm system in new or existing systems.

OPERATIONAL OVERVIEW

The device is powered by a 3.6V AA size lithium battery
supplied with the product, such as SAFT LS14500 or
similar. This battery provides the necessary energy to the
device for a period of 10 years. The ignition of the smoke
cartridge is ensured even when the battery is very low
(2.2V)
NUBI 4.0 efficiently protects volumes up to 100 m
smoke generated by NUBI 4.0 is based on incense and
does not produce toxic atmosphere as tested according to
the TLV-STEL directive EU 2017/164 and ACGIH. After use
the room must be ventilated before staying there.
This version of NUBI 4.0 has no integrated PIR, it has only
the input to trigger the immediate smoke delivery.
The polarity of this input and its logic can be easily
configured using DIP switches to interface NUBI 4.0 with
anyburglar panel or command device.
NUBI 4.0 has one output to inform other devices about the
low battery status. The level of the output logic can be
inverted using DIP switch 5.
The box opening is detected with a tamper switch, its clean
contact can be connected to the burglar panel.
The smoke cartridge works only once, the smoke
emission, when triggered, can no longer be interrupted.
The smoke cartridge replacement is very easy, each spare
cartridge is provided with a special board soldered on its
wires to be easily plugged on the proper motherboard
connector.
NUBI 4.0
3 . The
motherboard to fix the lower part of the box on the wall.

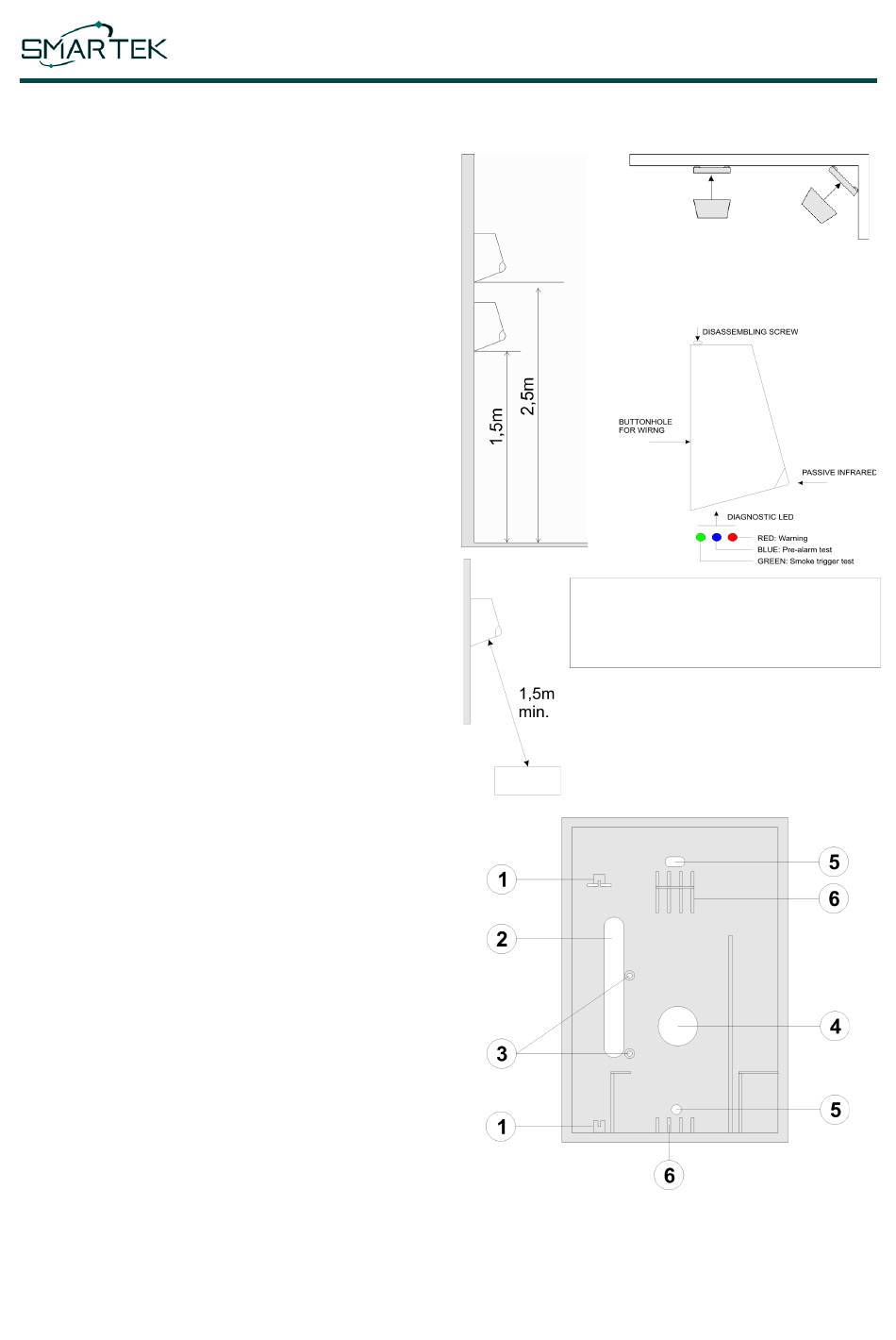

1 Motherboard rails
2 Cabling wire buttonhole
3 Internal siren fixing spacers
4 Internal siren sound outlet hole
5 Device fixing holes
6 Smoke cartridge supports
REV 01 – Nov. 2018 - ENGLISH

INSTALLATION

NUBI 4.0 can be easily installed on the
wall or even in a corner at a height
between 150 and 250 cm.
WARNING
Do not insert any obstacle at a distance
of less than 1.5 meters from the smoke
outlet hole.
The best performance is achieved when
the jet of smoke coming out from NUBI 4.0
directly hits the floor, in this way the smoke
will cool and spread better.
After opening the top cover, remove the
