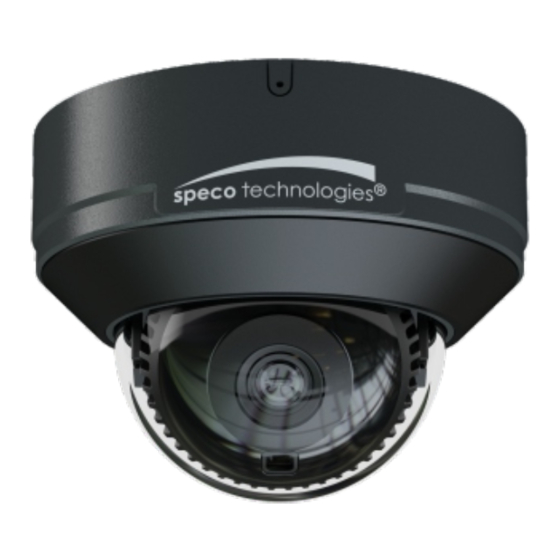

Speco O4iD2 Quick Start Manual
Hide thumbs Also See for O4iD2:

Advertisement

Quick Links

Quick Start Guide
O4iD2

Advertisement

loading
Need help?

Need help?

Do you have a question about the O4iD2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Speco O4iD2

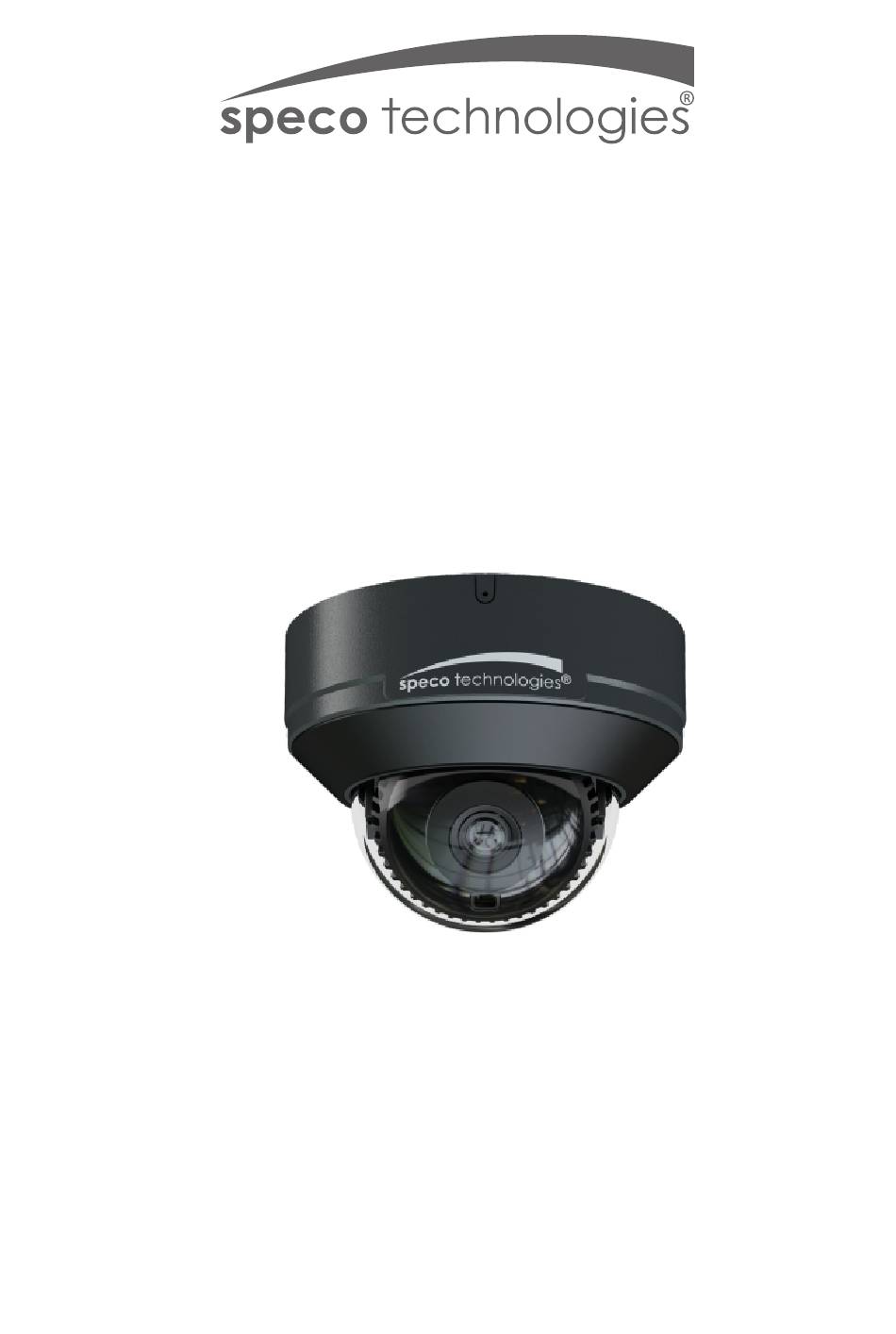

  • Page 1 Quick Start Guide O4iD2...
  • Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
  • Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
  • Page 4 Camera Quick start guide 8 Plastic screw anchors 4 Rubber o-rings Screwdriver 8 Screws (PA 4×25mm) Rubber plug for screws 4 Screws (PM 4×16mm) Junction box Drill template Overview Overview Ethernet connector Audio input connector Alarm input/output Power connector Microphone Micro SD Card Slot Reset...
  • Page 5: Connecting Network Cable

    External microphone 1--ALM-COM 2--ALM-OPEN 3--ALM-INA 4--ALM-GND DC12V * It is recommended to install the water-proof connector for outdoor installations. Connecting Network Cable ① Loosen the nut from the main element. ② Run the network cable (without RJ 45 connector) through both elements.
  • Page 6: Installation

    Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Attach the drill template of the junction box to the place where you want to install the junction box and then rill the screw hole and calbe hole on the wall according to the drill template.
  • Page 7 Lower dome ⑤ Connect the cables, mount the rubber plug to the gap of the mounting base and fasten the camera onto the junction box. Rubber Plug 4× PM 4×16mm ⑥ Three-axis adjustment. Before adjustment, view the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle.
  • Page 8 Rotation 0°~180° Tilt 0°~70° Pan 0°~355° Install the lower dome back to the camera and fasten it with the screws. Then put the trim ring onto the lower dome. Finally, remove the protection film softly. Web Operation and Login IP Scanner can search for the device on the local network. ●...
  • Page 9 ② Install IP Scanner from the CD and run it after installation. Or download from https://www.specotech.com/ip-scanner/ 5C:F2:07:24:58:9A O4iD2 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer.
