Summary of Contents for DOREMIDI MIDI To TRS Box

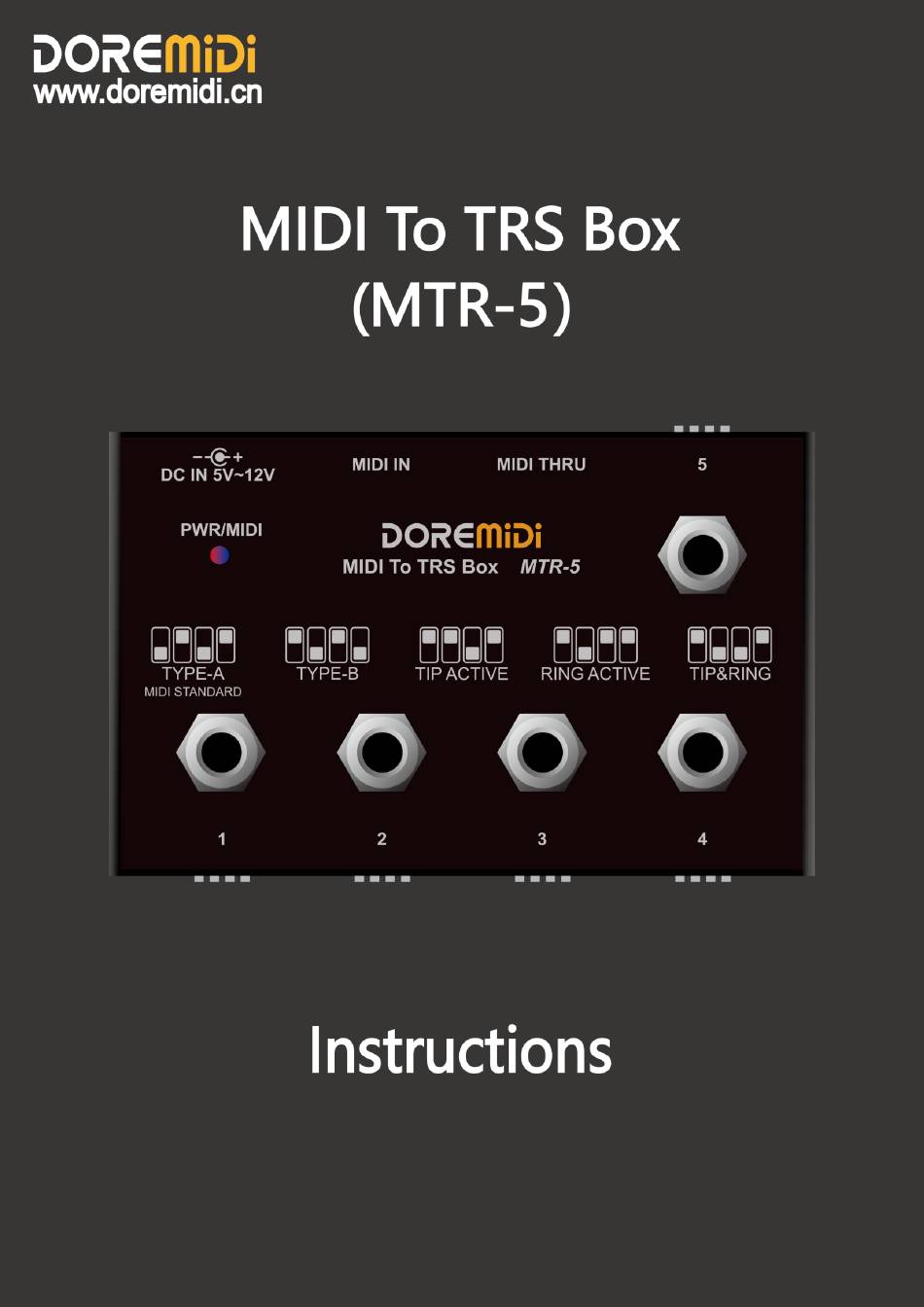

- Page 2 1. Introduction MIDI to TRS box (MTR-5) is a product designed by DOREMiDi to convert MIDI five-pin DIN interface into TRS interface. The MTR-5 can convert one MIDI input into five TRS outputs. The TRS interface of the MTR-5 has five type selector switches, which are compatible with the TRS interfaces of different instruments.
- Page 3 3) Select the type of TRS interface: Users can select the desired TRS type through the "SWITCH" of TRS-5 according to the TRS interface type of their own instruments. The MTR-5 has five TRS types to choose from. 4) Connect the MIDI device to the TRS interface: Using a 6.35mm cable, connect the MTR-5 to a MIDI device with a TRS input.
-
Page 4: Product Parameters
5. Connection 6. Product Parameters Name Description Model MTR-5 Size (L x W x H) 115*73*33mm Weight 240g Standby Power Ultra-low standby power consumption, 6mA@5V Consumption Working Power Ultra-low working power consumption, 9mA@5V Consumption Compatible with all musical instruments with MIDI standard interface, MIDI Compatibility compatible with all MIDI type messages MTR-5 uses hardware pass-through, all MIDI messages can be... -
Page 5: Questions And Answers
MTR-5 are the same, and check whether the connection of the TRS interface is firm. Manufacturer: Shenzhen Huashi Technology Co., Ltd. Address: Room 9A, 9th Floor, Kechuang Building, Quanzhi Technology Innovation Park, Shajing Street, Baoan District, Shenzhen, Guangdong, China Post Code: 518104 Customer Service Email: info@doremidi.cn...
