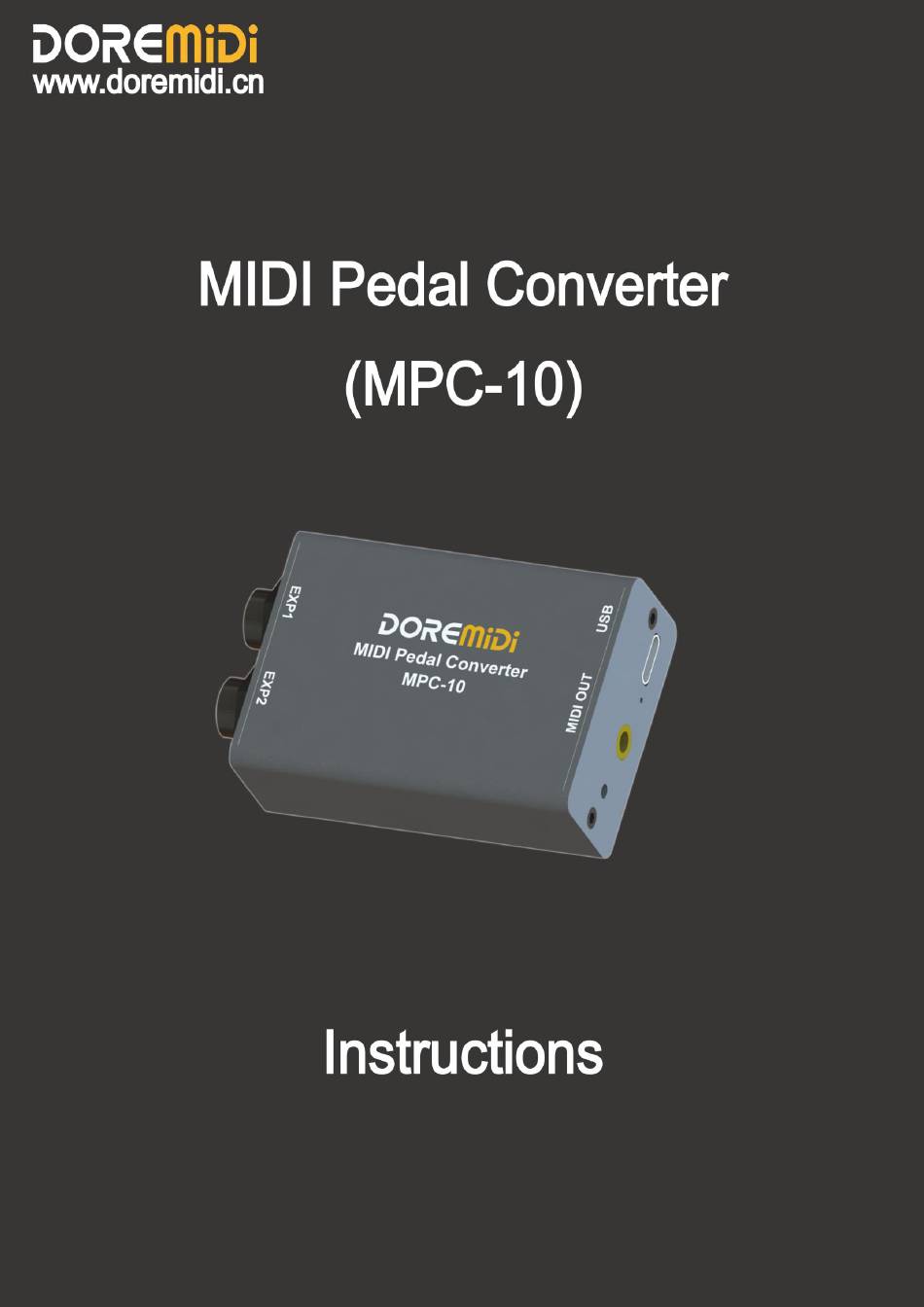

- Page 2 1. Introduction MIDI Pedal Converter (MPC-10) is a converter designed by DOREMiDi that can automatically detect multiple types of instrument pedals to solve the problem of insufficient number of pedals during performance. This product is compatible with positive polarity expression pedal, reverse polarity expression pedal, sustain pedal, and dual-switch pedal, FSR Electronic Hi-Hat.
- Page 3 (Note: If the pedal MIDI message is not set, the MPC-10 adopts the default value, the default value of the expression/hi-hat pedal is MIDI CC = 21. The default value of the single switch type pedal is MIDI CC = 64 (sustain).
- Page 4 a. Software environment requirements: Windows 7 and above systems, MacOS. b. Select the serial port number "COMxx" and click "Connect". Click “CHECK” to get the current pedal settings. d. Pedal Number: The serial number of the current pedal, which is selected according to the interface that the pedal is inserted into, and displayed after connection.
- Page 5 k. MODE: Set the trigger mode of the switch pedal, with Single, Toggle, Reset, Increase, Decrease five trigger modes: MODE Description Each time the pedal is pressed and released, the value of DATA1/DATA2 is Single sent only once Each time the pedal is pressed and released, the values of the Toggle DATA1/DATA2 Range are sent alternately Press the pedal to send the value of the first data frame of DATA1/DATA2,...
- Page 6 3. Example of pedal setting Set expression pedal Set the No. 2 pedal as an expression pedal, channel 1, and the CC controller is 21, as shown in the figure: Set the single switch type pedal Set the No. 2 pedal as a sustain pedal, channel 1, the CC controller is 64, and the CC controller value is 127, MODE = Reset, as shown in the figure:...
- Page 7 Set the dual switch pedal When setting up a dual switch type pedal, you need to connect the pedal to the product first, and then click Connect. At this time, the product will detect the number of connected pedals, select the corresponding pedal serial number to set.
- Page 8 5. Plug type of pedal MPC-10 supports a 6.35mm plug, which can be connected to a positive expression pedal, a reverse polarity expression pedal, a sustain pedal, a dual-switch pedal, and an electronic drum hi-hat. The pedal plug is shown in the figure: 6.
- Page 9 Question: The pedal type detected on the configuration software is incorrect. Answer: Please make sure that the pedal has been connected to MPC-10 normally. If you are connecting an expression pedal, please try to place the pedal in the middle range, and then click "SENSE"...
