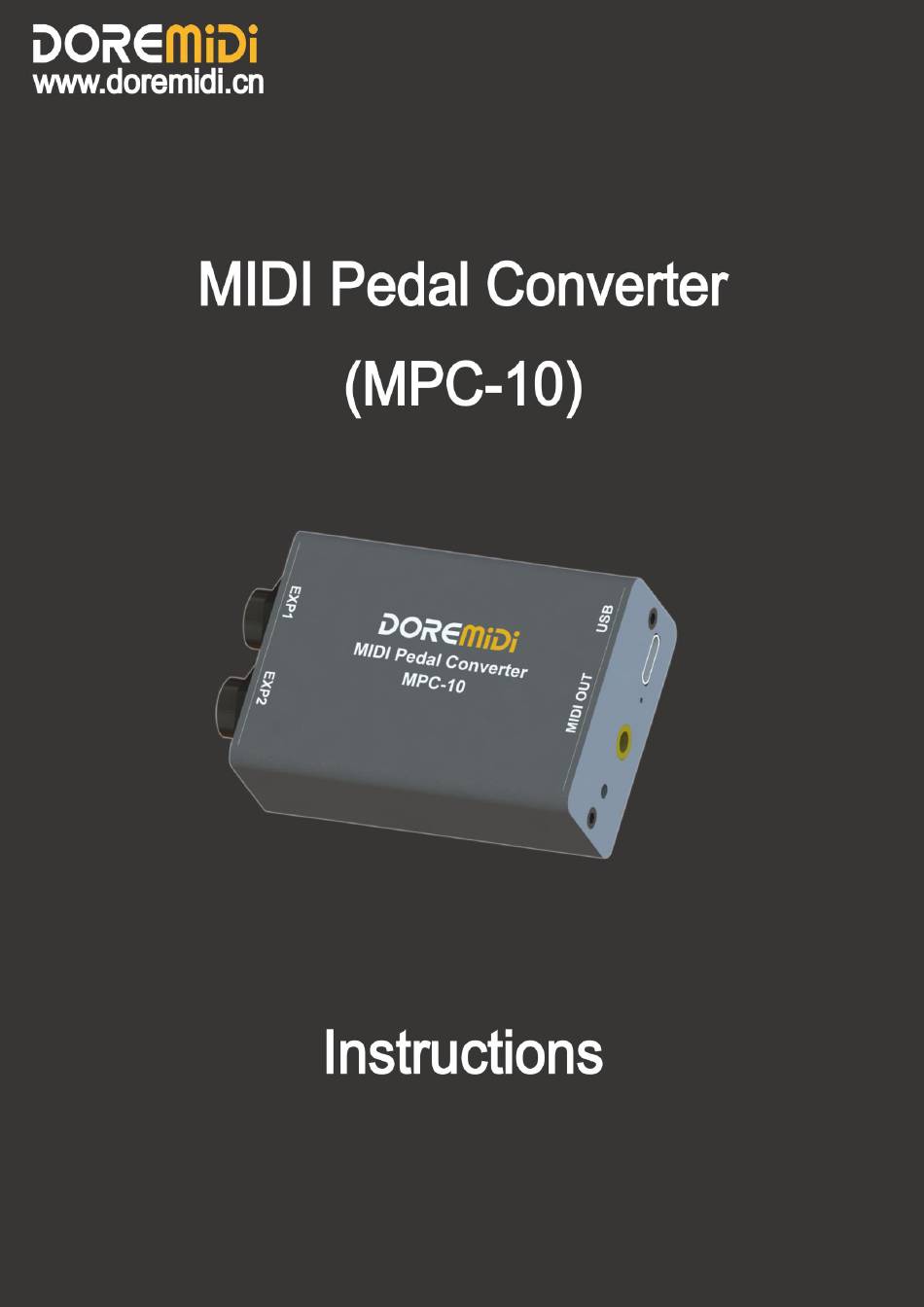

DOREMIDI MPC-10 Instructions Manual

Midi pedal converter
Hide thumbs Also See for MPC-10:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPC-10 and is the answer not in the manual?

Questions and answers

Related Manuals for DOREMIDI MPC-10

Summary of Contents for DOREMIDI MPC-10

  • Page 2 1. Introduction MIDI Pedal Converter (MPC-10) is a converter designed by DOREMiDi that can automatically detect multiple types of instrument pedals to solve the problem of insufficient number of pedals during performance. This product is compatible with positive polarity expression pedal, reverse polarity expression pedal, sustain pedal, and dual-switch pedal, FSR Electronic Hi-Hat.
  • Page 3 The indicator light flashes when the power is only supplied, and the indicator light is always on when it is connected to the computer.  MIDI DIN connection: Connect the MIDI OUT of the MPC-10 to the MIDI IN interface of the MIDI device through a 3.5 to MIDI DIN 5-pin cable.
  • Page 4 “Connect”. d. Pedal Type: There are two types of pedals: Expression and Switch, after connecting the pedal, click "SENSE" to get the pedal type. If the pedal is not connected to MPC-10, you can also directly select the pedal type.
  • Page 5  When MODE = Reset, depress the pedal to send the configured DATA2 value, release it to send DATA2 = 0.  When STATUS is PC or Pedal Type is Expression, MODE does not need to be configured. Set: After configuring the parameters, click "Set" to set the pedal MIDI message. Save File: Save the current pedal configuration content.
  • Page 6  Configure dual switch pedal When configuring a dual switch type pedal, you need to connect the pedal to MPC-10 first, and then click “Connect”. At this time, MPC-10 will detect the number of connected pedals, select the corresponding pedal number for configuration.
  • Page 7 5. Plug type of pedal MPC-10 supports a 6.35mm plug, which can be connected to a positive expression pedal, a reverse polarity expression pedal, a sustain pedal, a dual-switch pedal, and an electronic drum hi-hat. The pedal plug is shown in the figure: 6.
  • Page 8 Question: The pedal type detected on the configuration software is incorrect. Answer:  Please make sure that the pedal has been connected to MPC-10 normally.  If you are connecting an expression pedal, please try to place the pedal in the middle range, and then click "SENSE"...
