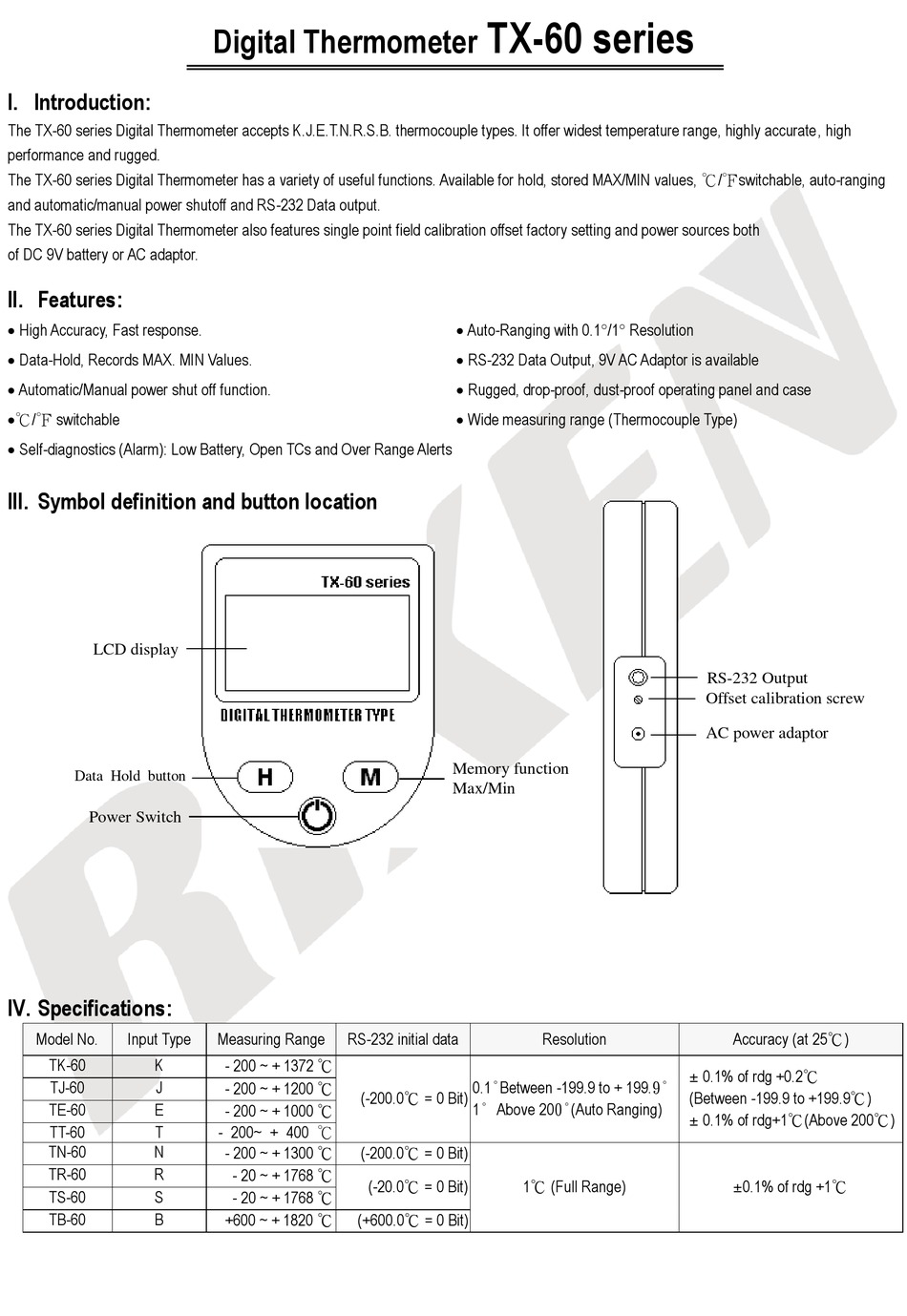

Rixen TX-60 Series Operation Instructions

I. Introduction:
The TX-60 series Digital Thermometer accepts K.J.E.T.N.R.S.B. thermocouple types. It offer widest temperature range, highly accurate, high
performance and rugged.
The TX-60 series Digital Thermometer has a variety of useful functions. Available for hold, stored MAX/MIN values, ℃/℉switchable, auto-ranging
and automatic/manual power shutoff and RS-232 Data output.
The TX-60 series Digital Thermometer also features single point field calibration offset factory setting and power sources both
of DC 9V battery or AC adaptor.
II. Features:
 High Accuracy, Fast response.
 Data-Hold, Records MAX. MIN Values.
 Automatic/Manual power shut off function.
℃/℉ switchable
 Self-diagnostics (Alarm): Low Battery, Open TCs and Over Range Alerts
III. Symbol definition and button location
LCD display
Data Hold button
Power Switch
IV. Specifications:
Model No. Input Type
TK-60 K
TJ-60 J
TE-60 E
TT-60 T
TN-60 N
TR-60 R
TS-60 S
TB-60 B
Digital Thermometer
Measuring Range RS-232 initial data
- 200 ~ + 1372 ℃
- 200 ~ + 1200 ℃
(-200.0℃ = 0 Bit)
- 200 ~ + 1000 ℃
- 200~ + 400 ℃
- 200 ~ + 1300 ℃ (-200.0℃ = 0 Bit)
- 20 ~ + 1768 ℃
(-20.0℃ = 0 Bit)
- 20 ~ + 1768 ℃
+600 ~ + 1820 ℃ (+600.0℃ = 0 Bit)
TX-60 series
 Auto-Ranging with 0.1/1 Resolution
 RS-232 Data Output, 9V AC Adaptor is available
 Rugged, drop-proof, dust-proof operating panel and case
 Wide measuring range (Thermocouple Type)
Memory function
Max/Min
Resolution
0.1°Between -199.9 to + 199.9°
1° Above 200°(Auto Ranging)
1℃ (Full Range)
RS-232 Output
Offset calibration screw
AC power adaptor
Accuracy (at 25℃)
± 0.1% of rdg +0.2℃
(Between -199.9 to +199.9℃)
± 0.1% of rdg+1℃(Above 200℃)
±0.1% of rdg +1℃
