Rixen TK-60 Manual

Specification of TK-62
Input
Thermocouple K-TYPE (CA)
Measuring Range - 200 ~ +1372℃ (-328.0 ~
+ 1372℉)
0.1℃ Between -199.9 to +199.9℃
Resolution
1℃ Above 200℃ (Auto Ranging)
Accuracy(at 25℃) ± 0.1% of rdg+0.2℃， ± 0.1% of rdg+1℃ ( Above 200℃)
Sampling rate Approx. 0.5 sec/reading
0.1℃/1Bit (- 200.0 ~ +1800.0℃) , Baud Rate=57600
RS-232 output
Power supply 9V006P Battery × 1 About 160 hours for continuing use
or DC-9V Adaptor (option)
140 x 56 x 32 mm (L x W x D), Approx.120g (without battery)
Dimension/Weight
Above data of "Accuracy" and "Sampling rate" exclude the error of temperature
※
probes.
The specification of TK-62 will be the lasted version of Rixen, and it's subject to
※
change without notice.

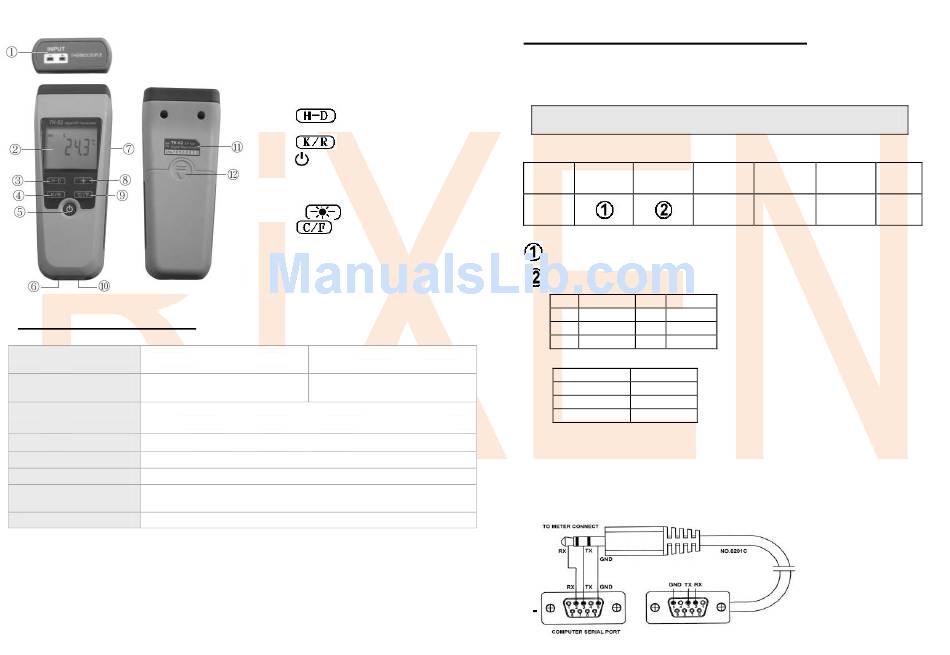

1. Input for thermocouple
probes
2. LCD display（with
Back-light）
3. key (Hold &
Data)
4. key
5. key（power）
6. External power supply
(AC adapter)
7. CAL calibration key
8. key(Back-light)
9. key
10. Signal output
11. Instrument model no.&
S/N no.
12. Battery cover
Thermocouple R-TYPE
(PR)
- 20 ~ +1772℃ (- 4 ~
+3221℉)

RS-232 Transmission Functions

The RS-232 transmission port of TK-62 is single side data transmission, it
functions with 3 signal composed grounding wires to receive and input. We
suggest that you choose the original transmission cable or shorter than 10
meters cable to connect PC and instrument.
※Notice: RS-232 transmission can not configure a variety of
instruments on the same port.
a. Transmission Status: 57600 / 8 / N / 1
b. Transmission Content (8BIT):
START TYPE MOD
A8H
：BIT [7:0] = Instrument Model
TK-62.R=00H
：BIT [7:4] = Thermocouple Type
K 0000 R 0100
J 0001 S 0101
E 0010 N 0110
T 0011 B 0111
BIT [3:2] = Instrument Status
NORMAL 00
HOLD 01
MAX 10
MIN 11
BIT [1] = Power Model
Automatic Power Off = 0
Manual Power Off = 1
BIT [0] = Power
Enough Power = 0
Low Power = 1
c. Illustration of Connection:

Instrument Description

MSD LSD CHECK
HI-DATA LO-DATA FFH
END
8AH
