Promax RANGER Neo 2 Quick Reference Manual

RANGER

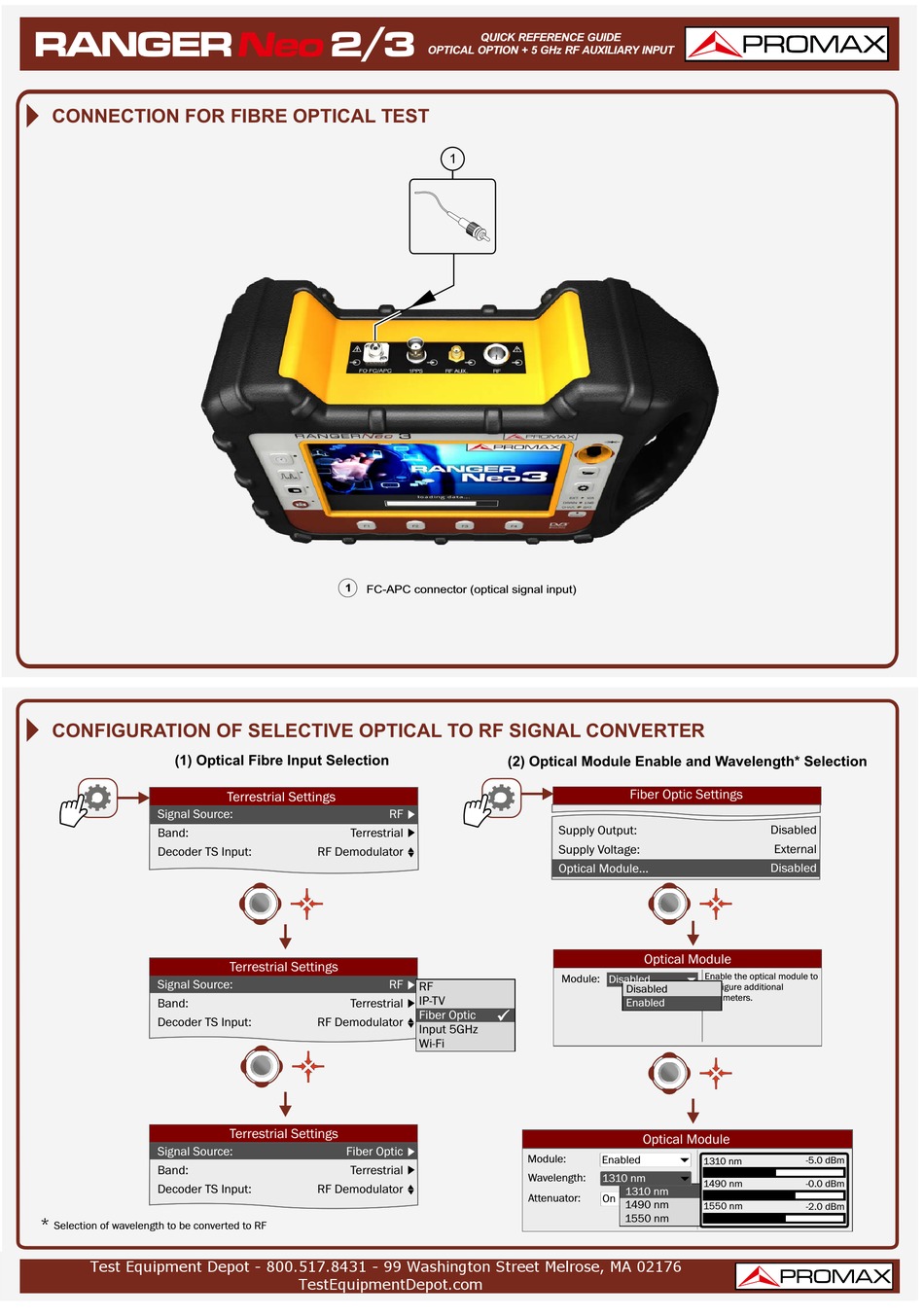

CONNECTION FOR FIBRE OPTICAL TEST
CONFIGURATION OF SELECTIVE OPTICAL TO RF SIGNAL CONVERTER
(1) Optical Fibre Input Selection
Signal Source:
Band:
Decoder TS Input:
Signal Source:
Band:
Decoder TS Input:
Signal Source:
Band:
Decoder TS Input:
*
Selection of wavelength to be converted to RF
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
Neo 2/3
1
FC-APC connector (optical signal input)
Terrestrial Settings
RF
Terrestrial
RF Demodulator
Terrestrial Settings
RF
Terrestrial
RF Demodulator
Terrestrial Settings
Fiber Optic
Terrestrial
RF Demodulator
TestEquipmentDepot.com
QUICK REFERENCE GUIDE
OPTICAL OPTION + 5 GHz RF AUXILIARY INPUT
1
(2) Optical Module Enable and Wavelength* Selection
Supply Output:
Supply Voltage:
Optical Module...
Module:
RF
IP-TV
Fiber Optic
Input 5GHz
Wi-Fi
Module:
Wavelength:
Attenuator:
Fiber Optic Settings
Disabled
External
Disabled
Optical Module
Enable the optical module to
Disabled
configure additional
Disabled
parameters.
Enabled
Optical Module
Enabled
1310 nm
1310 nm
1490 nm
1310 nm
On
1490 nm
1550 nm
1550 nm
-5.0 dBm
-0.0 dBm
-2.0 dBm
