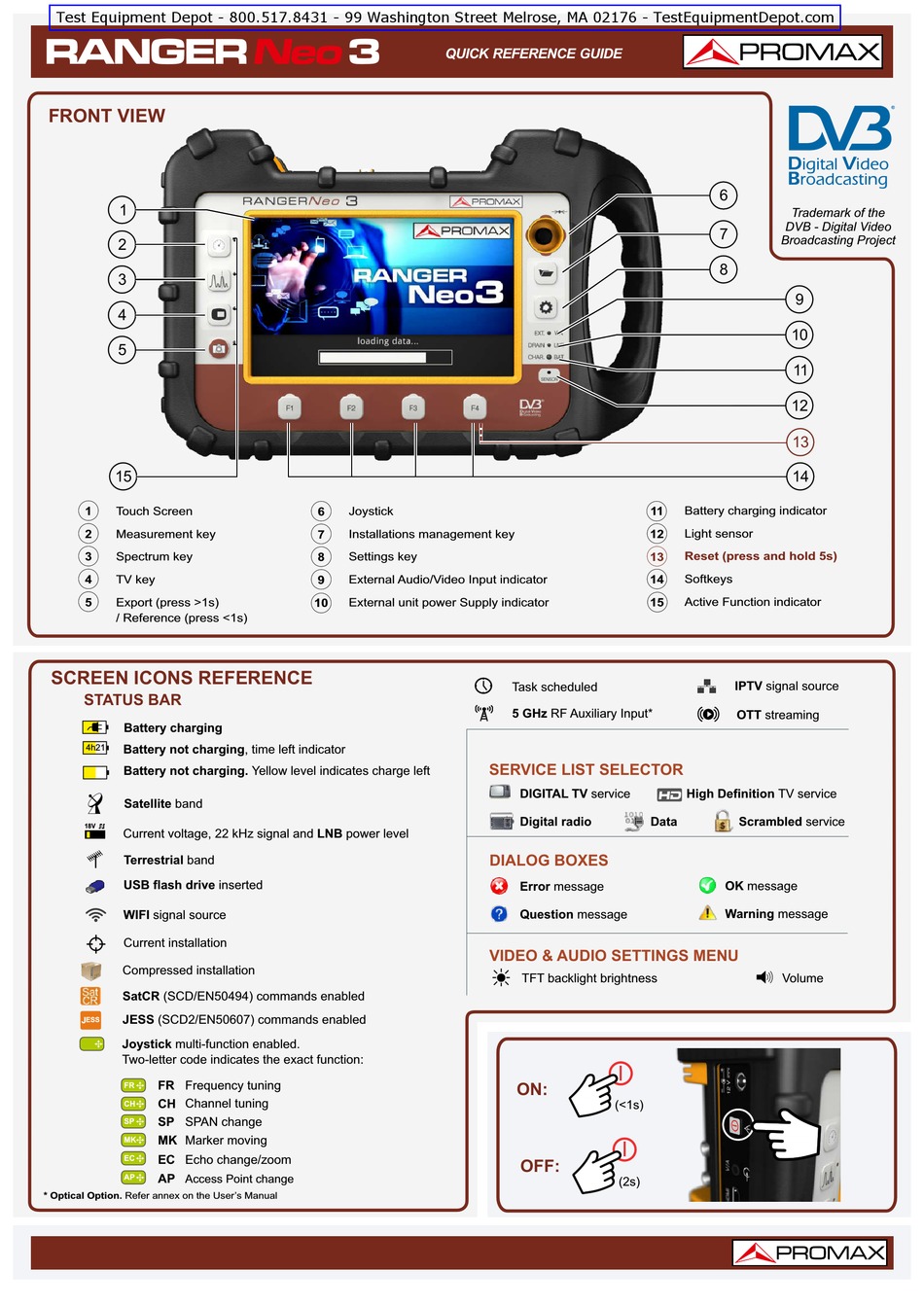

RANGER

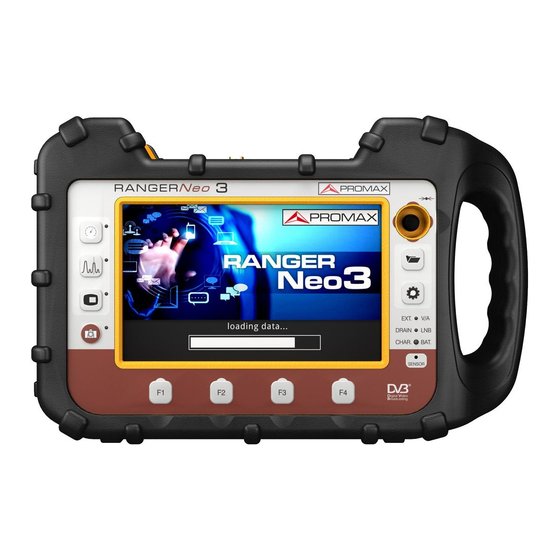

FRONT VIEW
1
2
3
4
5
15
1
Touch Screen
2
Measurement key
3
Spectrum key
4
TV key
5
Export (press >1s)
/ Reference (press <1s)
SCREEN ICONS REFERENCE
STATUS BAR
Battery charging
4h21
Battery not charging, time left indicator
Battery not charging. Yellow level indicates charge left
Satellite band
18V
Current voltage, 22 kHz signal and LNB power level
Terrestrial band
USB flash drive inserted
WIFI signal source
Current installation
Compressed installation
SatCR (SCD/EN50494) commands enabled
JESS (SCD2/EN50607) commands enabled
Joystick multi-function enabled.
Two-letter code indicates the exact function:
FR Frequency tuning
FR
CH Channel tuning
CH
SP SPAN change
SP
MK Marker moving
MK
EC
EC Echo change/zoom
AP
AP
Access Point change
* Optical Option. Refer annex on the User's Manual
Neo
3
Joystick
6
Installations management key
7
8
Settings key
External Audio/Video Input indicator
9
10
External unit power Supply indicator
QUICK REFERENCE GUIDE
Task scheduled
5 GHz RF Auxiliary Input*
SERVICE LIST SELECTOR
DIGITAL TV service
Digital radio
DIALOG BOXES
Error message
Question message
VIDEO & AUDIO SETTINGS MENU
TFT backlight brightness
ON:
(<1s)
OFF:
(2s)
6
Trademark of the
DVB - Digital Video
7
Broadcasting Project
8
9
10
11
12
13
14
Battery charging indicator
11
Light sensor
12
Reset (press and hold 5s)
13
14
Softkeys
Active Function indicator
15
IPTV signal source
OTT streaming
High Definition TV service
Data
Scrambled service
OK message
Warning message
Volume
