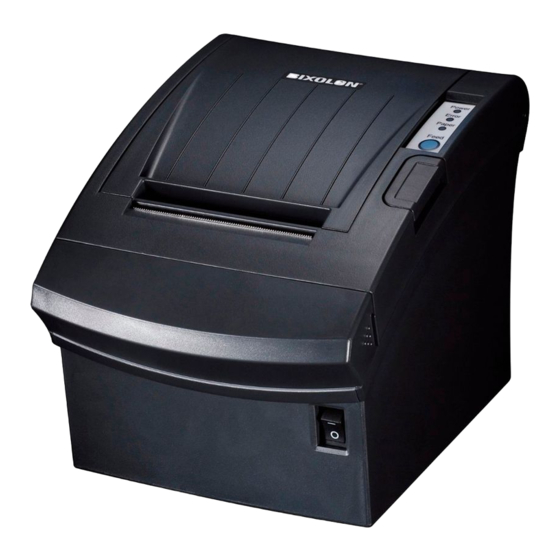

Control Commands Manual
SRP-350/352plusA&C
Thermal Printer
Rev. 1.04
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-350plusA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON SRP-350plusA

Summary of Contents for BIXOLON SRP-350plusA

  • Page 1 Control Commands Manual SRP-350/352plusA&C Thermal Printer Rev. 1.04 http://www.bixolon.com...
  • Page 2 SRP-350/352plusA&C 1. Control Commands List Command Name Horizontal tab Print and line feed Print and return to standard mode (in page mode) Print and carriage return Cancel print data in page mode DLE EOT Real-time status transmission DLE DC4 Generate pulse in real-time ESC SP Set right-side character spacing ESC !
  • Page 3 SRP-350/352plusA&C Command Name ESC d Print and feed n lines ESC p General pulse ESC t Select character code table ESC { Turn upside-down printing mode on/off FS p print NV bit image FS q Define NV bit image GS ! Select character size GS $ Set absolute vertical print position in page mode...
  • Page 4 SRP-350/352plusA&C 2. Control Commands Details 2-1 Command Notation [Name] The name of the command. [Format] The code sequence. ASCII Indicates the ASCII equivalents. Hex indicates the hexadecimal equivalents. Decimal indicates the decimal equivalents. [ ] k indicates the contents of the [ ] should be repeated k times. [Range] Gives the allowable ranges for the arguments.
  • Page 5 SRP-350/352plusA&C [Name] Print and carriage return. [Format] ASCII Decimal ▪ When automatic line feed is enabled, this command functions [Description] the same as LF. ▪ When automatic line feed is disabled, this command is ignored [Notes] ▪ The automatic line feed is ignored with a serial interface model. ▪...
  • Page 6 SRP-350/352plusA&C n=1 : Printer status Off/On Decimal Function Fixed. Fixed. Drawer kick-out connector pin 3 is LOW. Drawer kick-out connector pin 3 is HIGH. On-Line. Off-Line. Fixed. Not in on-line waiting status. During on lines waiting status. Paper FEED button is turned Off. Paper FEED button is turned On.
  • Page 7 SRP-350/352plusA&C n=4 : Continuous paper sensor status Off/On Decimal Function Fixed. Fixed. Paper roll near-end sensor : paper adequate. Paper roll near-end sensor : paper near end. Paper roll near-end sensor : paper adequate. Paper roll near-end sensor : paper near end. Fixed.
  • Page 8 SRP-350/352plusA&C ESC SP n [Name] Set right-side character spacing. [Format] ASCII Decimal 0 ≤ n ≤ 255 [Range] [Default] ▪ Sets the character spacing for the right side of the character to [Description] [n ×horizontal or vertical motion units]. ▪ The maximum right-side character spacing is : - For ANK/Multilingual model, 35.955mm {255/180”}.
  • Page 9 SRP-350/352plusA&C ESC % n [Name] Select/cancel user-defined character set. [Format] ASCII Decimal 0 ≤ n ≤ 255 [Range] [Default] ▪ Select or cancels the user-defined character set. [Description] - When the LSB of n is 0, the user-defined character set is canceled. - When the LSB of n is 1, the user-defined character set is selected.
  • Page 10 SRP-350/352plusA&C double-density - 10 - Rev. 1.04...

  • Page 11: Table Of Contents

    SRP-350/352plusA&C ESC - n [Name] Turn underline mode on/off. [Format] ASCII Decimal 0 ≤ n ≤ 2, 48 ≤ n ≤ 50 [Range] [Default] ▪ Turn underline mode on or off, based on the following values of n : [Description] Function 0,48 Turns off underline mode.
  • Page 12 SRP-350/352plusA&C ESC ? n [Name] Cancel user-defined characters. [Format] ASCII Decimal 32 ≤ n ≤ 126 [Range] ▪ Cancels user-defined characters, specified with character codes on a [Description] selected sheet. ESC @ [Name] Initialize printer. [Format] ASCII Decimal 32 ≤ n ≤ 126 [Range] ▪...
  • Page 13 SRP-350/352plusA&C ESC G n [Name] Turn double-strike mode on/off. [Format] ASCII Decimal 0 ≤ n ≤ 255 [Range] [Default] ▪ Turns double-strike mode on or off. [Description] - When the LSB of n is 0, double-strike mode is turned off. - When the LSB of n is 1, double-strike mode is turned on.

  • Page 14: [Range] 0 ≤ N ≤ 2, 48 ≤ N

    SRP-350/352plusA&C ESC R n [Name] Select an international character set. [Format] ASCII Decimal 0 ≤ n ≤ 13 [Range] [Default] ▪ Selects international character set in from the following table : [Description] Character set Character set U.S.A Spain I France Norway Germany Denmark II...

  • Page 15: [Default

    SRP-350/352plusA&C Function 0, 48 Turn off 90°clockwise rotation mode. 1, 49 Turn on 90°clockwise rotation mode. 2, 50 ESC W xL xH yL yH dxL dxH dyL dyH [Name] Set relative print position. [Format] ASCII Decimal 0 ≤ (xL + xH x 256) ≤ 65535 (0 ≤ xL ≤ 255, 0 ≤ xH ≤ 255) [Range] 0 ≤...

  • Page 16: [Range] 0 ≤ N ≤ 255

    SRP-350/352plusA&C ESC a n [Name] Select justification. [Format] ASCII Decimal 0 ≤ n ≤2, 48 ≤ n ≤50 [Range] [Default] ▪ In standard mode, aligns all the data in one line to the position specified [Description] by n as follows : Justification 0, 48 Left justification...

  • Page 17: Decimal

    SRP-350/352plusA&C ESC t n [Name] Select character code table. [Format] ASCII Decimal 0 ≤ n ≤ 5, 16 ≤ n ≤ 24, 27 ≤ n ≤ 30, n=255 [Range] [Default] For model without Thai character support : n=0 For model with Thai character support : n = 20 ▪...
  • Page 18 SRP-350/352plusA&C ESC { n [Name] Turns upside-down printing mode on/off. [Format] ASCII Decimal 0 ≤ n ≤ 255 [Range] [Default] ▪ Turns upside-down printing mode on or off. [Description] - When the LSB of n is 0, upside-down printing mode is turned off. - When the LSB of n is 1, upside-down printing mode is turned on.
  • Page 19 SRP-350/352plusA&C ▪ Frequent write command executions by this command may damage to [Notes] the NV memory. Therefore, it is recommended to write to the NV memory 10 times or less a day. ▪ During processing of this command, the printer is BUSY while writing the data to the NV bit image memory and stops receiving data.
  • Page 20 SRP-350/352plusA&C GS $ nL nH [Name] Set absolute vertical print position in page mode. [Format] ASCII Decimal 0 ≤ (nL + nH x 256) ≤ 65535 (0 ≤ nL ≤ 255, 0 ≤ nH ≤ 255) [Range] ▪ Sets the absolute vertical print starting position to [(nL + nH × 256) × [Description] (vertical or horizontal motion units)].
  • Page 21 SRP-350/352plusA&C GS ( L pL pH m fn [parameter] GS 8 L p1 p2 p3 p4 m fn [parameter] [Name] Select graphics data. [Format] ASCII pL pH m fn [parameter] 1D 28 4C pL pH m fn [parameter] Decimal 40 76 pL pH m fn [parameter] ASCII p1 p2 p3 p4 m fn [parameter] 1D 28 4C p1 p2 p3 p4 m fn [parameter]...
  • Page 22 SRP-350/352plusA&C <Function 48> GS ( L pL pH m fn (fn=0, 48) [Format] ASCII Decimal [Range] (pL + pH x 256) = 2 (pL=2, pH=0) m=48 fn=0, 48 ▪ Transmits the total capacity of the NV bit-image memory (number of bytes [Description] in the memory area).
  • Page 23 SRP-350/352plusA&C <Function 64> GS ( L pL pH m fn d1 d2 (fn=64) [Format] ASCII Decimal [Range] (pL + pH x 256) = 4 (pL=4, pH=0) m=48 fn=64 d1=75, d2=67 ▪ Transmits the defined NV graphics key code list. [Description] - When the key code is present : Hexadecimal Decimal...
  • Page 24 SRP-350/352plusA&C <Function 65> GS ( L pL pH m fn d1 d2 d3 (fn=65) [Format] ASCII Decimal [Range] (pL + pH x 256) = 5 (pL=5, pH=0) m=48 fn=65 d1=67, d2=76, d3=82 ▪ Deletes all defined NV graphics data. [Description] <Function 66>...
  • Page 25 SRP-350/352plusA&C ▪ The default value is 256KB. [Description] ▪ Defines the raster graphics data in the NV graphics area. - b specifies the number of the color of the defined data. - xL, xH specifies the defined data in the horizontal direction to (xL + xH x 256) dots.
  • Page 26 SRP-350/352plusA&C <Function 112> GS ( L pL pH m fn a bx by c xL xH yL yH d1...dk (fn=112) [Format] ASCII pL pH m fn a bx by c xL xH yL yH d1...dk pL pH m fn a bx by c xL xH yL yH d1...dk Decimal pL pH m fn a bx by c xL xH yL yH d1...dk ▪...
  • Page 27 SRP-350/352plusA&C GS ( N pL pH fn [parameter] [Name] Select character style. ▪ Executes commands for the character style as specified by the function [Description] code fn. Format Function No. Description GS ( N pL pH fn m Function 48 Selects character color.
  • Page 28 SRP-350/352plusA&C GS ( k pL pH cn fn [parameter] [Name] Specify and print the symbol. ▪ Processes the data concerning two-dimensional code. (PDF417, QR [Description] Code) - Symbol type is specified by cn. - Function is specified by fn. Type of Symbol PDF417 (2-dimensional code) QR Code (2-dimensional code) Function...
  • Page 29 SRP-350/352plusA&C For QR Code symbol (when cn=49) ▪ The symbol data specified by Function 180 d1...dk is stored in the printer and is printed by the specification of Function 181. The symbol data in the save area is reserved until the following processing is performed : - Function 080 or 181 is executed - ESC @ is executed - The printer is reset or the power is turned off...
  • Page 30 SRP-350/352plusA&C <Function 066> GS ( k pL pH cn fn n (fn=66) [Format] ASCII pL pH cn 1D 28 00 30 42 Decimal 40 107 48 66 [Range] (pL + pH x 256) = 3 (pL=3, pH=0) cn=48 fn=66 n=0, 3 ≤ n ≤ 90 [Default] [Description] Specifies the number of rows of the data area of PDF417.
  • Page 31 SRP-350/352plusA&C <Function 069> GS ( k pL pH cn fn m n (fn=69) [Format] ASCII Decimal [Range] (pL + pH x 256) = 4 (pL=4, pH=0) cn=48 fn=69 m=48 48 ≤ n ≤ 8 [m=48] [Default] [Description] Specifies the error correction level of PDF417. Function The error correction level is specified by “level”...
  • Page 32 SRP-350/352plusA&C <Function 080> GS ( k pL pH cn fn m d1...dk (fn=80) [Format] ASCII d1...dk d1...dk Decimal d1...dk 4 ≤ (pL + pH x 256) ≤ 65535 (0 ≤ pL ≤ 255, 0 ≤ pH ≤ 255) [Range] cn=48 fn=80 m=48 0 ≤...

  • Page 33: Ascii Gs 1D 6B

    SRP-350/352plusA&C ▪ The following data are added automatically by the encode processing. - Start pattern and stop pattern. - Indicator code word of left and right. - The descriptor of symbol length. (the first code word in the data area) - The error correction code word calculated by modulus 929.
  • Page 34 SRP-350/352plusA&C <Function 167> GS ( k pL pH cn fn n (fn=67) [Format] ASCII Decimal [Range] (pL + pH x 256) = 3 (pL=3, pH=0) cn=49 fn=67 1 ≤ n ≤ 8 [Default] [Description] Specifies the size of a module of QR Code symbol. ▪...

  • Page 35: Ascii Gs 1D

    SRP-350/352plusA&C ▪ Data stored in the symbol save are by this function is processed by [Notes] Functions 181 and 182. The data in the symbol save area are reserved after processing Function 181. ▪ k bytes of d1..dk are processed as symbol data. ▪...
  • Page 36 SRP-350/352plusA&C - Error Correction code words (employs the Reed-Solomon Error Detection and Correction algorithm) - Pad codeword - Number of bits in Character Count Indicator - Mode Indicator - Terminator - Alignment Patterns (when model 2 is selected) - Extension Patterns (when model 1 is selected) ▪...

  • Page 37: [Default

    SRP-350/352plusA&C GS / m [Name] Print downloaded bit image. [Format] ASCII Decimal 0 ≤ m ≤ 3, 48 ≤ m ≤ 51 [Range] ▪ Prints the defined downloaded bit image in m mode. [Description] Mode Vertical dot density Horizontal dot density 0, 48 Normal 180 dpi...
  • Page 38 3, 51 Firmware version ID Depends on firmware version. - n specifies the printer information. Printer ID type Firmware version Depends on firmware version Manufacturer BIXOLON Printer name SRP-350plus GS L nL nH [Name] Set left margin. [Format] ASCII Decimal 0 ≤...
  • Page 39 SRP-350/352plusA&C GS T n [Name] Set print position to the beginning of print line. [Format] ASCII Decimal [Range] n=0, 1, 48, 49 ▪ Sets the print position to the beginning of the print line. [Description] - n specifies how data in the print buffer is processed when this command is executed.
  • Page 40 SRP-350/352plusA&C GS W nL nH [Name] Set printing area width. [Format] ASCII Decimal 0 ≤ nL ≤ 255, 0 ≤ nH ≤ 255 [Range] [Default] (nL + nH x 256)=512 (nL=0, nH=2) (for 80mm of the paper width) (nL + nH x 256)=384 (nL=128, nH=1) (for 60mm of the paper width) (nL + nH x 256)=360 (nL=104, nH=1) (for 58mm of the paper width)
  • Page 41 SRP-350/352plusA&C GS a n [Name] Enable/Disable Automatic Status Back (ASB). [Format] ASCII Decimal 0 ≤ n ≤ 255 [Range] [Default] n=0 when memory switch 1-3 is Off. n=2 when memory switch 1-3 is On. ▪ Specifies the status items for ASB (Automatic Status Back). [Description] Bit Off/On Hex Decimal...
  • Page 42 SRP-350/352plusA&C ▪ When the cover is open while the printing is stopped, the printer becomes offline. - Second byte (printer information) Bit Off/On Hex Decimal Function Not on online waiting status. During online waiting status. Panel button OFF. Panel button ON. No mechanical error.
  • Page 43 SRP-350/352plusA&C GS b n [Name] Turns smoothing mode on/off. [Format] ASCII Decimal 0 ≤ nL ≤ 255 [Range] [Default] ▪ Turns smoothing mode on or off. [Description] - When the LSB of n is 0, smoothing mode is turned off. - When the LSB of n is 1, smoothing mode is turned on.
  • Page 44 SRP-350/352plusA&C ① GS k m d1...dk NUL ② GS k m n d1...dn [Name] Print bar code. ① [Format] ASCII d1...dk d1...dk Decimal d1...dk ② ASCII d1...dn d1...dn Decimal d1...dn ① 0 ≤ m ≤ 6 (k and d depend on the bar code system used) [Range] ②...
  • Page 45 SRP-350/352plusA&C GS r n [Name] Transmit status. [Format] ASCII Decimal [Range] n=1, 2, 49, 50 ▪ Transmits the normal status specified by n as follows : [Description] Function 1, 49 Transmits paper sensor status. 2, 50 Transmits drawer kick-out connector status. ▪...
  • Page 46 SRP-350/352plusA&C ▪ Prints a raster bit image in m mode. [Description] - m specifies the bit image mode. Mode Vertical dot density Horizontal dot density 0, 48 Normal 180 dpi 180 dpi 1, 49 Double-width 180 dpi 90 dpi 2, 50 Double-height 90 dpi 180 dpi...
