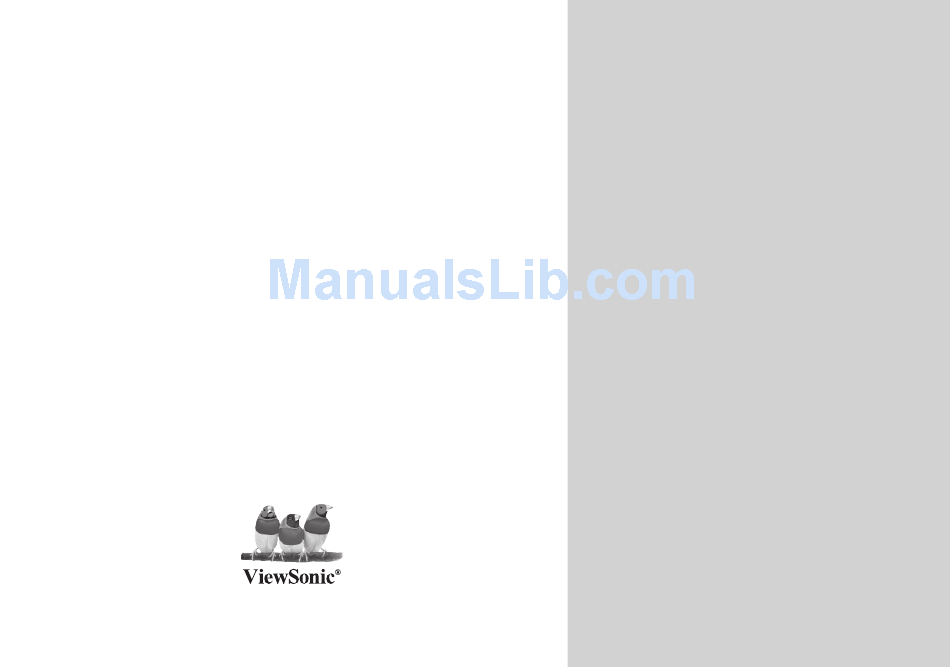

- Page 1 ViewSonic ® DPG807 - User Guide Digital Photo Frame - 使用手冊 (簡中) - 使用手冊 (繁中) Model No.: VS12289-1W...
-
Page 2: Important Safety Instructions
Important Safety Instructions Do not use the equipment near water. Wipe the machine with a soft and dry cloth. Do not block any vent holes. Please install the product in accordance with the manufacturer’s instructions. Do not use the product on your legs for a long time because it gets hot and you may be burned. P lease avoid installing the product in a place where the temperature is above 35°C or lower than -5°C, or in a place that is moist or wet. P rotect the power cord plug, outlet, and connections to other equipment from damage by trapping and squeezing. Please only use devices and accessories specified by the manufacturer. T he unit is hot pluggable. However it is recommended that the power be turned off before the memory card is inserted or removed. Do not remove the memory card during data access. The data may be lost and the product could be damaged. 10. Disconnect the power cord if the product will not be used for an extended period. 11. D o not repair, disassemble, or modify the product. Only qualified ViewSonic personnel can check and repair any damage to the machine. 12. T he unauthorized playing of certain audio or image files may infringe the related copyright laws under certain circumstances. 13. W hen you use the internal speakers, do not adjust the volume to a high level, or the sounds may distort and become unpleasant. 14. When you view pictures for an extended period of time your eyes may become strained. 15. Do not touch the screen because it is difficult to remove finger marks. 16. Avoid exposing the digital photo frame to direct sunlight. Adjust the angle to reduce glare. 17. Careful attention should always be paid when moving the digital photo frame. 18. Make sure the place where the digital photo frame is placed is clean and dry. -
Page 3: Declaration Of Rohs Compliance
Cadmium (Cd) Hexavalent Chromium (Cr 6+ ) Polybrominated biphenyls (PBB) Polybrominated diphenyl ethers (PBDE) Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below: Examples of exempted components are: 1. M ercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not specifically mentioned in the Annex of RoHS Directive. 2. L ead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic ceramic parts (e.g. piezoelectronic devices). 3. L ead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead). 4. L ead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. ViewSonic Proposed Maximum Concentration 0.1% 0.1% 0.01% 0.1% 0.1% 0.1% Actual Concentration < 0.1% < 0.1% < 0.01% < 0.1% < 0.1% < 0.1%... -
Page 4: Copyright Information
Copyright Information © ® Copyright ViewSonic Corporation, 2008. All rights reserved. ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation. Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation. Product Name: Model Number: Document Number: Serial Number: Purchase Date: ViewSonic For Your Records DPG807 ViewSonic Digital Photo Frame VS12289-1W DPG807-1W_UG_ENG Rev. 1B 08-11-08 __________________________________ __________________________________ DPG807... -
Page 5: Table Of Contents
Introduction ...1 Important Safety Precautions...2 Features ...4 Location of Controls ...5 Remote Control ...6 Replacing the battery...7 Getting Started ...7 Connecting the power cable ...7 Inserting memory cards ...8 Connecting a USB device...8 Copy files from computer...9 Viewing the first slideshow...10 Viewing Photos... - Page 6 Watching Videos...16 Managing Files ...17 Coping files...18 Deleting files...18 Changing Frame Settings ...19 Settings menus...19 Setting auto power on/off...21 Setting time ...21 Setting alarm clock ...22 Displaying Calendar...23 Frequently Asked Questions ...24 Specification ...26...
-
Page 7: Introduction
We assume no responsibility for the errors or omissions in this manual. We also have no responsibility for damages or loss of data caused by improper operation. The instruction manual is subject to change for improvement without notice. Trademarks and trade names used in this instruction manual are owned by their respective companies or organizations. ViewSonic DPG807... -
Page 8: Important Safety Precautions
Protect the power cord from being walked on or pinched particularly at plugs, receptacles and the point where the cord attached to the Digital Photo Frame. Unplug the power from the outlet when the unit is not in use. ViewSonic DPG807... - Page 9 Disclaimer: Authorized Dealer does not recommend the use of any ammonia or alcohol-based cleaners on the LCD screen or plastic casing. Some chemical cleaners have been reported to damage the screen and/or display case. Authorized Dealer will not be liable for damage resulting from the use of any ammonia or alcohol-based cleaners. ViewSonic DPG807...
-
Page 10: Features
USB Host for connecting to the USB mass storage USB2.0 high speed transmission for connecting to your computer to download the files. Two ways to control: either by 7 touch-keys on the front panel of the unit, or by infrared remote control. ViewSonic DPG807... -
Page 11: Location Of Controls
Frame base Infra-Red Receiver Window [ ] Touch to start playback or confirm the selection. ViewSonic [M] Touch to return to the main menu. Touch and hold to display the OSD menu while playing photos or movies [ ] Touch to return to the previous menu. -
Page 12: Remote Control
Press to return to the previous menu. Press to search forward quickly during music or movie playback. Press to starts slide show with music on the background. Press to stop or start music playback during slideshow. VOL- Press to decrease the volume. ViewSonic DPG807... -
Page 13: Replacing The Battery
You can leave the power switch on, and use the [ ] button on the remote control to turn the frame on or to standby mode. To turn off the power of the Digital Photo Frame completely, slide the power switch from ON to OFF. ViewSonic DPG807... -
Page 14: Inserting Memory Cards
To remove the cards, pull out the card slowly. Connecting a USB device You can view the pictures on your USB memory device by inserting it into the USB HOST slot. ViewSonic • Multimedia Card (MMC) •... -
Page 15: Copy Files From Computer
Do not disconnect the USB cable or remove the card when coping or transferring the files to the built-in memory or card on the photo frame. Make sure your computer is running Windows 2000 or above, e.g. Windows XP or Vista, with USB port supported. ViewSonic DPG807... -
Page 16: Viewing The First Slideshow
If no button is pressed for 6 seconds in the main menu after inserting a memory device, the slideshow will start automatically. If several memory devices connect to the frame simultaneously, the Digital Photo Frame will read the memory source by the priority order: USB, CF, SD/MMC/MS/xD, NAND flash (only for model with internal memory). ViewSonic DPG807... -
Page 17: Viewing Photos
Press the [ ] or [ ] button on the remote control to highlight a picture source. To start a slideshow, press the [ ] button. To display photo, music, movie or file individually, press the [OK] button. ViewSonic DPG807... -
Page 18: Running A Slideshow
To navigate through the thumbnails, press the [ ], [ ], [ ] or [ ] on the remote control. Note: You can also press the [ ] button from a slideshow or a single view to return to the thumbnails view. ViewSonic DPG807... -
Page 19: Browsing A Single Picture
The picture in 4:3 aspect ratio can only be displayed in 4:3. The picture always appears in 4:3 full screen regardless of your selection. This function does not work for a picture with resolution less than 800*600. ViewSonic ] button repeatedly. When a picture is magnified, press the [ ], [ ], [ ] or [ ] to view... -
Page 20: Using Osd Menu
To start slide show with background music from the first picture, highlight To zoom in the picture, highlight the other part of the picture. ViewSonic and press the [OK] button. The and press the [OK] button. and press the [OK] button. -
Page 21: Listening To Music
Each time the button is pressed, the speed of search changes accordingly. Press the [OK] button to resume the playback from the searched point. To stop playback, press the [ ] button. Press it again to return to the mode menu. ViewSonic DPG807... -
Page 22: Watching Videos
To fast search forward or backward within a track, press the [ ] or [ ] button. Each time the button is pressed, the speed of search changes accordingly. Press the [OK] button to resume the playback from the searched point. To stop playback and return to the video list menu, press the [ ] button. ViewSonic DPG807... -
Page 23: Managing Files
To open a folder, highlight it and press the [OK] or [ ] button. To return to superior directory, press the [ ] button. To play a file, highlight it and press the [OK] button. To return to file list, press the [ ] button. ViewSonic DPG807... -
Page 24: Coping Files
Use the [ ] or [ ] button to select DELETE and press the [OK] button. Use the [ ] or [ ] button to select “ ViewSonic ” or “ ” to delete the file or exit without deleting. -
Page 25: Changing Frame Settings
Specify the transition effect between pictures in a slide show. TRANSITION EFFECT The available options include: Random, Fading, Off, Bottom_To_Top, Top_To_Bottom, Left_To_Right, Right_To_Left, Door_Close, Door_Open, Hori_Cross, Verti_Cross. Choose the file repeat mode for music playback. MUSIC REPEAT MODE ViewSonic DPG807... - Page 26 Set the key-light off time. The key-light will be off after the set time if no key is touched. Key-light Timeout The available options include: 5s, 10s, 20s. TIME Set calendar to the current date and time. ALARM Set the alarm time, ring tone and schedule. DEFAULT Reset all settings to the default setting. ViewSonic DPG807...
-
Page 27: Setting Auto Power On/Off
Press the [ ] or [ ] button to highlight next or previous setting (year, month, day, hour, minutes). And press the [ ] or [ ] button to adjust the time. Press the [OK] button to confirm. ViewSonic DPG807... -
Page 28: Setting Alarm Clock
Off: Disables the auto power on or off function. Every: The Digital Photo Frame will turn on or off at the preset time everyday. Once: The Digital Photo Frame only turns on or off at the preset time once. Press the [OK] button to confirm. ViewSonic DPG807... -
Page 29: Displaying Calendar
To exit the Calendar mode, press the [ ] button. Note: The Digital Photo Frame will switch to Calendar mode automatically if it is not used for 5 minutes (except for Pause mode). The date and time can be adjusted in the SETUP mode. ViewSonic DPG807... -
Page 30: Frequently Asked Questions
Note: Some digital cameras save images into non-standard formats. Please refer to the operating manual of your camera for specifics. Why do some pictures load faster than others? • Higher resolution pictures load slower. Use pictures with lower resolution to speed up the loading time. Note: The Digital Photo Frame supports up to 4000*4000 pixels picture display. ViewSonic DPG807... - Page 31 Don’t slide the power switch to OFF position after you turn the Digital Photo Frame to standby mode using the Remote Control. What is the best picture resolution displayed on the screen? • The best resolution is 800*600 and the max picture resolution of this Digital Photo Frame is 4000*4000 pixels. ViewSonic DPG807...
-
Page 32: Specification
Supported photo format JPEG, Maximum resolution:4000*4000 pixels Supported audio format MP3: Bit rate 32~320Kbps (CBR, VBR); WMA: 32KBps~320KBps（Option） Supported video format MPEG-1(MP@ML), MPEG-4(ASP, Xvid Compliant), M-JPEG(up to VGA, 30fps) Operating temperature 5℃ ~ 35℃ Dimension 216*182*28.3 mm Weight 603.4g ViewSonic DPG807... -
Page 33: Customer Support
Customer Support For technical support or product service, see the table below or contact your reseller. Note: You will need the product serial number. Country/Region Web Site China www.viewsonic.com.cn Hong Kong www.hk.viewsonic.com/support/ Telephone e-mail 800 820 3870 service.cn@cn.viewsonic.com 852 3102 2900 service@hk.viewsonic.com... -
Page 34: Limited Warranty
ViewSonic Digital Photo Frame are warranted for 1 year for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. What the warranty does not cover: 1. A ny product on which the serial number has been defaced, modified or removed. 2. D amage, deterioration or malfunction resulting from: A ccident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product. R epair or attempted repair by anyone not authorized by ViewSonic. c. C auses external to the product, such as electric power fluctuations or failure. U se of supplies or parts not meeting ViewSonic’s specifications. Normal wear and tear. A ny other cause which does not relate to a product defect. 3. A ny product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time. How to get service: 1. F or information about receiving service under warranty, contact ViewSonic Customer Support (please refer to Customer Support page). You will need to provide your product’s serial number.
