Summary of Contents for ViewSonic DPX704WH

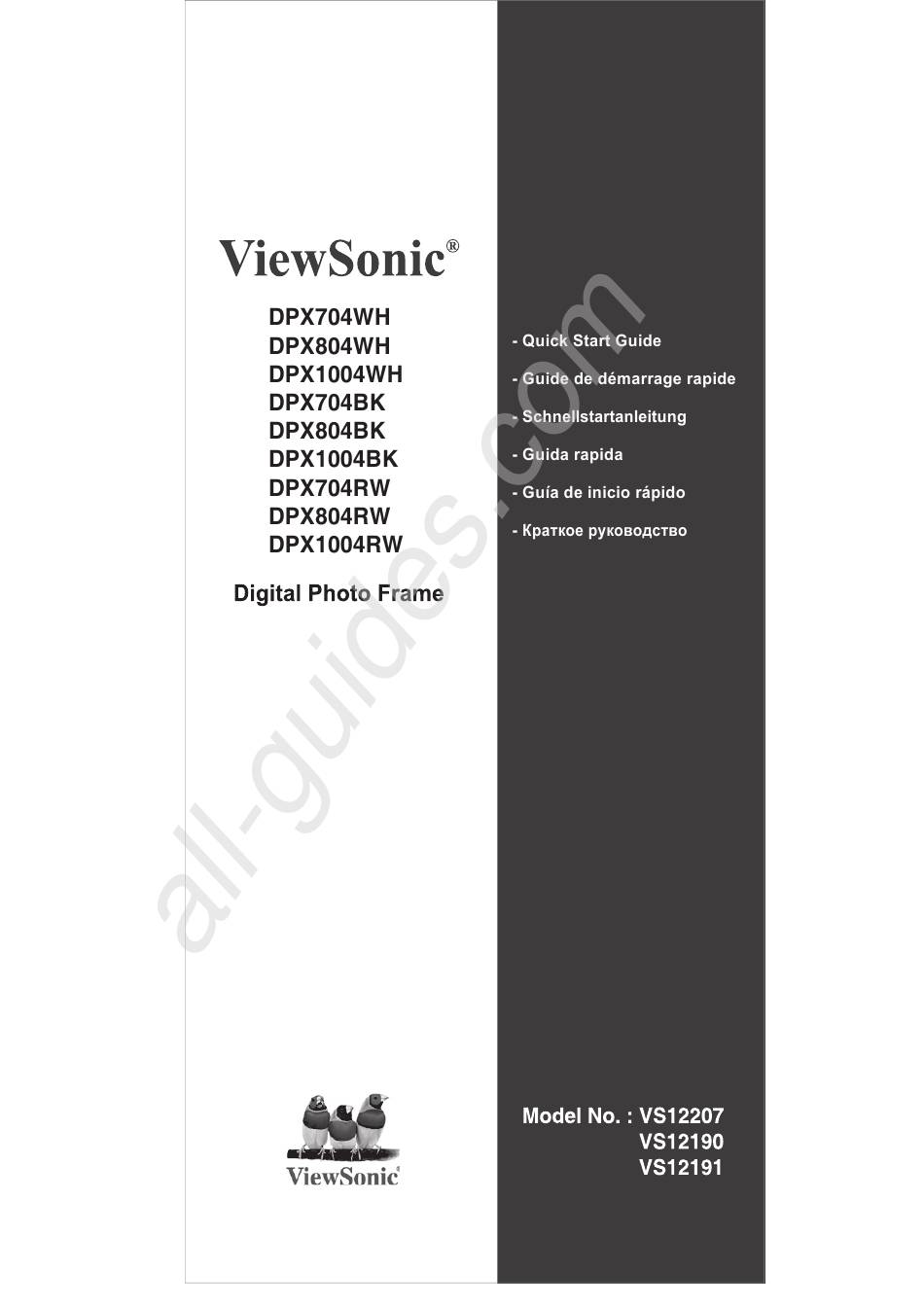

- Page 1 All manuals and user guides at all-guides.com...
-
Page 2: Compliance Information
All manuals and user guides at all-guides.com Compliance Information FCC Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Important Safety Instructions
All manuals and user guides at all-guides.com Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this unit near water. Clean with a soft, dry cloth. If still not clean, see “Cleaning the Display” in this guide for further instructions. -
Page 4: Declaration Of Rohs Compliance
All manuals and user guides at all-guides.com Declaration of RoHS Compliance This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed... -
Page 5: Package Contents
All manuals and user guides at all-guides.com Package Contents • Digital Photo Frame • Remote Control • Power Adapter • Quick Start Guide • USB Cable (Optional) Actual Identifying the Parts Concentration <0.1% <0.1% <0.01% <0.1% <0.1% <0.1% IR Sensor CF Card Slot Power button xD/SD/MMC/MS Card Slot... -
Page 6: Getting Prepared
Portrait display Powering it on Connect the device to a power source Press to turn on the digital photo with the supplied power adapter. frame. • Power Adapter Output: 12Vdc, 0.8A (DPX704WH/DPX804WH/DPX704BK/DPX804BK/ DPX704RW/DPX804RW); 12Vdc, 1.25A (DPX1004WH/DPX1004BK/DPX1004RW) • Operating Temperature: 0°C~40°C. -
Page 7: Operation
All manuals and user guides at all-guides.com Operation Use MODE to bring up the function bar. to move to the desired mode; press to confirm. Saterday Clock Calendar Photo Music Video Slideshow Browser Setup Mode Mode Mode Mode Mode +Music Mode Mode Clock Mode... -
Page 8: Music Mode
All manuals and user guides at all-guides.com Music Mode Play songs Title : Lovin’Each Day Artist : Ronan Keating Album : 10 Years Of Hits • To adjust the volume, press Year : 2004 Sample Rate : 44.1KHZ • To mute the music, press Channels : 2 Bitrate : 128Kbps File Size : 3347KB... -
Page 9: Browser Mode
All manuals and user guides at all-guides.com Slideshow + Music Mode Display photos one by one, together with background music • To enlarge the photo, press • To rotate the photo clockwise, press • To adjust the volume, press • To mute the music, press 800 x 600 To apply various settings for the selected photo, press . -
Page 10: Connecting To External Devices
All manuals and user guides at all-guides.com Connecting to External Devices Mass Storage 1. Power on the photo frame. 2. Connect the photo frame to computer’s USB port with USB cable. 3. The photo frame now functions as a card reader. •... - Page 11 All manuals and user guides at all-guides.com...
- Page 12 All manuals and user guides at all-guides.com...
