ORVIS CLEARWATER LARGE ARBOR CASSETTE Manual

INTRODUCTION

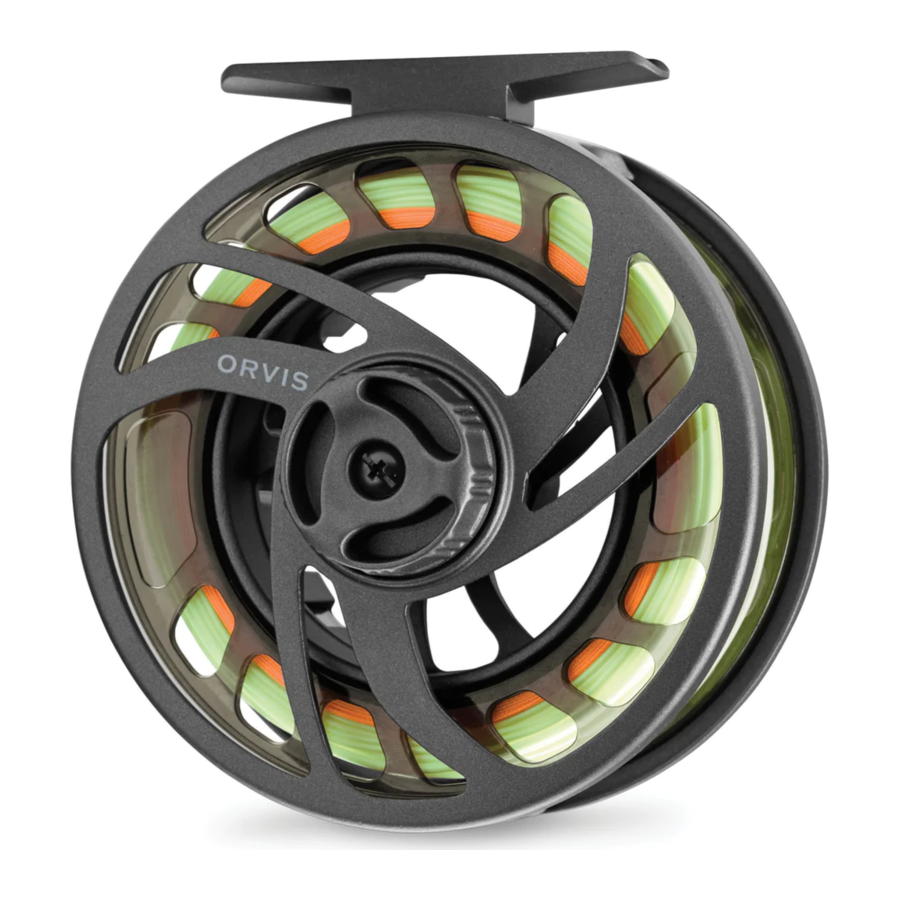

Finally, a die-cast aluminum large arbor lightweight enough to balance properly with your favorite rod. Two years in design and development resulted in a powerful disc drag that can hold its own with high-performance machined reels.

• Large arbor spool design
• Inline disc drag
• Easily converted to either left- or right-hand retrieve
• Positive click drag knob for consistent settings every time
• Offered in a IV cassette version (6-8wt. lines)

1. Frame
2. Main Shaft Nut
3. Pressure Plate
4. Drag Washer
5. Friction Plate
6. Main Shaft
7. O-Ring
8. Push Pin
9. Push Plate
10. O-Ring

11. Drag Knob
12. Drag Knob Clicker
13. Clicker Spring
14. Drag Knob Screw
15. Spindle Clicker
16. Clicker Spring
17. Drag Spindle
18. Clutch Bearing
19. Keyed Bush
20. Clicker Plate

21. Spool
22. Spool Bush
23. Spool Cap
24. Spool Retainer
25. Retainer Spring
26. Spool Cap Screw
27. Handle Knob
28. Handle Shaft
29. Handle Washer
30. Handle Shaft Screw

31. Counter Weight
32. Counter Weight Screw
33. Foot
34. Foot Screw
35. Cassette
36. O-Ring

FIGURE 1

The Clearwater Large-Arbor Cassette features a dependable center line drag system. To adjust the drag, turn the knob (FIGURE 1) clockwise to increase resistance, and counterclockwise to decrease it. The minimum drag setting should never be less than the pressure required to prevent over-running of the line on fast runs. Additional drag may be applied by palming the spool rim with your fingers or palm. The easy drag adjustment is infinitely variable, providing wide-ranging and controllable settings.

The spool release is located in the middle of the reel spool. To remove, depress the spool release latch while simultaneously lifting the spool out of the reel body.

FIGURE 2

Clearwater Large-Arbor Reels have the drag factory installed for left-hand wind (FIGURE 2). To change your reel to right-hand wind, remove spool, pull the keyed bush and clicker plate assembly (PART #19 & #20) off the spindle. Flip the clutch bearing (PART #18) and reassemble.

To remove the cassette, remove the spool, and with your thumbs depress the two knurled sections to push the spool away from the spool.

Your new Clearwater Large-Arbor Cassette Reel has been properly lubricated prior to shipping. However, it should be cleaned and lubricated after extensive use or after contact with dirt or sand. Your reel should receive routine cleaning and maintenance at least twice each year. Lightly lubricate all moving components—handle, center spindle, and gear shaft with Penn reel lube, which is available in tackle shops. Do not put the reel away wet, or into a wet reel case or tackle box. For extended storage, remove both line and backing and loosen the drag.

GUARANTEE

Your Clearwater Large Arbor Cassette is unconditionally guaranteed against defects in materials and workmanship. Damaged reels can be repaired on an individual basis for a reasonable fee, and we do offer a reel cleaning and reconditioning service. Visit orvis.com/reelrepair for more information.

QUESTIONS?
If you have any questions about the operation and maintenance of your new reel, Orvis Technical Advisors are always available.

E-mail: info@orvis.com
Phone: 1-800-778-4778

THE ORVIS COMPANY ORVIS.COM/FLYFISHING
MADE IN CHINA
